Technical Overview

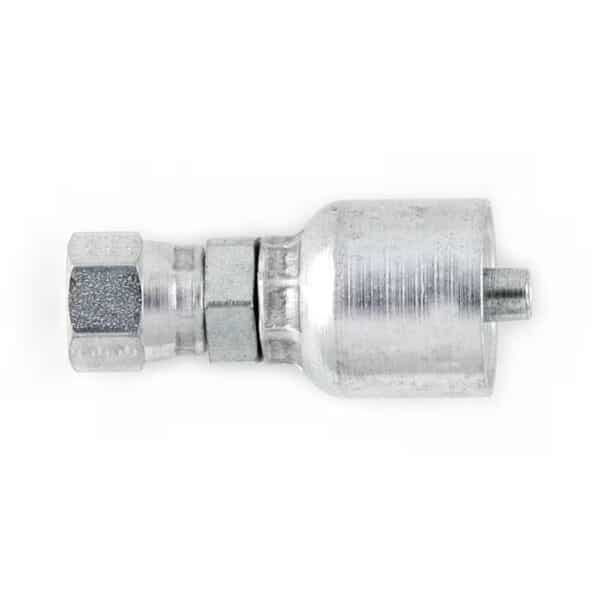

The Parker 10643-16-16 is a high-quality female JIC 37° swivel fitting from the renowned 43 Series. Designed for use in hydraulic systems, this fitting features a permanent crimp design that allows for quick assembly with Parker’s Parkrimp crimpers. The unique No-Skive technology eliminates the need to remove the outer cover of the hose, significantly reducing the risk of premature hose failure caused by incorrect skiving.

Constructed from durable steel, the Parker 43 Series fittings ensure longevity and reliable performance in various hydraulic applications. This fitting is specially plated to be Chromium-6 free, aligning with modern environmental standards.

Specifications

• Part Number: 10643-16-16
• Material: Steel
• Fitting Type: Female JIC Swivel
• Connection Angle: 37°
• Size: 1 Inch
• Weight: 0.92 lbs

Features and Benefits

• Permanent crimp design for quick and reliable assembly.
• No-Skive technology eliminates chances of hose damage.
• Chromium-6 free plating for environmental compliance.
• Robust steel construction ensures durability in harsh conditions.
• Compatibility with Parker hydraulic braided, light spiral, specialty, suction, and return hoses.
• Made in USA for guaranteed quality.

Applications

• Hydraulic systems in construction machinery.
• Automotive applications requiring hydraulic components.
• Industrial machinery requiring reliable fluid connections.
• Pneumatic applications using hydraulic technology.

Quality and Certification

The Parker 10643-16-16 fitting adheres to the rigorous quality standards established by Parker. Each fitting undergoes thorough testing to ensure it meets or exceeds industry specifications, contributing to an extended service life and reliable performance in the field.
