Technical Overview

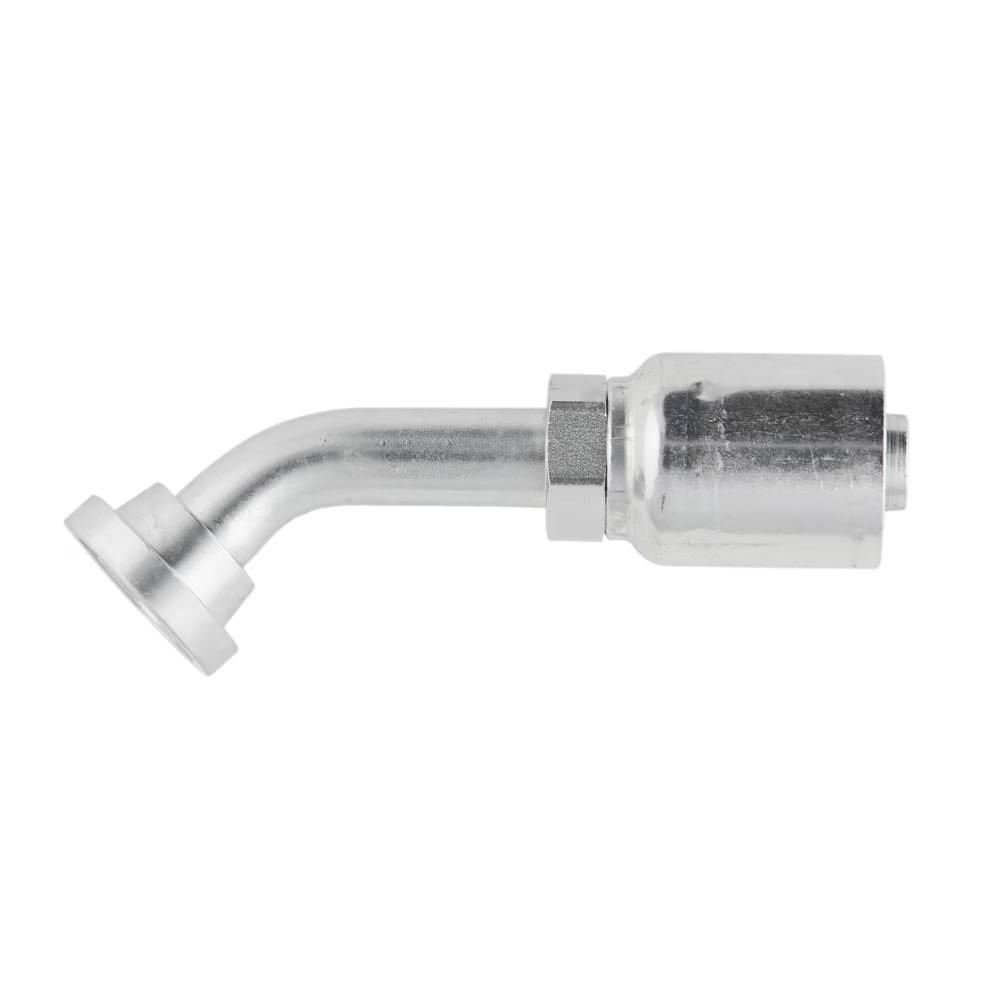

The Parker 11743-20-20 is a high-quality 43 Series elbow fitting designed for SAE Code 61 specifications. It features a 1 1/4 inch flange head with a 45° angle, allowing for efficient flow management in hydraulic systems. This crimp-style fitting offers a permanent solution without the complications of skiving, reducing the risk of premature hose failure.

Constructed from durable steel and featuring Chromium-6 free plating, this fitting ensures longevity and compliance with safety standards. Ideal for use with Parker’s No-Skive hoses, it enables rapid assembly without removing the outer cover, thus providing reliable connections in demanding applications.

Specifications

• Part Number: 11743-20-20
• Series: 43 Series
• Type: SAE Code 61 Flange Head Elbow
• Connection Size: 1 1/4 Inch
• Angle: 45 Degrees
• Weight: 1.42 lbs
• Material: Steel
• Plating: Chromium-6 free

Features and Benefits

• Allows quick and efficient assembly with Parker’s Parkrimp crimpers
• No-Skive technology prevents premature hose failure
• High-quality steel construction for strength and durability
• Designed for use with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return hoses
• Made in USA under strict manufacturing standards

Applications

• Hydraulic systems in construction and industrial machinery
• Oil and gas applications
• Agricultural equipment
• Marine systems
• General hydraulic applications requiring reliable fluid connections

Quality and Certification

The Parker 11743-20-20 fitting meets Parker’s high quality standards, ensuring effective performance in various applications. Its construction adheres to stringent industry certifications and testing procedures, guaranteeing reliability.
