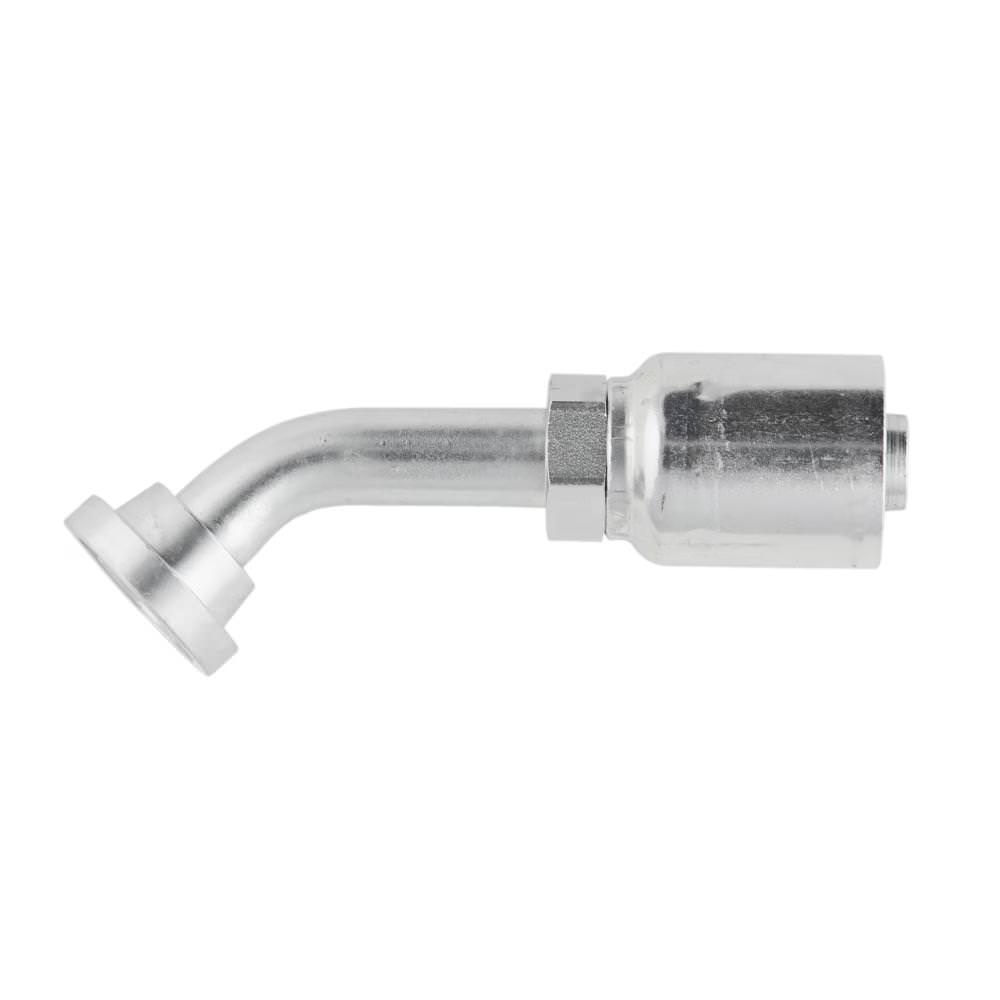

High-quality Parker 43 Series sae code 61 flange head-45° elbow. Made from steel.
| Weight | 2.46 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Manufacturer | Parker |
| Fitting Parker Group | Fluid Connector |
| Fitting Parker Division | Hose Products |
| Fitting Series | 43 |
| Fitting Material | Steel |
| Fitting Measurement System | Inch |
| Fitting Inner Diameter | 1.5 Inch |
| Fitting End Connection | 2 Inch |
| Fitting Configuration | 45° Elbow |
Technical Overview
The Parker 43 Series 11743-32-24 is a premium quality hydraulic fitting designed for reliable performance in high-demand industrial applications. This permanent (crimp) style fitting features a 45° elbow with a 2-inch flange head, allowing for quick assembly with Parker’s family of Parkrimp crimpers. The innovative No-Skive assembly method eliminates the need for removing the outer cover of the hose, preventing premature hose failure due to improper skiving.
Specifications
- Part Number: 11743-32-24
- Material: Steel with Chromium-6 Free Plating
- Type: Flange Head 45° Elbow
- Size: 2 Inch
- Weight: 2.46 lbs
Features and Benefits
- Quick and easy assembly with No-Skive hose and fittings
- Eliminates the risk of premature hose failure
- Chromium-6 free plating designed for safety and compliance
- Optimized for Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses
- Made in USA to ensure high quality and manufacturing standards
Applications
- Industrial hydraulic systems
- Agricultural machinery
- Construction equipment
- Repair and maintenance applications
- Fluid transfer and management systems
Quality and Certification
The Parker 43 Series fittings, including the 11743-32-24 elbow, are manufactured under stringent quality control processes that meet or exceed industry standards. These fittings are designed to provide long-lasting performance and reliability in hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937.
Parker 43 Series SAE Code 61 Flange Head-45° Elbow – 2 Inch
$225.22
In stock
No sales tax
Expected delivery Sep 10 - Sep 14
Dropped right in. No leaks, no fuss.
Needed this to reroute a hose on a loader and the 45 degree angle made all the difference for clearance. Recieved it quicker than I thought and it went together perfect.
Fitment was fine and it hasn't leaked, but the finish on mine had a couple rough spots around the flange face that I had to clean up before install. Works, just not as clean out of the box as I'd expect from Parker. Maybe a one-off.
exactly as described
Fit right up and sealed no problem on the first try. Only reason I'm not giving it top marks is the lead time was a little longer than I expected, but the part itself is exactly what I needed for the excavator return line.
