Technical Overview

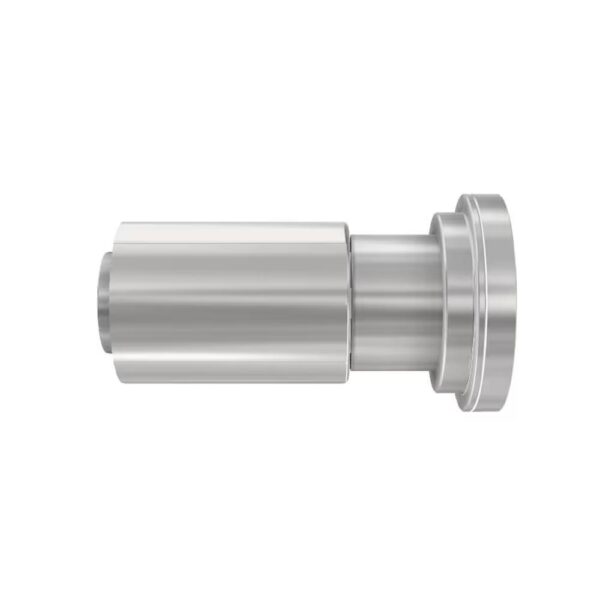

The Parker 77 Series 16A77-20-16 is a premium quality SAE Code 62 flange head fitting designed for use with Parker’s hydraulic spiral hoses. This crimp style fitting allows for quick and secure assembly using Parker’s Parkrimp crimpers, making it an essential component for any hydraulic system requiring reliable performance and efficiency.

One of the standout features of the 77 Series fitting is its No-Skive assembly feature, which eliminates the need to remove the outer cover of the hose during installation. This innovation not only simplifies the assembly process but also protects against premature hose failure typically caused by improper skiving.

Specifications

• Part Number: 16A77-20-16
• Material: Steel with zinc dichromate plating
• Type: SAE Code 62 Flange Head, Straight
• Size: 1 1/4 Inch
• Weight: 1.23 lbs
• Compatible Hose Series: Parker Hydraulic Spiral Hose

Features and Benefits

• Quick and easy assembly with Parkrimp crimpers
• No-Skive technology prevents premature hose failure
• Durable zinc dichromate plated steel construction for corrosion resistance
• Designed specifically for high-performance hydraulic applications
• Made in USA under strict quality standards

Applications

• Hydraulic systems in industrial machinery
• Construction equipment and vehicles
• Agricultural machinery
• Material handling and processing
• Aerospace and automotive applications

Quality and Certification

This Parker fitting is manufactured in compliance with stringent industry standards, ensuring reliability and performance in demanding environments. Parker products undergo rigorous testing procedures to meet quality assurance benchmarks, providing peace of mind for users in critical applications.
