Technical Overview

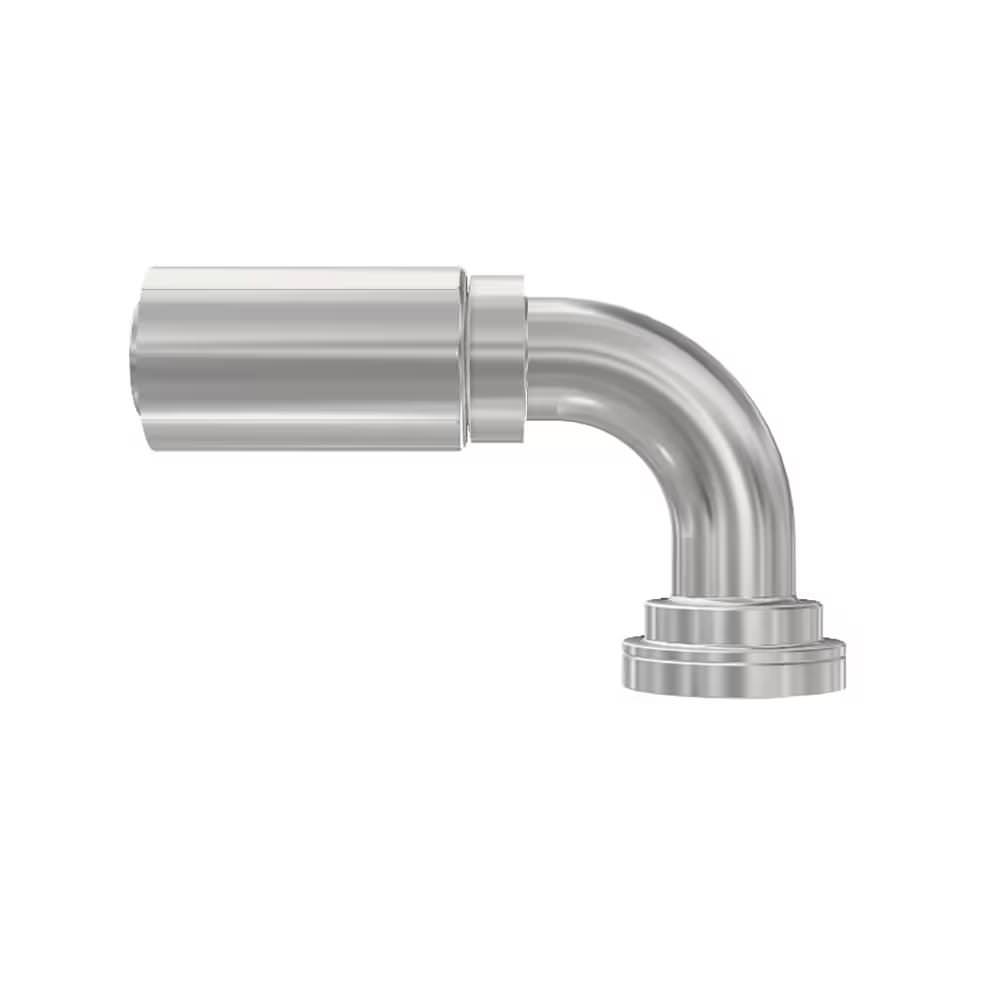

The Parker 77 Series fitting, part number 16N77-24-24, is a high-quality, durable fitting designed for SAE Code 62 applications. This 90° elbow flange head fitting is manufactured with precision and engineered for optimal performance in hydraulic systems. With a crimp style assembly, it allows for quick and efficient installation without the need for skiving the hose, significantly reducing the risk of premature hose failure.

Constructed from robust steel and finished with zinc dichromate plating, this fitting ensures excellent resistance against corrosion and wear, making it suitable for demanding working environments.

Specifications

• Part Number: 16N77-24-24
• Product Series: 77 Series
• Type: 90° Elbow Flange Head
• Fitting Standard: SAE Code 62
• Material: Steel with Zinc Dichromate Plating
• Weight: 4.14 lbs

Features and Benefits

• Designed for quick assembly using Parkrimp crimpers
• No skive required, preventing premature hose failure
• Durable zinc dichromate plating for enhanced corrosion resistance
• Ideal for use with Parker Hydraulic Spiral Hose
• Made in USA under stringent quality control standards

Applications

• Hydraulic machinery and equipment
• Construction and agricultural applications
• Industrial machinery lubrication systems
• Oil and gas industry hydraulic systems

Quality and Certification

This fitting adheres to Parker’s rigorous quality standards and is manufactured to meet the necessary compliance benchmarks required for high-performance hydraulic applications. The use of high-quality materials and advanced manufacturing processes ensures reliability and longevity in various operating environments.
