Bosch Rexroth R986110076 (Series 31*) is a reliable OEM replacement for CAT 219-1965, built to match fit and deliver consistent hydraulic performance under demanding duty cycles.
Technical Specifications
Flow Performance
With a 110 cc displacement, the R986110076 provides predictable output per revolution for stable machine response and repeatable control. Its design supports consistent flow delivery across operating speeds up to 2200 RPM, helping maintain dependable performance in continuous operation.
Efficiency & Durability
Rated for 3600 PSI nominal pressure and 4600 PSI peak pressure, this unit is engineered to maintain performance under high-load conditions without sacrificing stability. Maximum speed capability of 2200 RPM supports reliable operation while sustaining output consistency within the Series 31* platform.
Installation
Designed as a direct OEM replacement for CAT 219-1965, the R986110076 is intended to install with standard mounting interfaces and connections. It is a drop-in fit that does not require modifications when replacing the original component.
Features and Benefits
- 110 cc displacement: Delivers consistent output per revolution for predictable hydraulic response and repeatable machine operation.
- 3600 PSI nominal / 4600 PSI peak pressure capability: Supports high-load operation with controlled performance during transient peak-pressure events.
- 2200 RPM maximum speed rating: Maintains dependable flow delivery at higher operating speeds to support stable cycle times.
Operational Information
Optimized for reliable hydraulic operation up to 3600 PSI nominal (4600 PSI peak) and speeds up to 2200 RPM. Use within the machine’s established hydraulic fluid and temperature management practices to maintain consistent performance and service reliability.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 88.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2200 |
| Pumps Max Speed | 2200 |
| Pumps Displacement | 110cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986110076, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
Questions? Call our specialists: (800) 823-4937 | Monday-Friday, 7 AM – 5 PM MST
Compatibility & Applications
Direct Replacement Information
This Rexroth R986110076 replaces CAT 219-1965 in closed-loop and open-circuit hydrostatic drive and hydraulic power applications.
- Hydraulic systems requiring 110cc displacement variable-flow control
- Circuits operating at 3600 PSI nominal pressure with variable demand
- Axial piston variable pump circuits for hydrostatic transmissions, implement hydraulics, and auxiliary work functions up to 2200 max speed
Common Applications
This Bosch Rexroth R986110076 is commonly used in:
- construction and earthmoving equipment
- industrial hydraulic power units (HPUs) and other hydraulic pumps applications
- material handling machinery
Important: Verify mounting pattern, shaft configuration, rotation, control type, and porting match the existing CAT 219-1965 installation and system requirements.
Product Selection Guide
These Bosch Rexroth 31* components share the same nominal pressure class, so selection is primarily driven by displacement (flow per revolution) and allowable speed for your duty cycle.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986110076 | 110cc | 3600 PSI | 2200 | 31* |
| R986111115 | 100cc | 3600 PSI | 2300 | 52/53 |
| R986110039 | 63cc | 3600 PSI | 2600 | 53 |
| R986110083 | 110cc | 3600 PSI | 2200 | 31* |
| R986111651 | 60cc | 3600 PSI | 2600 | 52 |
Key Differences
Displacement
R986110076 and R986110083 are 110cc options for higher flow per revolution, while R986111115 (100cc) and the 63cc/60cc models (R986110039/R986111651) reduce flow for applications needing finer control or lower output per rev.
Pressure Rating
All compared models list 3600 PSI nominal pressure, so pressure rating is not a differentiator within this group; confirm your system’s required nominal pressure aligns with 3600 PSI and note that R986110076 also lists a 4600 PSI peak capability.
Speed
Maximum speed varies across the group: R986110076 and R986110083 are 2200, R986111115 is 2300, and the 63cc/60cc models are 2600—choose based on the maximum operating speed your system will see.
Quick Selection Guide
Choose: R986110076
Because: When you need 110cc displacement with 3600 PSI nominal pressure, 4600 PSI peak pressure capability, and a 2200 max speed rating in a 31* series component.
Choose: R986110083
Because: When you need the same 110cc displacement, 3600 PSI nominal pressure, and 2200 max speed as the current unit, but are cross-referencing an alternate 31* part number.
Choose: R986111115
Because: When a slightly lower displacement (100cc) is preferred while staying at 3600 PSI nominal pressure, and you need a higher listed max speed than 2200 (2300).
Choose: R986110039 or R986111651
Because: When you need significantly lower displacement (63cc or 60cc) at the same 3600 PSI nominal pressure and want a higher listed max speed (2600) compared with the 110cc options.
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation, and confirm displacement, nominal pressure, peak pressure requirements, and max speed align with your system.
For application-specific guidance on piston pumps and system integration, contact our technical team.

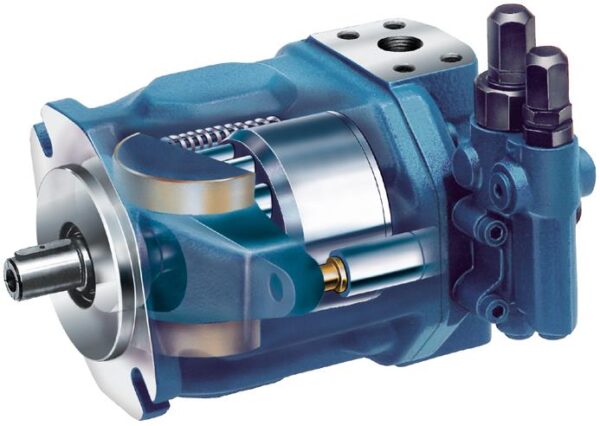

Bosch Rexroth R986110076 Axial Piston Variable Pump | Replaces CAT 219-1965 | 110cc | 3600 PSI
$5,699.00
