Bosch Rexroth R986110713 (Series 52/53) is a reliable OEM replacement for CAT 245-8998, built to match fit and hydraulic performance for dependable operation.
Technical Specifications
Flow Performance
With a 74 cc displacement, the R986110713 delivers consistent hydraulic output per revolution to support stable machine response across operating speeds. Rated for up to 2600 max speed, it maintains predictable flow characteristics under continuous duty. The Series 52/53 design supports repeatable performance to help reduce variability in system behavior over time.
Efficiency & Durability
Designed for demanding hydraulic loads, the unit is rated to 3600 PSI nominal pressure with 4600 PSI peak pressure capability to handle transient spikes without compromising operation. Operation up to 2600 max speed supports reliable performance across a broad duty range. These pressure and speed limits help maintain output stability and component life in high-load cycles.
Installation
Engineered as a direct replacement for CAT 245-8998, the R986110713 is intended to match OEM interface requirements for straightforward installation. It is designed to fit without modifications when replacing the specified OEM component.
Features and Benefits
- 74 cc displacement: Provides consistent output per revolution for predictable hydraulic response and repeatable system performance.
- 3600 PSI nominal / 4600 PSI peak pressure rating: Supports reliable operation under sustained load and tolerates short-duration pressure spikes within the specified limits.
- 2600 max speed capability: Maintains stable operation across higher operating speeds to support continuous-duty performance within rated conditions.
Operational Information
Operate within the specified limits of 3600 PSI nominal, 4600 PSI peak, and up to 2600 max speed to support reliable service life and consistent performance. System operating conditions should be controlled to maintain stable hydraulic behavior and reduce stress during peak events.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 48.5 lbs |
|---|---|
| Dimensions | 15 × 15 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2600 |
| Pumps Max Speed | 2600 |
| Pumps Displacement | 74cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Compatibility & Applications
Direct Replacement Information
This Rexroth R986110713 replaces CAT 245-8998 in mobile hydraulic pump applications.
- Systems requiring 74cc displacement variable flow for load-sensing or pressure-compensated circuits
- Applications with 3600 PSI nominal operating pressure in closed-center hydraulic systems
- Axial piston variable pump circuits powering implement hydraulics, steering, and auxiliary functions up to 2600 max pump speed—see related piston pumps for similar configurations
Common Applications
This Bosch Rexroth R986110713 is commonly used in:
- mobile hydraulics
- construction equipment
- earthmoving and material handling equipment
- agricultural machinery
- industrial hydraulic power units (HPU)
Important: Verify mounting pattern, shaft type, rotation, control configuration, and port locations match the existing CAT 245-8998 installation.
Product Selection Guide
Within the 52/53 series, R986110713 matches the 74cc/3600 PSI/2600 speed class, while nearby options mainly vary by displacement (71cc, 74cc, or 100cc) and maximum speed (2600 vs 2300).
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986110713 | 74cc | 3600 PSI | 2600 | 52/53 |
| R986111376 | 100cc | 3600 PSI | 2300 | 52/53 |
| R986110971 | 74cc | 3600 PSI | 2600 | 52/53 |
| R986110677 | 100cc | 3600 PSI | 2300 | 52/53 |
| R986110609 | 71cc | 3600 PSI | 2600 | 52/53 |
Key Differences
Displacement
R986110713 is 74cc; comparable options include 74cc (R986110971), 71cc (R986110609), and 100cc (R986111376, R986110677). Choose 100cc when you need higher displacement than 74cc; choose 71cc when you need slightly lower displacement than 74cc.
Pressure Rating
All listed comparison models show 3600 PSI nominal pressure, matching R986110713; ensure your system requirements align with the 3600 PSI nominal rating and the 4600 PSI peak rating of R986110713.
Speed
R986110713 is rated to 2600 max speed, matching the 74cc and 71cc options (R986110971 and R986110609), while the 100cc options listed are rated to 2300—choose based on whether your duty cycle requires 2600 vs 2300.
Quick Selection Guide
Choose: R986110713
Because: When you need 74cc displacement with 3600 PSI nominal pressure and 2600 max speed in the 52/53 series.
Choose: Higher displacement model
Because: Choose R986111376 or R986110677 when you need 100cc displacement (higher than 74cc), noting these options list 2300 max speed.
Choose: Lower pressure model
Because: None of the listed alternatives are rated below 3600 PSI; select a lower-pressure option only if you have a model with a lower stated pressure rating that still meets your system requirements.
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation.
For application-specific guidance, contact our technical team. If you’re comparing options across our broader hydraulic pumps selection, we can help confirm fit and control configuration.
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986110713, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification (including related models like R986111250 when you need help matching pump series and controls)
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
Questions? Call our specialists: (800) 823-4937 | Monday-Friday, 7 AM – 5 PM MST

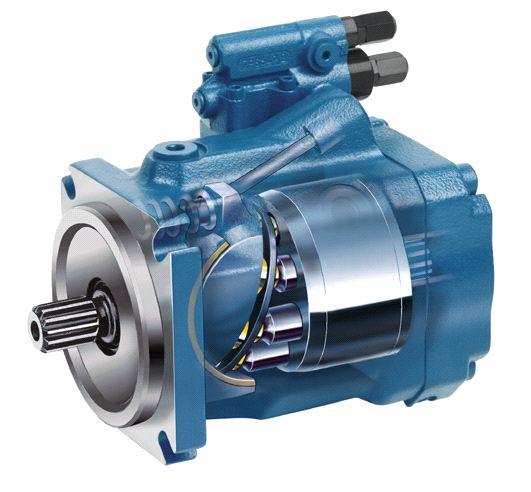

Bosch Rexroth R986110713 Axial Piston Variable Pump | Replaces CAT 245-8998 | 74cc | 3600 PSI
