Bosch Rexroth R986110806 (Series 31*) is a reliable OEM replacement for CAT 416-8986, built to maintain OEM-fit compatibility and consistent hydraulic performance under demanding duty cycles.
Technical Specifications
Flow Performance
With a 110 cc displacement, the R986110806 delivers stable, predictable output per revolution for consistent actuator response. Its design supports dependable flow performance up to a maximum speed of 2200 rpm, helping maintain steady system behavior in continuous operation.
Efficiency & Durability
Rated for 3600 PSI nominal pressure and 4600 PSI peak pressure, this unit is engineered to sustain performance through high-load events without compromising operational stability. Reliable operation is maintained across its speed capability up to 2200 rpm, supporting consistent hydraulic output under variable demand.
Installation
Configured as a direct OEM replacement for CAT 416-8986 for straightforward integration and OEM-fit alignment. Installs without modifications when replacing the original component in the same mounting location.
Features and Benefits
- 110 cc displacement: Provides consistent volumetric output per revolution for predictable hydraulic response.
- 3600 PSI nominal / 4600 PSI peak pressure capability: Supports sustained high-pressure operation and tolerates short peak events to help prevent performance drop during load spikes.
- 2200 rpm maximum speed: Maintains dependable flow capability across operating speeds up to 2200 rpm for stable system performance.
Operational Information
Designed for reliable operation in hydraulic systems up to 3600 PSI nominal and 4600 PSI peak, with rotational speeds up to 2200 rpm. Operating conditions should remain within the host system’s established limits to preserve consistent performance.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 88.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2200 |
| Pumps Max Speed | 2200 |
| Pumps Displacement | 110cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Product Selection Guide
Within the 31* series, these part numbers primarily differ by displacement and allowable speed while maintaining the same nominal pressure rating, so selection is driven by required flow and operating RPM.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986110806 | 110cc | 3600 PSI | 2200 | 31* |
| R986111159 | 100cc | 3600 PSI | 2300 | 52/53 |
| R986110061 | 74cc | 3600 PSI | 2600 | 52/53 |
| R986110054 | 45cc | 3600 PSI | 2600 | 52/53 |
| R986111250 | 45cc | 3600 PSI | 2600 | 52/53 |
Key Differences
Displacement
R986110806 is 110cc (highest flow per revolution among those listed), while R986111159 is 100cc and R986110061 is 74cc; R986110054 and R986111250 are 45cc options for lower flow needs where a smaller displacement is acceptable.
Pressure Rating
All compared models list 3600 PSI nominal pressure, so pressure-based selection is mainly about confirming your system matches that rating; note that only R986110806 includes a stated 4600 PSI peak pressure in the provided specs.
Speed
Maximum speed varies: R986110806 is 2200, R986111159 is 2300, and the 74cc and 45cc options are 2600, which can matter if your prime mover or duty cycle requires higher allowable RPM.
Quick Selection Guide
Choose: R986110806
Because: When you need 110cc displacement with 3600 PSI nominal pressure and a listed 4600 PSI peak pressure, and your operating speed stays within 2200 max.
Choose: Higher displacement model
Because: When required flow per revolution must be higher than 110cc (confirm against available 31* options not shown here).
Choose: Lower pressure model
Because: When your system operates below 3600 PSI nominal and a different pressure-rated option is acceptable (none of the listed comparison parts are lower than 3600 PSI nominal).
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation. If you’re comparing other piston pumps in the same equipment family, confirm control type and rotation direction as well.
For application-specific guidance, contact our technical team.
Compatibility & Applications
Direct Replacement Information
This Bosch Rexroth R986110806 replaces CAT 416-8986 in high-pressure mobile hydraulic system applications.
- Closed-loop or open-loop hydraulic systems requiring 110cc variable displacement
- Circuits operating at 3600 PSI nominal pressure (with appropriate system relief settings)
- Hydrostatic drive, implement, and auxiliary hydraulic circuits where variable flow control is required
- Applications up to 2200 RPM maximum pump speed
Common Applications
This Bosch Rexroth R986110806 is commonly used in:
- construction equipment
- agricultural machinery
- industrial machinery
- material handling equipment
- mobile hydraulic pumps and power units
Important: Verify mounting interface, shaft specifications, porting, control type, and rotation direction match the existing CAT 416-8986 installation before installation. If you need to cross-check similar CAT replacement options, compare against R986110076 where applicable.
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986110806, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification (including alternatives like R986110083 when a different configuration is required)
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
Questions? Call our specialists: (800) 823-4937 | Monday-Friday, 7 AM – 5 PM MST

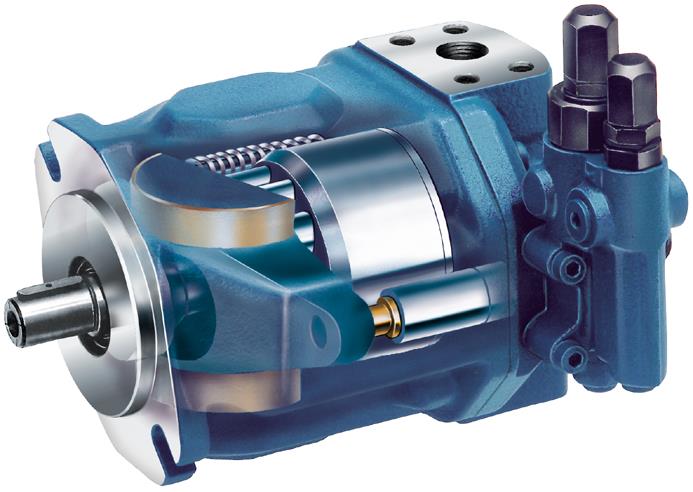

Bosch Rexroth R986110806 Axial Piston Variable Pump | Replaces CAT 416-8986 | 110cc | 3600 PSI
