Bosch Rexroth R986111013 (Series 31*) is a reliable OEM replacement for CAT 373-6630, built to maintain compatible fit and consistent hydraulic performance in demanding duty cycles.
Technical Specifications
Flow Performance
With a 110 cc displacement, the R986111013 delivers predictable volumetric output per revolution for stable actuator control and repeatable machine response. Its flow capability is supported up to a maximum speed of 2200, helping maintain consistent performance across typical operating ranges. The Series 31* design is intended for dependable operation where steady output and uptime are priorities.
Efficiency & Durability
Rated for 3600 PSI nominal pressure and 4600 PSI peak pressure, this unit is designed to sustain pressure loads while maintaining consistent output. Operation up to 2200 max speed supports reliable performance under varying cycle demands. The 88 weight reflects a robust build suited for continuous service in high-load hydraulic systems.
Installation
Designed as a direct OEM replacement for CAT 373-6630, the R986111013 installs with OEM-fit compatibility and is intended to require no modifications. Maintain standard cleanliness and alignment practices during mounting to preserve expected performance.
Features and Benefits
- 110 cc displacement: Provides consistent volumetric output per revolution for stable, repeatable hydraulic response.
- 3600 PSI nominal / 4600 PSI peak pressure capability: Supports reliable operation under high working pressures and transient load spikes without sacrificing control consistency.
- 2200 maximum speed rating: Maintains dependable performance across higher operating speeds, supporting responsive system behavior during demanding cycles.
Operational Information
Operate within the stated 3600 PSI nominal and 4600 PSI peak pressure limits and up to 2200 max speed to support long-term reliability. Use standard hydraulic fluid temperature control and filtration practices appropriate for OEM hydraulic systems to help maintain consistent performance.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 88.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2200 |
| Pumps Max Speed | 2200 |
| Pumps Displacement | 110cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Product Selection Guide
These 31* components can be compared primarily by displacement (flow per revolution) and allowable speed, since the listed nominal pressure rating is the same across the options. If you’re comparing other hydraulic pumps for similar mobile equipment duty cycles, confirm your system type (open vs. closed loop) and required control configuration.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986111013 | 110cc | 3600 PSI | 2200 | 31* |
| R986111453 | 140cc | 3600 PSI | 2000 | 31* |
| R986110044 | 100cc | 3600 PSI | 2300 | 52/53 |
| R986111344 | 85cc | 3600 PSI | 2500 | 52/53 |
| R986110061 | 74cc | 3600 PSI | 2600 | 52/53 |
Key Differences
Displacement
R986111013 is 110cc; choose higher displacement (e.g., 140cc) when you need more flow per revolution, or lower displacement (100cc, 85cc, 74cc) when you need less flow per revolution and finer control at a given speed. For more options in this style, browse our piston pumps selection.
Pressure Rating
All compared models list 3600 PSI nominal pressure; match your system’s required pressure rating, and note that R986111013 additionally specifies a 4600 PSI peak pressure requirement that should be met by the replacement.
Speed
Maximum speed varies by model (R986111013: 2200; alternatives range from 2000 to 2600), so select a unit that meets or exceeds your operating speed requirements.
Quick Selection Guide
Choose: R986111013
Because: When you need 110cc displacement with 3600 PSI nominal pressure, 4600 PSI peak pressure capability, and up to 2200 max speed.
Choose: Higher displacement model
Because: When flow requirements exceed what a 110cc unit can provide at your available operating speed (e.g., consider R986111453 at 140cc, noting its listed max speed is 2000).
Choose: Lower pressure model
Because: When system operates at lower pressures for cost savings.
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation, and confirm the replacement meets both nominal and any required peak pressure and speed limits for your system.
For application-specific guidance, contact our technical team.
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986111013, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
Questions? Call our specialists: (800) 823-4937 | Monday-Friday, 7 AM – 5 PM MST
Compatibility & Applications
Direct Replacement Information
This Rexroth R986111013 replaces CAT 373-6630 in closed-loop and open-loop hydraulic system applications. If you’re also evaluating adjacent CAT cross references, compare related options like R986110076 when matching mounting and control requirements.
- Hydraulic systems requiring 110cc variable displacement pump output
- Circuits operating at 3600 PSI nominal pressure (high-pressure implement and drive functions)
- Mobile hydraulic power units and pump-controlled actuator circuits where up to 2200 RPM pump speed is required
Common Applications
This Bosch Rexroth R986111013 is commonly used in:
- construction equipment (excavators, loaders, dozers)
- mining equipment
- material handling equipment
Important: Verify mounting interface, shaft configuration, port locations, and control type match the existing CAT 373-6630 installation before replacement.

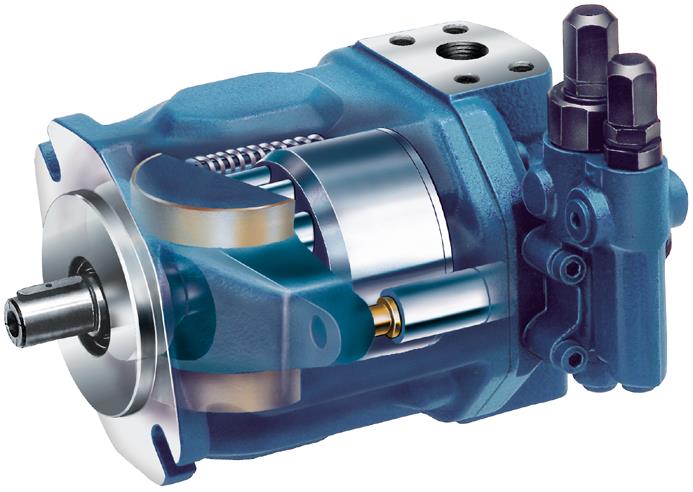

Bosch Rexroth R986111013 Axial Piston Variable Pump | Replaces CAT 373-6630 | 110cc | 3600 PSI
