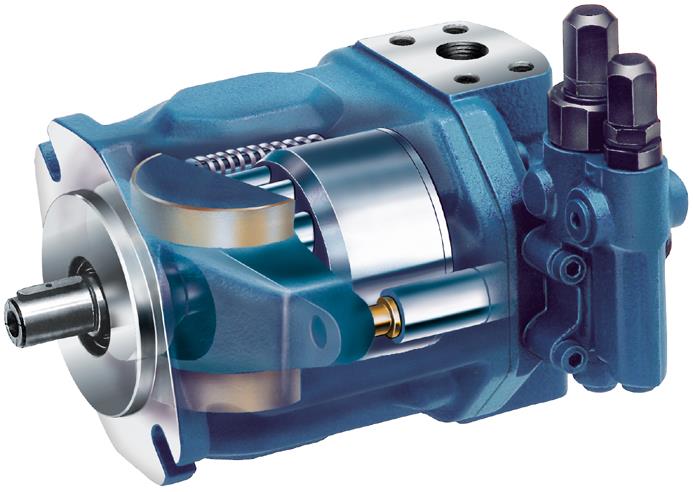

Bosch Rexroth R986111014 (Series 31*) is a reliable OEM replacement for CAT 373-6629, engineered for direct compatibility while maintaining consistent hydraulic performance under demanding duty cycles.
Technical Specifications
Flow Performance
With a 110 cc displacement, the R986111014 delivers predictable, repeatable flow output per revolution to support stable machine response. Its Series 31* design is intended for consistent performance across operating conditions where dependable hydraulic delivery is required.
Efficiency & Durability
Rated for 3600 PSI nominal pressure and 4600 PSI peak pressure, this unit is built to sustain performance under high-load events without compromising operational stability. A maximum speed of 2200 supports reliable operation across a broad working range while maintaining controlled hydraulic output.
Installation
Designed as a direct OEM replacement for CAT 373-6629, the R986111014 installs as an OEM-fit component with no modifications required. Maintain standard mounting and connection practices to preserve intended alignment and hydraulic integrity.
Features and Benefits
- 110 cc displacement: Provides consistent volume per revolution for predictable actuator response and stable machine control.
- 3600 PSI nominal / 4600 PSI peak pressure capability: Supports continuous high-pressure operation and tolerates short peak-load events for reliable performance under demanding cycles.
- 2200 max speed (Series 31*): Enables dependable operation at higher rotational speeds while maintaining consistent hydraulic output characteristics.
Operational Information
Operate within rated limits of 3600 PSI nominal, 4600 PSI peak, and up to 2200 speed to support long-term reliability. The 88 lb assembly is suited for stable mounting in OEM-equivalent hydraulic layouts where consistent performance is expected.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 88.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2200 |
| Pumps Max Speed | 2200 |
| Pumps Displacement | 110cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Product Selection Guide
These 31* components share the same nominal pressure rating, so selection typically comes down to matching displacement and allowable speed to your system’s flow and RPM requirements. If you’re comparing options across our broader hydraulic pumps lineup, keep the same selection logic in mind.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986111014 | 110cc | 3600 PSI | 2200 | 31* |
| R986110941 | 63cc | 3600 PSI | 2600 | 53 |
| R986111395 | 60cc | 3600 PSI | 2600 | 52 |
| R986111618 | 85cc | 3600 PSI | 2500 | 52/53 |
| R986110678 | 45cc | 3600 PSI | 2600 | 52/53 |
Key Differences
Displacement
R986111014 is the highest displacement option listed at 110cc, while the comparison parts range from 45cc to 85cc; higher displacement is typically chosen when you need more flow per revolution, and lower displacement when you need less flow or finer control at a given speed.
Pressure Rating
All compared models list 3600 PSI nominal pressure; R986111014 additionally specifies a 4600 PSI peak pressure, which may matter if your duty cycle includes pressure spikes and the system is designed to accommodate them.
Speed
Maximum speed varies across the list: R986111014 is rated to 2200 max speed, while the other options shown are rated between 2500 and 2600; choose a model whose max speed meets or exceeds your operating RPM.
Quick Selection Guide
Choose: R986111014
Because: When you need 110cc displacement with 3600 PSI nominal pressure and have operating speed requirements up to 2200 max speed (with a specified 4600 PSI peak pressure).
Choose: Higher displacement model
Because: When required displacement (flow per revolution) exceeds 110cc; none of the similar products listed exceed 110cc, so a different part outside this set would be needed.
Choose: Lower pressure model
Because: When your system operates below 3600 PSI nominal; no lower-nominal-pressure options are provided in this comparison set, so confirm pressure requirements and select an appropriate part outside this group if needed.
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation. If you’re sourcing related piston pumps, confirm control type and porting style as well.
For application-specific guidance, contact our technical team.
Compatibility & Applications
Direct Replacement Information
This Rexroth R986111014 replaces CAT 373-6629 in closed-loop and open-loop mobile hydraulic pump drive applications. For additional options from Bosch Rexroth, our team can help cross-reference by machine model and system requirements.
- Hydraulic systems requiring 110cc displacement variable flow control
- Circuits operating at 3600 PSI nominal pressure with variable displacement demand control
- Mobile equipment hydraulic circuits up to 2200 RPM max pump speed, including implement, auxiliary, and travel/propel functions
Common Applications
This Bosch Rexroth R986111014 is commonly used in:
- mobile hydraulics
- construction equipment (also commonly cross-referenced with parts like R986110076 depending on displacement and control configuration)
- mining and quarry equipment
- forestry equipment
- material handling equipment
Important: Verify mounting pattern, shaft type, rotation, control configuration, and porting match the existing CAT 373-6629 installation before installation.
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986111014, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification (including related Rexroth replacements such as R986110083)
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
