Bosch Rexroth R986111319 (Series 31*) is a reliable OEM replacement for CAT 373-6528, delivering compatible 110cc displacement performance for consistent hydraulic operation.
Technical Specifications
Flow Performance
With a 110cc displacement, the R986111319 provides predictable flow output per revolution for stable actuator response and repeatable machine control. Its Series 31* design supports consistent hydraulic performance across duty cycles where reliability and uptime are critical.
Efficiency & Durability
Rated for 3600 PSI nominal pressure and 4600 PSI peak pressure, this unit maintains performance under high-load conditions while supporting reliable pressure handling. A maximum speed of 2200 RPM helps sustain required flow delivery without exceeding operating limits in demanding cycles.
Installation
Designed as a direct OEM replacement for CAT 373-6528, the R986111319 installs with OEM-fit compatibility and requires no modifications. Standard mounting alignment supports straightforward integration into existing hydraulic circuits.
Features and Benefits
- 110cc displacement: Delivers consistent flow per revolution to support repeatable motion control and stable system response.
- 3600 PSI nominal / 4600 PSI peak pressure capability: Supports reliable operation through high-pressure work cycles, including short-duration peak loading.
- 2200 RPM maximum speed: Maintains dependable flow delivery up to 2200 RPM to match system demand without exceeding rated speed limits.
Operational Information
Built for reliable operation in high-pressure hydraulic systems up to 3600 PSI nominal (4600 PSI peak) and speeds up to 2200 RPM. With an 88 lb component weight, it is suited for continuous-duty environments where consistent performance and uptime are required.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 88.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2200 |
| Pumps Max Speed | 2200 |
| Pumps Displacement | 110cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Product Selection Guide
Within the Bosch Rexroth 31* series options shown, R986111319 stands out primarily by its higher displacement, while all compared models share the same nominal pressure rating and differ mainly in speed capability.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986111319 | 110cc | 3600 PSI | 2200 | 31* |
| R986110069 | 60cc | 3600 PSI | 2600 | 52 |
| R986110071 | 28cc | 3600 PSI | 3000 | 52/53 |
| R986111475 | 71cc | 3600 PSI | 2600 | 52/53 |
| R986110581 | 74cc | 3600 PSI | 2600 | 52/53 |
Key Differences
Displacement
R986111319 is 110cc versus 74cc (R986110581), 71cc (R986111475), 60cc (R986110069), and 28cc (R986110071); choose higher displacement when you need more flow per revolution, and lower displacement when you need less flow and potentially finer control at higher speeds.
Pressure Rating
All listed comparison parts show 3600 PSI pressure; R986111319 is rated 3600 PSI nominal with 4600 PSI peak, so confirm your system’s required nominal and peak pressures align with the component you select.
Speed
R986111319 is 2200 max speed, while the others listed are 2600 (R986110069, R986111475, R986110581) or 3000 (R986110071); if your duty cycle requires higher operating speed, select a model with a higher stated speed rating.
Quick Selection Guide
Choose: R986111319
Because: When you need 110cc displacement with 3600 PSI nominal and 4600 PSI peak capability, and your operating speed requirement is within 2200 max speed.
Choose: R986110581 or R986111475
Because: When you need a mid-range displacement (74cc or 71cc) with 3600 PSI rating and a higher listed speed capability (2600) than R986111319.
Choose: R986110071 or R986110069
Because: When you need lower displacement (28cc or 60cc) while maintaining 3600 PSI rating, and you require higher listed speed capability (3000 for R986110071 or 2600 for R986110069).
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation. If you’re comparing alternatives across our hydraulic pumps lineup, match the interface details first—then confirm performance requirements.
For application-specific guidance, contact our technical team.
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986111319, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification (including related options like R986110076)
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
Questions? Call our specialists: (800) 823-4937 | Monday-Friday, 7 AM – 5 PM MST
Compatibility & Applications
Direct Replacement Information
This Rexroth R986111319 replaces CAT 373-6528 in high-pressure, variable-displacement hydraulic pump applications.
- Closed-loop or open-loop hydraulic circuits requiring 110cc variable displacement
- Systems operating around 3600 PSI nominal pressure with load-sensing or pressure-compensated control needs
- Mobile or industrial hydrostatic drive and implement circuits up to 2200 max pump speed
Common Applications
This Bosch Rexroth R986111319 is commonly used in:
- heavy equipment hydraulic systems
- construction and earthmoving machinery
- industrial power units and production machinery
- material handling equipment
If you’re sourcing similar units, browse our piston pumps selection and confirm control type, rotation, and porting before ordering.
Important: Verify mounting interface, shaft configuration, control type, and porting match the existing CAT 373-6528 installation before ordering. If you’re considering other Rexroth replacements, compare against options such as R986110083 or R986110085 based on displacement, pressure, and speed requirements.

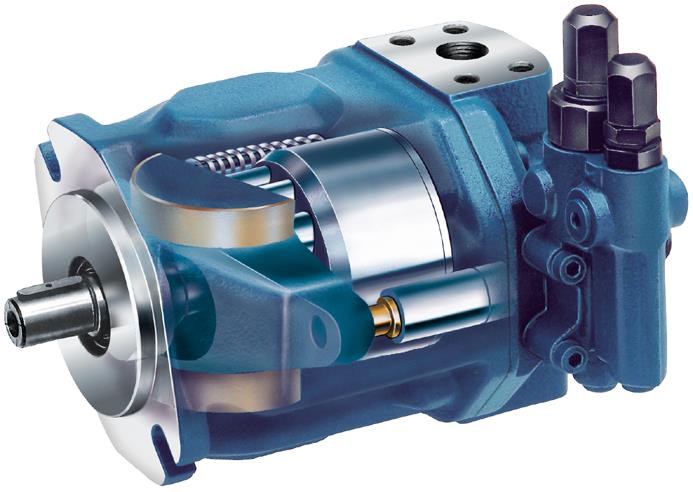

Bosch Rexroth R986111319 Axial Piston Variable Pump | Replaces CAT 373-6528 | 110cc | 3600 PSI
