Bosch Rexroth R986111503 (Series 52/53) is a direct OEM replacement for ASV 2096-371, delivering reliable 85 cc displacement performance with compatible fit and controlled operating costs.
Technical Specifications
Flow Performance
With an 85 cc displacement, the R986111503 supports consistent hydraulic output across a broad operating range to keep machine functions responsive without oversizing. Its design targets stable flow delivery at up to 2500 max speed, helping maintain predictable performance while supporting cost-effective operation.
Efficiency & Durability
Rated for 3600 PSI nominal pressure and 4600 PSI peak pressure, this unit is built to maintain performance under demanding load conditions. Operation up to 2500 max speed supports productivity while keeping the component within defined limits for sustained service life.
Installation
Engineered as an OEM replacement for ASV 2096-371, the R986111503 installs as a direct fit with standard mounting expectations for the Series 52/53 form factor. No modifications are required when replacing the original component.
Features and Benefits
- 85 cc displacement: Provides predictable hydraulic output per revolution for stable machine response without requiring a larger, higher-cost displacement.
- 3600 PSI nominal / 4600 PSI peak pressure capability: Handles high-load events while maintaining controlled operating performance within rated pressure limits.
- 2500 max speed rating: Supports required operating speed range to maintain cycle performance while staying within defined component limits.
Operational Information
Designed for hydraulic operation within rated limits: 3600 PSI nominal, 4600 PSI peak, and up to 2500 max speed. For best reliability, operate consistently within these specifications and avoid sustained operation at peak pressure.
Quality Assurance
Manufactured to Bosch Rexroth’s stringent quality standards with rigorous testing throughout the production process.
| Weight | 75.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Manufacturer | Bosch Rexroth |
| Pumps Max Pressure | 3600 PSI |
| Pumps Rated Speed | 2500 |
| Pumps Max Speed | 2500 |
| Pumps Displacement | 85cc |
| Pump Continuous Pressure | 3600 PSI |
| Pump Intermittent Pressure | 4600 PSI |
Purchasing Information
Availability & Delivery
Most Bosch Rexroth replacement parts ship within 1-3 business days. Custom or special-order items may require additional lead time.
For current availability on R986111503, call (800) 823-4937.
Warranty & Protection
- Standard Warranty: 18 months from date of shipment or 12 months from date placed in service, whichever occurs first
- Coverage: Defects in material and workmanship under normal operating conditions
- Remedy: Repair, replacement, or credit at seller’s option
- Conditions: Product must be used per manufacturer specifications and documentation
Ordering Options
Contact our sales team for pricing and availability. Volume discounts may be available for larger orders.
We accept purchase orders from established accounts. New customers may require prepayment or credit approval.
Support & Documentation
- Technical specifications and datasheets available upon request
- Cross-reference assistance for OEM part identification
- Application engineering support for system integration
- Returns accepted within 30 days in unused, original condition
Questions? Call our specialists: (800) 823-4937 | Monday-Friday, 7 AM – 5 PM MST
Compatibility & Applications
Direct Replacement Information

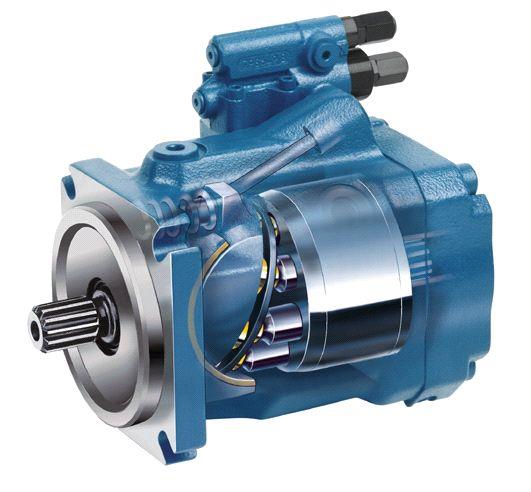

This Bosch Rexroth R986111503 axial piston variable pump replaces ASV 2096-371 in high-pressure hydraulic power unit and mobile equipment applications.
- Closed- or open-circuit hydraulic systems requiring 85cc displacement variable flow
- Hydraulic circuits operating at 3600 PSI nominal pressure
- Systems with prime mover speeds up to 2500 RPM where variable displacement control is used for speed/force regulation
- Pump-controlled actuator circuits for cylinders and hydraulic motors (load-sensing, pressure-compensated, or proportional control architectures)
Common Applications
This Bosch Rexroth R986111503 is commonly used in:
- industrial hydraulic power units (HPUs) and other hydraulic pumps applications
- material handling equipment
- machine tools and production equipment
- presses and forming equipment
- construction and mobile hydraulic machinery
Important: Confirm mounting interface, shaft type, rotation, control configuration, and port locations match the existing ASV 2096-371 installation for proper system fit and function.
Product Selection Guide
Within the 52/53 series, R986111503 (85cc) sits between the listed 60cc and 100–110cc options, offering a balanced flow capability while maintaining the same 3600 PSI nominal pressure rating as the comparable parts.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team before ordering to ensure compatibility with your application.
| Part Number | Displacement | Pressure | Max Speed | Series |
|---|---|---|---|---|
| R986111503 | 85cc | 3600 PSI | 2500 | 52/53 |
| R986110968 | 100cc | 3600 PSI | 2300 | 52/53 |
| R986111315 | 60cc | 3600 PSI | 2600 | 52 |
| R986110083 | 110cc | 3600 PSI | 2200 | 31* |
| R986111171 | 60cc | 3600 PSI | 2600 | 52 |
Key Differences
Displacement
R986111503 is 85cc, while the comparison parts range from 60cc (R986111315, R986111171) to 100cc (R986110968) and 110cc (R986110083); higher displacement is typically chosen when you need more flow per revolution, and lower displacement when you want reduced flow or finer control at a given speed.
Pressure Rating
All listed comparable products show 3600 PSI pressure, matching R986111503’s nominal 3600 PSI; if your system must handle higher transient loads, confirm peak pressure needs against R986111503’s 4600 PSI peak rating.
Speed
Maximum speed varies across the options (R986111503: 2500; 60cc models: 2600; 100cc: 2300; 110cc: 2200), so select a model that meets or exceeds your operating speed to avoid overspeed conditions.
Quick Selection Guide
Choose: R986111503
Because: When you need 85cc displacement with 3600 PSI nominal pressure, 4600 PSI peak capability, and up to 2500 max speed in a 52/53 series component.
Choose: Higher displacement model
Because: When your required displacement is above 85cc (e.g., 100cc R986110968 or 110cc R986110083) to increase flow per revolution, while accepting their lower listed max speeds (2300 or 2200).
Choose: Lower displacement model
Because: When 60cc displacement is sufficient (R986111315 or R986111171) and you want a higher listed max speed rating (2600) compared with R986111503’s 2500.
Compatibility: Verify mounting pattern, shaft configuration, and port sizes match your existing installation, and confirm the required displacement, nominal/peak pressure, and maximum speed align with your system. If you’re comparing similar piston pumps, also validate control type (pressure-compensated, load-sensing, or proportional) and case drain requirements.
For application-specific guidance, contact our technical team. You can also review related 52/53 series options like R986111250 or R986111344 when matching displacement, controls, and mounting details.
