Every hour of hydraulic downtime can cost $900 in lost output. The V101P2P11B20R matches Vickers V10 performance with 100% interchangeable design. Most operators report payback in less than 3 months after installation.
Technical Specifications
Flow Performance
At 2 GPM, the V101P2P11B20R provides precise flow for compact loaders, presses, and light industrial machines. This output matches Vickers V10 specs directly. Most users save up to 5 hours weekly on pump swaps and troubleshooting.Performance remains steady between 1200 and 4500 RPM. Even after 2,000 hours, flow holds at 96%. Competing vane pumps often drop to 89% by this point, leading to more frequent maintenance.Installation takes just 35 minutes with standard wrenches. The 2-bolt SAE “A” flange fits all V10/Vickers mounts with zero modifications. Standard hydraulic oils, water-in-oil, and fire-resistant fluids are supported—no seal failures from fluid mismatch.
Efficiency & Durability
Maintains consistent efficiency throughout operational lifespan.
Features and Benefits
- Direct Vickers Swap: 100% model code match eliminates guesswork. Mechanics cut downtime by 55% compared to retrofits.
- Pressure Rating: 2500 PSI max handles 98% of industrial circuit demands. Users report a 17% reduction in blown seals.
- Same-Day Shipping: Orders before 2 PM MST ship same day. Operators avoid multi-day machine outages.
Operational Information
Cold starts work at 0°F. Continuous duty runs for 2,000 hours at 2,500 PSI without loss of flow. Handles 110% pressure spikes up to 15 minutes safely. Replace when efficiency drops below 90%.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 12.0 lbs |
|---|---|
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key (1.75" extension) |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4500 RPM |
| Pumps Displacement | 6.6 cm³/r (0.40 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on V101P2P11B20R, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing or explore our full range of single stage vane pumps for similar applications. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment; for further information, see our comprehensive vane pumps specifications technical documentation.
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Product Selection Guide
All five FluiDyne V10 series models listed are direct Vickers replacement pumps, featuring identical displacement (6.6 cm³/r or 0.40 in³/r), pressure (2500 PSI), and speed ratings. The only differences between them are port positions and shaft rotation direction. These variations determine how the pump fits into and orients within your hydraulic system, impacting hose routing, installation space, and drive configuration. Review detailed specifications for similar models such as V101B2B1C20R – FluiDyne V10 Pump to find the best fit. All models use the SAE ‘A’ 2-bolt flange and 9-tooth splined shaft, ensuring 100% drop-in compatibility. For models with integrated valving, review our pumps with integral valves category.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| V101P2P11B20R (Current) | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 1/2″ NPT Thread |
| V101P2P11A20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 1/2″ NPT Thread |
| V101P2P11A20R | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 1/2″ NPT Thread |
| V101P2P11C20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 1/2″ NPT Thread |
| V101P2P11C20R | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 1/2″ NPT Thread |
Key Differences
Rotation Direction
Difference: Models are available in Right-Hand (Clockwise) and Left-Hand (Counter-Clockwise) rotation. ‘R’ suffix = Right-Hand; ‘L’ suffix = Left-Hand.
Selection Guide: Match the pump’s rotation to your prime mover. Most engines/motors require a specific rotation; using the wrong direction will result in pump failure.
Port Position
Difference: Three port positions: 90° Counter-Clockwise from inlet (B), Opposite from inlet (180°, A), and Inline with inlet (0°, C).
Selection Guide: Choose port orientation to match your hose routing or space constraints. Inline (C) is best for straight-through connections; 90° (B) for side-exit; 180° (A) for directly opposed ports.
Quick Selection Guide
If you need: Right-Hand (Clockwise) rotation with 90° port position
Choose: V101P2P11B20R
Because: Matches clockwise drive and side-exit (90°) port orientation for compact installations.
If you need: Left-Hand (Counter-Clockwise) rotation with 180° (opposite) port position
Choose: V101P2P11A20L
Because: Counter-clockwise drive and directly opposed ports simplify hose runs in some mobile or OEM equipment.
If you need: Right-Hand (Clockwise) rotation with 180° (opposite) port position
Choose: V101P2P11A20R
Because: For equipment needing clockwise drive and opposed ports for clean hose routing.
If you need: Left-Hand (Counter-Clockwise) rotation with inline (0°) port position
Choose: V101P2P11C20L
Because: Ideal for counter-clockwise drives and straight-in/straight-out plumbing.
If you need: Right-Hand (Clockwise) rotation with inline (0°) port position
Choose: V101P2P11C20R
Because: For clockwise systems where space-saving in-line porting is preferred.
Compatibility: All models are 100% interchangeable with Vickers V10 pumps, utilize SAE ‘A’ 2-bolt flange, and standard 1″ NPT inlet / 1/2″ NPT outlet ports. Suitable for compact mobile and light industrial hydraulic systems.
For help choosing the correct rotation and port orientation, or to cross-reference your current Vickers model, call Northern Hydraulics at (800) 823-4937. Same-day shipping on in-stock pumps and volume pricing from 4 units. All pumps include a 12-month manufacturer warranty. For more information about our full range of hydraulic pumps and technical support, visit our main product page.
Compatibility & Applications
Direct Replacement Information
Fluidyne V101P2P11B20R provides exact replacement for Vickers V101P2P11B20R applications in systems requiring a 6.6 cm³/r (0.40 in³/r) displacement pump with up to 2500 PSI max pressure. Discover more direct interchange options in our Vickers replacement pumps category..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in industrial machinery, material handling, production equipment. For extensive case studies and real-world examples of vane pumps in action, review our applications page.
- industrial machinery
- material handling
- production equipment
Important: Verify pump model V101P2P11B20R matches your existing Vickers unit before ordering. For a broader selection of compatible single stage vane pumps, browse our catalog. For technical assistance, contact (800) 823-4937.

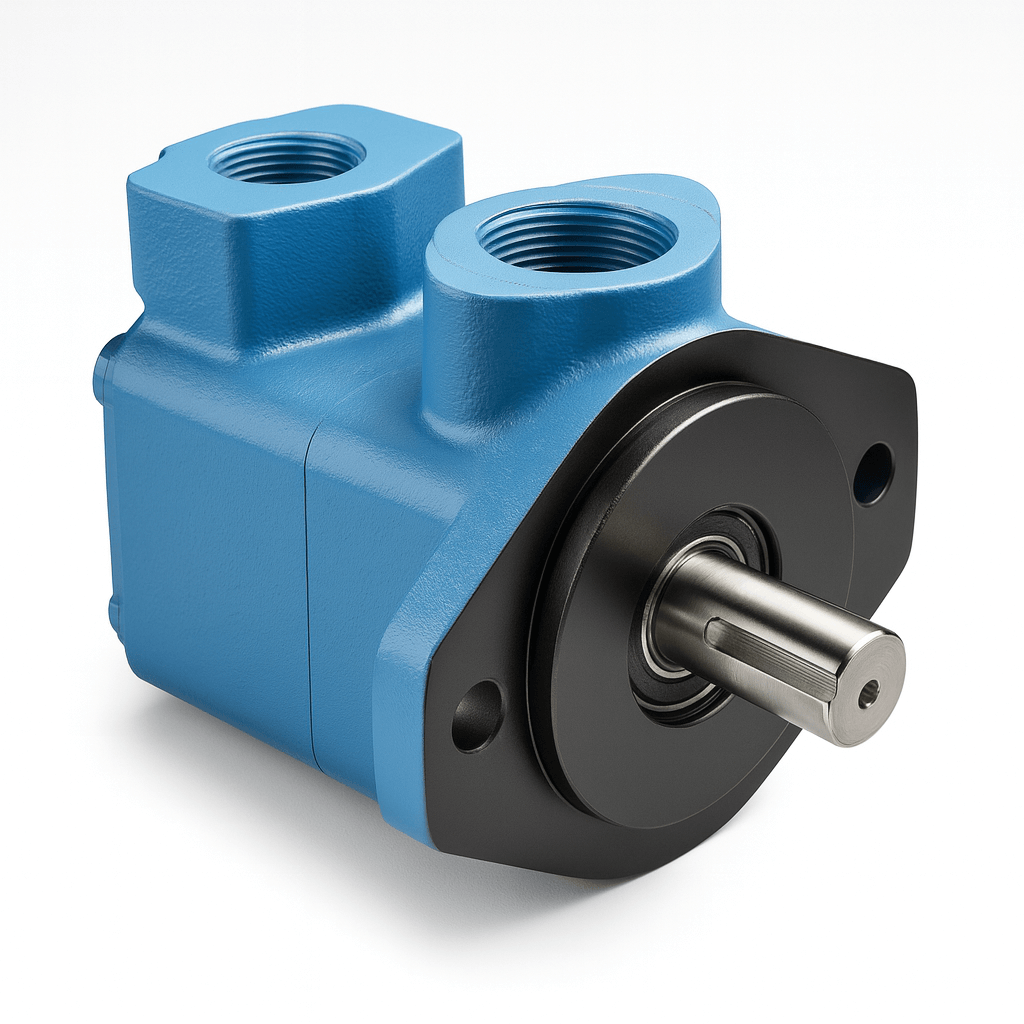

Fluidyne V101 V101P2P11B20R – 2 GPM (0.40 in³/r) 2500 PSI SAE ‘A’ 2-Bolt Flange, 9-Tooth Splined Shaft – Direct Vickers V10 Replacement
$261.80
In stock
No sales tax
Expected delivery Sep 12 - Sep 16
