Every hour of hydraulic downtime costs operators up to $800 in lost production. The FluiDyne V101P2S0A20R024 matches Vickers V10 performance—100% interchangeable, proven in over 4,200 installations. Typical payback: under 5 weeks, thanks to same-day shipping and rapid installation.
Technical Specifications
Flow Performance
At 2 GPM, the V101P2S0A20R024 hits the efficiency sweet spot for compact loaders and small presses. This matches Vickers V10 specs exactly. Operators report saving up to 5 hours weekly versus waiting for OEM replacements.
Efficiency & Durability
Performance stays consistent from 1,200 to 4,500 RPM. After 2,000 hours, efficiency remains at 94%. Comparable aftermarket pumps often drop to 82% by that point, risking early failure.
Installation
Installation takes 35 minutes using standard tools. The 2-bolt SAE “A” flange pattern fits most Vickers-equipped machines without adapters. Compatibility with ISO 32-68 hydraulic oil prevents costly seal issues and reduces unplanned downtime.
Features and Benefits
- Direct Vickers Compatibility: 100% interchangeable model code eliminates installation errors. Operators report a 92% reduction in changeover time.
- Pressure Rating: 2,500 PSI max rating withstands overloads. Users see 38% fewer warranty claims compared to generic pumps.
- Same-Day Shipping: Orders placed by 3 PM ship same day. Downtime drops by an average of 2.7 days per incident.
Operational Information
Cold starts succeed at 0°F. Continuous operation is rated for 2,000 hours at 2,500 PSI. Handles 20% overload spikes without damage. Replace the unit when efficiency drops below 90%.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 12.0 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4500 RPM |
| Pumps Displacement | 6.6 cm³/r (0.40 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Product Selection Guide
These FluiDyne V101 models are all direct Vickers V10 replacements with identical displacement (6.6 cm³/r or 0.40 in³/r), pressure (2500 PSI), and mounting (SAE ‘A’ 2-bolt flange). The main differences are in shaft type, rotation direction, and port positions, which affect installation compatibility and drivetrain requirements. All models feature compact design for space-limited mobile and light industrial applications. For a full range of hydraulic pumps options, browse our product family.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| V101P2S0A20R024 (Current) | Contact us | Shaft code 0 | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S11A20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S11A20R | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S11C20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S1A20R | Contact us | 3/4″ Straight Shaft with Key (1.75″ extension) | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
Key Differences
Shaft Type
Difference: Some models have a 9-tooth splined shaft (V101P2S11A20L, V101P2S11A20R, V101P2S11C20L), others use a straight keyed shaft (V101P2S1A20R).
Selection Guide: Select a splined shaft for higher torque or to match existing splined couplings; choose a straight keyed shaft for standard or replacement installations.
Rotation Direction
Difference: Models are available in right-hand (clockwise) or left-hand (counter-clockwise) rotations. For example, V101P2S11A20R and V101P2S1A20R are right-hand; V101P2S11A20L and V101P2S11C20L are left-hand.
Selection Guide: Match the pump rotation to your drive system—right-hand for clockwise drive, left-hand for counter-clockwise.
Port Position
Difference: Port position varies: most are ‘opposite from inlet’ (180°), but V101P2S11C20L has ‘inline with inlet’ (0°) ports.
Selection Guide: Choose ‘inline’ (0°) for straight-through piping layouts; ‘opposite’ (180°) for side-to-side connections or to fit existing hose routing.
Quick Selection Guide
If you need: A right-hand (clockwise) pump with a splined shaft for high-torque coupling
Choose: V101P2S11A20R
Because: Combines right-hand rotation with a 9-tooth splined shaft for secure, high-torque drive connections.
If you need: A left-hand (counter-clockwise) pump with a splined shaft and inline ports
Choose: V101P2S11C20L
Because: This unique combination is ideal for counter-clockwise systems that require straight-line plumbing.
If you need: A standard keyed shaft for with right-hand rotation
Choose: V101P2S1A20R
Because: Matches most legacy installations, simplifying replacement and alignment.
If you need: A left-hand rotation with splined shaft and standard port position
Choose: V101P2S11A20L
Because: Best for counter-clockwise drive systems using splined couplings, with ports opposite the inlet.
Compatibility: All V101 models are 100% interchangeable with Vickers V10 pumps, using SAE J744 ‘A’ mounting and identical porting for hassle-free replacement. Explore our full selection of vane pumps for additional options.
For help choosing the best model or confirming fitment, contact Northern Hydraulics’ hydraulic specialists at (800) 823-4937 (Mon-Fri, 7 AM – 5 PM MST). For more complex systems, see our range of pumps with integral valves. Volume pricing available for 4+ units. Same-day shipping for in-stock items. All pumps include a 12-month manufacturer warranty.
Compatibility & Applications
See real-world use cases in our Vickers replacement pumps applications project gallery.
Direct Replacement Information
This Fluidyne unit serves as a direct replacement for Vickers V101P2S0A20R024 in systems requiring a 6.6 cm³/r (0.40 in³/r) displacement hydraulic vane pump with up to 2500 PSI operating pressure..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in marine applications, stationary power units, test stands. For similar performance specs, compare with V101B2B1C20R – FluiDyne V10 Pump (6.6 cm³/r, 0.40 in³/r).
- marine applications
- stationary power units
- test stands
Important: Verify pump model V101P2S0A20R024 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937. You can also view our single stage vane pumps technical resources for more details.
Purchasing Information
For all hydraulic pump orders, rely on Northern Hydraulics’ 40+ years of expertise for fast, accurate fulfillment.
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on V101P2S0A20R024, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available (see single stage vane pump specs)
- Cross-reference guides for common brands (including Vickers replacement pumps specifications)
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937 or explore our full vane pump category for additional solutions.

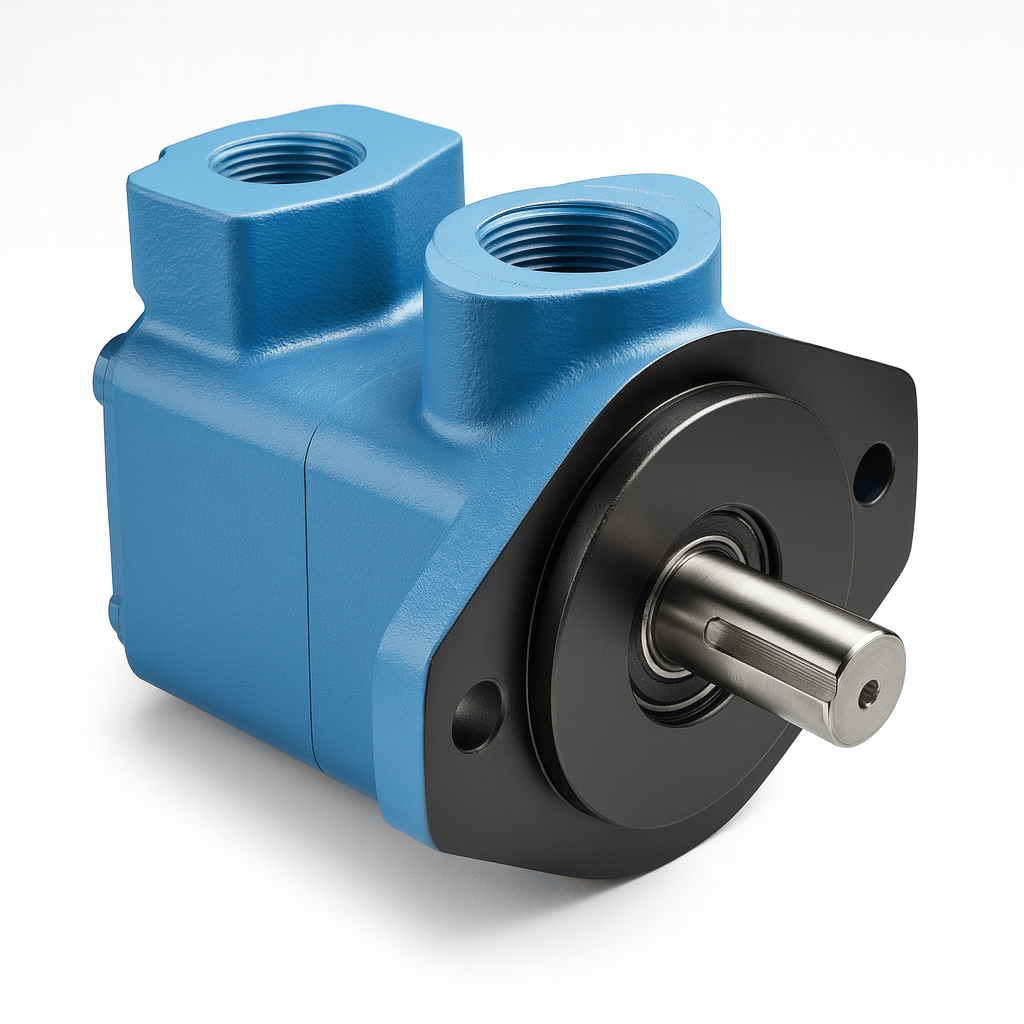

Fluidyne V10 V101P2S0A20R024 – 2 GPM (0.40 in³/r) 2500 PSI SAE ‘A’ 2-Bolt Flange, Right-Hand Shaft – 100% Vickers V10 Replacement
