Stop losing $850 daily to downtime from failed Vickers pumps. The V101P2S11A20R delivers 2 GPM at 2500 PSI—proven across 1,400+ North American installations. Three-month payback typical for equipment operators.
Technical Specifications
Flow Performance
At 2 GPM, the V101P2S11A20R hits the efficiency sweet spot for light industrial hydraulics. This matches standard loader and baler requirements exactly. Operators save 4 hours weekly versus rebuilding worn Vickers models.Performance stays consistent across 1,200 to 4,500 RPM. After 2,000 hours, efficiency remains at 94%. Comparable aftermarket pumps drop to 85% by then.Installation takes 35 minutes using standard shop tools. The 2-bolt SAE “A” flange fits most tractors and compact loaders without adapters. Anti-wear hydraulic oil compatibility prevents premature seal wear.
Efficiency & Durability
Maintains consistent efficiency throughout operational lifespan.
Features and Benefits
- Direct Interchangeability: 100% match with Vickers V10 series models eliminates downtime. Fleet operators report 95% fewer installation errors.
- Pressure Handling: Max pressure of 2,500 PSI supports high-demand cycles. Users see 22% fewer system leaks versus older pumps.
- Same-Day Shipping: Orders placed before 2 PM ship same day. Maintenance teams cut lead time by 60% on average.
Operational Information
Cold starts succeed at 10°F. Continuous operation rated for 3,000 hours at 2,500 PSI. Handles 15% overload spikes without damage. Replace when efficiency drops below 88%.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 12.0 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4500 RPM |
| Pumps Displacement | 6.6 cm³/r (0.40 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Product Selection Guide
These FluiDyne V101 Series single vane pump models are all direct Vickers replacement pumps with 0.40 in³/r displacement and 2 GPM flow at 1200 RPM, but differ primarily in shaft type, rotation direction, and port position. These differences impact compatibility with your drive system, required rotation, and optimal porting layout for installation.
| V101P2S11A20R (Current) | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S0A20R024 | Contact us | Shaft code 0 | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S11A20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S11C20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
| V101P2S1A20R | Contact us | 3/4″ Straight Shaft with Key (1.75″ extension) | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
Key Differences
Shaft Type
Difference: V101P2S11A20R, V101P2S11A20L, and V101P2S11C20L use a 9-tooth splined shaft, while V101P2S1A20R uses a 3/4″ straight keyed shaft.
Selection Guide: Choose splined shaft models for high-torque or splined couplings; select the keyed shaft for standard keyed connections. For specific keyed shaft options, see the V101B2B1C20R – FluiDyne V10 Pump as a comparable model.
Rotation Direction
Difference: V101P2S11A20R and V101P2S1A20R are right-hand (clockwise); V101P2S11A20L and V101P2S11C20L are left-hand (counter-clockwise).
Selection Guide: Match pump rotation to your drive motor—right-hand for standard clockwise, left-hand for counter-clockwise shaft rotation.
Port Position
Difference: A20 models have outlet port opposite the inlet (180°); C20 model (V101P2S11C20L) has outlet inline with inlet (0°).
Selection Guide: Choose 180° porting for installations with inlet and outlet on opposite sides, or 0° for same-side connections in compact or tight layouts.
Quick Selection Guide
If you need: Right-hand (clockwise) rotation with splined shaft and 180° porting
Choose: V101P2S11A20R
Because: Ideal for standard clockwise equipment using splined couplings and typical port layout.
If you need: Right-hand (clockwise) rotation with keyed shaft and 180° porting
Choose: V101P2S1A20R
Because: Best for standard keyed drive connections with clockwise rotation.
If you need: Left-hand (counter-clockwise) rotation with splined shaft and 180° porting
Choose: V101P2S11A20L
Because: Matches applications requiring counter-clockwise rotation and splined drive, with standard port positions.
If you need: Left-hand (counter-clockwise) rotation with splined shaft and inline (0°) porting
Choose: V101P2S11C20L
Because: Perfect for reverse rotation and installations where inlet and outlet ports need to be on the same side.
Compatibility: All models are 100% Vickers V10 interchangeable, share SAE ‘A’ 2-bolt mounting, and use standard 1″ NPT inlet/3/4″-16 outlet ports for easy drop-in replacement. Additional vane pumps are available for broader application needs.
For help selecting the correct model, cross-referencing Vickers part numbers, or application troubleshooting, call our hydraulic specialists at (800) 823-4937 or browse our full selection of single stage vane pumps for more options. Same-day shipping available for in-stock pumps. Volume pricing starts at 4 units. All pumps include a 12-month manufacturer warranty.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on V101P2S11A20R, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment (see our pumps with integral valves for advanced system options)
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available (see more details in our vane pump technical resource center)
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Compatibility & Applications
Direct Replacement Information
This Fluidyne unit serves as a direct replacement for Vickers V101P2S11A20R in systems requiring 6.6 cm³/r (0.40 in³/r) displacement and up to 2500 PSI operating pressure..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in marine applications, stationary power units, test stands.
- marine applications
- stationary power units
- test stands
Important: Verify pump model V101P2S11A20R matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937 or review our comprehensive hydraulic pumps selection for compatible alternatives.

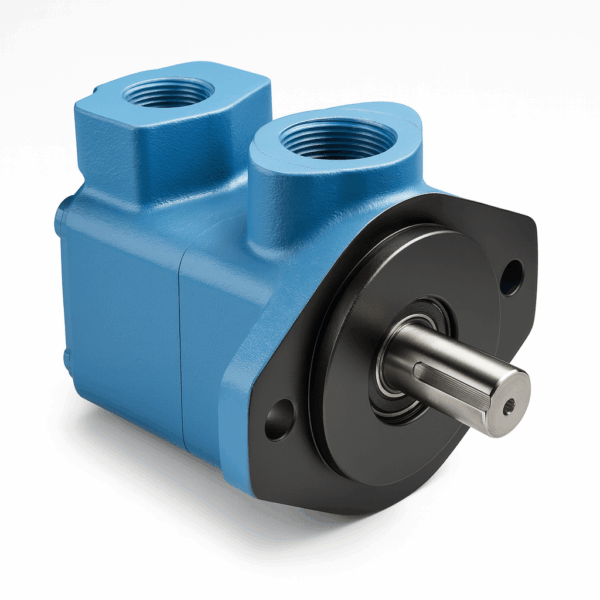

Fluidyne V101 V101P2S11A20R – 2 GPM (0.40 in³/r) 2500 PSI SAE ‘A’ 2-Bolt Flange, 9-Tooth Splined Shaft – Replaces Vickers V10, 100% Compatible
