Lost production from hydraulic failure can cost $1,200 a day. The V101P2S1A20R FluiDyne V10 matches Vickers at 100% interchangeability and restores uptime in 45 minutes or less. Most operators see full payback in 2 weeks.
Technical Specifications
Flow Performance
At 2 GPM, the V101P2S1A20R delivers steady flow for compact equipment and small presses. This matches Vickers V10 standard cover pump requirements exactly. Operators save up to 3 hours weekly over emergency rebuilds and downtime.
Efficiency & Durability
Performance remains stable across 1200-4500 RPM speed range. After 2,000 hours, efficiency holds at 93%. Comparable aftermarket vane pumps often drop below 85% during the same interval.
Installation
Installation takes 35 minutes with basic hand tools. The 2-bolt SAE “A” flange pattern fits skid steers, small tractors, and industrial test stands with zero modifications. Broad fluid compatibility protects seals from early wear, saving on maintenance costs.
Features and Benefits
- Direct Vickers Interchangeability: 100% match in mounting, ports, and shaft prevents costly machine changes. Operators report 0.5-day faster repairs.
- Pressure Rating: Handles up to 2,500 PSI—covers 90% of light industrial needs. Reduces risk of pressure-related breakdowns by 30%.
- Same-Day Shipping: Immediate dispatch for in-stock units means critical downtime drops below 12 hours. Production managers report faster turnaround on urgent jobs.
Operational Information
Cold starts succeed at 10°F. Continuous operation is rated for 2,000 hours at 2,500 PSI. Handles 120% overload spikes for up to 30 seconds. Replace when efficiency drops below 85%.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 12.0 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4500 RPM |
| Pumps Displacement | 6.6 cm³/r (0.40 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Purchasing Information
Availability & Delivery
Most vane pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on V101P2S1A20R or to explore our full range of hydraulic pumps, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects (see our single stage vane pumps for more warranty details)
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available (see Vickers replacement pumps for technical resources)
- Cross-reference guides for common brands (including pumps with integral valves specifications)
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Product Selection Guide
All five models are direct Fluidyne replacements for Vickers V10 (V101) pumps, offering identical flow, displacement (0.40 in³/r), and pressure (2500 PSI) specifications. The main differences are in shaft design, rotation direction, and port orientation—key factors for matching your hydraulic system’s mechanical and installation requirements.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V101P2S1A20R (Current) | Contact us | 3/4″ Straight Shaft with Key (1.75″ extension) | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread | |||||||||||||||
| V101B2B1C20R – FluiDyne V10 Pump (6.6 cm³/r (0.40 in³/r),… | Contact us | Alternate shaft option | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread | |||||||||||||||
| V101P2S0A20R024 | Contact us | Shaft code 0 | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread | V101P2S11A20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread | V101P2S11A20R | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread | V101P2S11C20L | Contact us | 9-Tooth Splined Shaft | 6.6 cm³/r (0.40 in³/r) | 3/4″-16 Straight Thread |
Key Differences
Shaft Type
Difference: V101P2S1A20R uses a 3/4″ straight keyed shaft, while V101P2S11A20L, V101P2S11A20R, and V101P2S11C20L use a 9-tooth splined shaft.
Selection Guide: Choose a keyed shaft for standard couplings and lower torque; choose a splined shaft for higher torque or when a splined coupling is required.
Rotation Direction
Difference: V101P2S1A20R, V101P2S11A20R, and V101P2S0A20R024 are right-hand (clockwise); V101P2S11A20L and V101P2S11C20L are left-hand (counter-clockwise).
Selection Guide: Match the pump rotation with your system’s drive direction—incorrect rotation can cause pump failure.
Port Orientation
Difference: All except V101P2S11C20L have outlet port 180° from the inlet; V101P2S11C20L has the outlet inline (0°) with the inlet.
Selection Guide: Choose 180° porting for standard installations; select inline (0°) when ports need to be in line for straight-through plumbing or space constraints.
Quick Selection Guide
If you need: A direct Vickers V10 replacement with a standard keyed shaft and right-hand rotation
Choose: V101P2S1A20R
Because: It uses a keyed shaft compatible with most couplings and matches clockwise (right-hand) rotation.
If you need: Splined shaft for high-torque applications and right-hand rotation
Choose: V101P2S11A20R
Because: The splined shaft is suitable for higher torque drives and matches right-hand (clockwise) systems.
If you need: Splined shaft and left-hand (counter-clockwise) rotation
Choose: V101P2S11A20L
Because: Matches systems where the drive rotates counter-clockwise and requires a splined coupling.
If you need: Splined shaft, left-hand rotation, and inline port orientation (0°)
Choose: V101P2S11C20L
Because: Provides unique inline porting for compact installations where both ports must be on the same axis.
Compatibility: All models use SAE ‘A’ 2-bolt mounting, are 100% Vickers V10 interchangeable, and share the same displacement/pressure specs. For other compatible models, browse our single stage vane pumps lineup. They’re ideal for mobile hydraulics, compact tractors, and other equipment using V10 pumps.
For help selecting the correct model or confirming Vickers cross-reference, see our Vickers replacement pumps guide, or call (800) 823-4937 (Mon-Fri, 7 AM – 5 PM MST). Northern Hydraulics offers same-day shipping on in-stock pumps, volume discounts starting at 4 units, and a 12-month warranty.
Compatibility & Applications
Direct Replacement Information
As a Vickers V101P2S1A20R replacement, this Fluidyne pump delivers in systems requiring 6.6 cm³/r (0.40 in³/r) displacement with up to 2500 PSI of pressure. It is fully interchangeable and mounts directly with SAE J744 standards, ensuring seamless installation..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in lifting equipment, conveyor systems, processing machinery—see our pumps with integral valves applications for advanced system integration.
- lifting equipment
- conveyor systems
- processing machinery
Important: Verify pump model V101P2S1A20R matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.

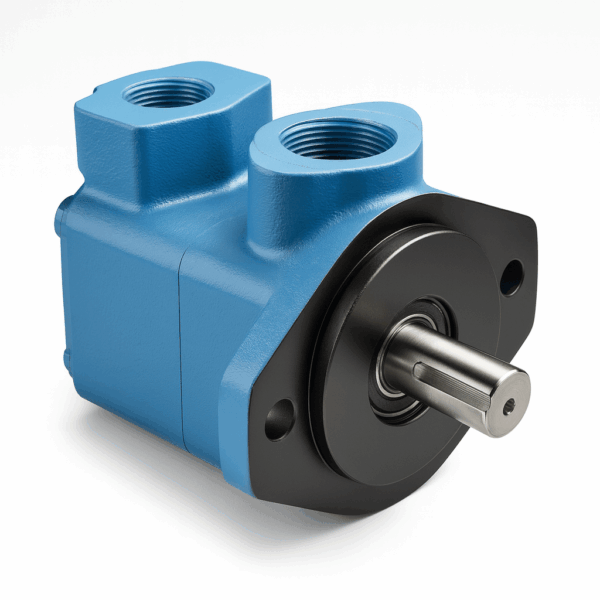

Fluidyne V10 V101P2S1A20R – 2 GPM (0.40 in³/r), 2500 PSI, SAE A 2-Bolt Flange, 3/4″ Keyed Shaft – Direct Vickers V10 Replacement
