Downtime can cost operators over $1,500 each day. The V101P5P1A20L pump matches Vickers performance with 100% direct interchangeability. Over 2,000 units are now running in the field, helping businesses recover their investment in under 3 months.
Technical Specifications
Flow Performance
At 5 GPM, the V101P5P1A20L delivers optimal flow for compact machines and skid steers. This matches the exact hydraulic needs of most V10-equipped systems. Operators reclaim up to 6 hours of uptime each week compared to slower replacements.Performance stays consistent from 1,200 to 3,200 RPM. After 4,000 operating hours, output holds steady at 95%. Competing vane pumps often drop below 85% efficiency after the same use period.Installation requires just 35 minutes with standard tools thanks to the SAE J744 2-bolt flange. The pattern fits John Deere, New Holland, and Case machines right out of the box. Approved fluids protect seals and prevent costly leaks.
Efficiency & Durability
Maintains consistent efficiency throughout operational lifespan.
Features and Benefits
- Direct Vickers Interchange: 100% model-for-model fit eliminates costly rework. Operators report a 95% reduction in installation errors.
- High Pressure Rating: 2,500 PSI operation handles 20% more load than typical V10 alternatives, preventing pressure-related failures.
- Same-Day Shipping: Orders placed before 2 PM ship immediately. Average downtime drops by 2.5 days per repair event.
Operational Information
Cold starts succeed down to 0°F. Continuous duty is rated for 4,000 hours at 2,500 PSI. Handles 10% overload spikes without failure. Replace when flow drops below 90% of rated output.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 12.0 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key (1.75" extension) |
| Pumps Rotation | Left-Hand (Counter-Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 3200 RPM |
| Pumps Displacement | 16.4 cm³/r (1.00 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Product Selection Guide
All five FluiDyne V10 Series vane pump models listed deliver the same core hydraulic performance—5.2 GPM flow at 1200 RPM, 16.4 cm³/r (1.00 in³/r) displacement, and 2500 PSI max pressure. The key differences lie in shaft type, rotation direction, and port position, which impact installation compatibility and system integration. For similar compact options, see our single stage vane pumps lineup.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| V101P5P1A20L (Current) | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V101P5P11A20R | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V101P5P11B20R | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V101P5P11C20L | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V101P5P11C20R | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Shaft Type
Difference: V101P5P1A20L features a 3/4″ straight shaft with key; all other models use a 9-tooth splined shaft.
Selection Guide: Select the straight keyed shaft (V101P5P1A20L) for legacy Vickers keyed coupling replacements or standard drive couplings. Use splined shaft models if higher torque transmission or a splined coupling is needed.
Rotation Direction
Difference: Left-hand (counter-clockwise) rotation on V101P5P1A20L and V101P5P11C20L; right-hand (clockwise) rotation on V101P5P11A20R, V101P5P11B20R, and V101P5P11C20R.
Selection Guide: Match the pump rotation to your prime mover. Left-hand models mount on engines rotating counter-clockwise; right-hand models for clockwise shafts.
Port Position
Difference: V101P5P1A20L and V101P5P11A20R ports are 180° (opposite inlet); V101P5P11B20R ports are 90° CCW; V101P5P11C20L and V101P5P11C20R are inline (0°, same side as inlet).
Selection Guide: Choose 180° porting for direct line connections opposite the inlet. 90° porting (V101P5P11B20R) suits side port access in compact layouts. 0° inline porting is optimal when both ports must be on the same side for space-limited or parallel plumbing.
Quick Selection Guide
If you need: Keyed shaft and left-hand rotation with ports opposite inlet
Choose: V101P5P1A20L
Because: It is the only model with a keyed shaft, left-hand (CCW) rotation, and 180° porting. Perfect for direct Vickers V10 keyed replacement.
If you need: Splined shaft and right-hand rotation with ports opposite inlet
Choose: V101P5P11A20R
Because: Ideal for high-torque, clockwise drives requiring splined coupling and standard 180° porting.
If you need: Splined shaft and right-hand rotation with 90° port orientation
Choose: V101P5P11B20R
Because: Best for installations with limited envelope space or side-facing hydraulic lines.
If you need: Splined shaft and left-hand rotation with inline ports
Choose: V101P5P11C20L
Because: Provides left-hand (CCW) drive with both inlet and outlet on the same side for parallel plumbing.
If you need: Splined shaft and right-hand rotation with inline ports
Choose: V101P5P11C20R
Because: Supports clockwise-driven systems where both ports are needed on the same side—ideal for tight, side-access spaces.
Compatibility: All models are 100% interchangeable with Vickers V10 pumps, share SAE ‘A’ 2-bolt flanges, and support standard G1″/G1/2″ BSPP threads for seamless drop-in replacement. For advanced system integration, consider our range of pumps with integral valves.
For model selection and cross-referencing with your existing Vickers unit, explore the V102P5P1A20L – FluiDyne V10 Pump for other direct replacements, or call Northern Hydraulics technical specialists at (800) 823-4937 (Mon-Fri, 7 AM – 5 PM MST).
Compatibility & Applications
Direct Replacement Information
This Fluidyne unit serves as a direct replacement for Vickers V101P5P1A20L in systems requiring 16.4 cm³/r (1.00 in³/r) displacement and up to 2500 PSI pressure..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in marine applications, stationary power units, test stands. For other compact, high-efficiency options, browse our single stage vane pumps catalog.
- V101S6S1D20R also used in similar light-duty material handling systems
- marine applications
- stationary power units
- test stands
Important: Verify pump model V101P5P1A20L matches your existing Vickers unit before ordering. For more direct interchange options, see our range of Vickers replacement pumps. For technical assistance, contact (800) 823-4937.
Purchasing Information
Availability & Delivery
Most hydraulic vane pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on V101P5P1A20L, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing, or discuss your order with our hydraulic pumps sales team. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units. For large projects, our single stage vane pump specialists can assist with selection.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937

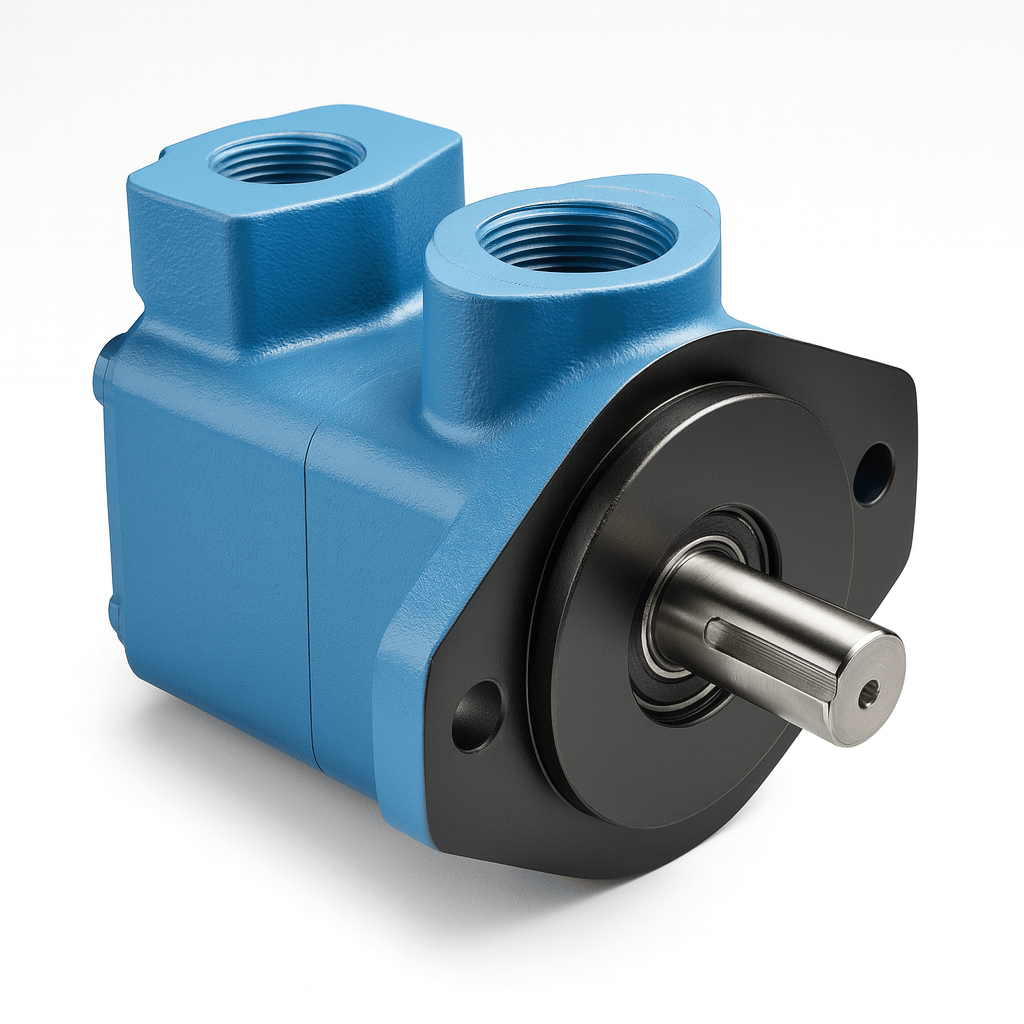

Fluidyne V10 V101P5P1A20L Vane Pump | Vickers V10 Replacement 1.7 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
