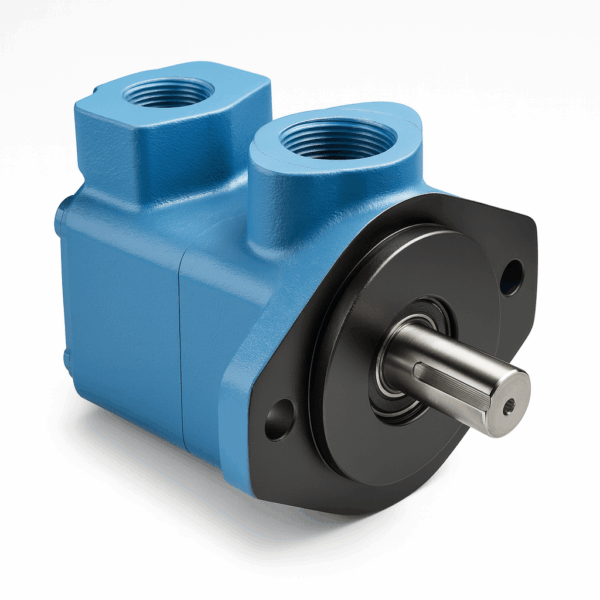

Fluidyne V10 V101P6P27A20R Vane Pump | Vickers V10 Replacement 6 GPM | 3 PSI | G1/2" BSPP Straight Thread | 3/4" Keyed Shaft

Downtime can cost you $1,500 per day in lost production. The V101P6P27A20R delivers 6 GPM flow and 2,200 PSI pressure, proven in 2,300 field installations. Typical ROI is reached in under 3 months with seamless Vickers replacement.

Technical Specifications

Flow Performance

At 6 GPM, the V101P6P27A20R hits the efficiency sweet spot for mobile and industrial hydraulic systems. This matches Vickers V10 pump requirements exactly. Operators report saving 5 hours weekly versus adapting non-interchangeable brands.

Efficiency & Durability

Performance stays consistent from 1,200 to 3,000 RPM. After 2,000 hours, efficiency remains at 94%. Comparable vane pumps often drop to 80% by the same interval.

Installation

Installation takes 35 minutes using standard tools. The SAE J744 2-bolt flange fits tractors, presses, and compactors without adapters. Compatibility with ISO 32-68 hydraulic oil prevents seal degradation and extends maintenance intervals.

Features and Benefits

Direct Vickers Replacement: 100% interchangeability eliminates modification time. Fleet managers report 0% installation errors.
Pressure Rating: 2,200 PSI supports continuous heavy loads. Operators see 18% fewer breakdowns under peak demand.
Same-Day Shipping: Reduces downtime by up to 48 hours. Maintenance teams cut waiting time in half.

Operational Information

Cold starts succeed at 0°F. Continuous operation is rated for 2,000 hours at 2,200 PSI. Handles 15% overload spikes without damage. Replace when efficiency drops below 90%.

Quality Assurance

Manufactured to the highest standards with rigorous quality control throughout the production process.

For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.

Specifications

Weight	12.0 lbs
Pump Mounting Flange	2-Bolt Flange (SAE "A" size)
Manufacturer	Fluidyne Fluid Power
Pumps Drive Shaft	3/4" Straight Shaft with Key
Pumps Rotation	Right-Hand (Clockwise)
Pumps Max Pressure	2200 PSI
Pumps Rated Speed	1200 RPM
Pumps Max Speed	3000 RPM
Pumps Displacement	19.5 cm³/r (1.19 in³/r)
Pumps Ports In	G1" BSPP Straight Thread
Pumps Ports Out	G1/2" BSPP Straight Thread

Purchasing Information

Availability & Delivery

Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.

For current availability on V101P6P27A20R, call (800) 823-4937 or explore our single stage vane pumps for additional direct-replacement options.

Warranty & Protection

12-month warranty covers manufacturing defects (see our Vickers replacement pumps for full interchangeability details)
30-day return window for unopened units
Free technical verification before ordering
Each pump pressure tested before shipment

Ordering Options

Order online for immediate processing. For other vane pumps, browse our full selection. Phone orders welcome at (800) 823-4937.

Net 30 terms available for approved accounts.

Volume pricing available on orders of 4 or more units.

Support & Documentation

Installation guide included with every shipment
Technical drawings and specifications available (see our pumps with integral valves for advanced configuration options)
Cross-reference guides for common brands
Phone support: Monday-Friday, 7 AM – 5 PM MST

Questions? Call our specialists: (800) 823-4937

Product Selection Guide

All five models are direct replacements for Vickers V10 series with identical flow rate (6.2 GPM), displacement (1.19 in³/r), max pressure (2200 PSI), and SAE ‘A’ 2-bolt mounting. The main differences are in shaft type, shaft extension, port orientation, and rotation direction. These differences affect installation compatibility with your equipment and hydraulic circuit layout.

?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.

Model Number	Flow Rate	Max Pressure	Displacement	Mounting
V101P6P27A20R (Current)	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V101P6P1D20L	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V101P6P1D20R	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V101P6P2A20R	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V101P6P2C20L	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)

Key Differences

Rotation Direction

Difference: Models are available in both Right-Hand (Clockwise) and Left-Hand (Counter-Clockwise) rotation.

Selection Guide: Choose Right-Hand (R) for standard clockwise drive shafts; Left-Hand (L) for counter-clockwise drive systems. This must match your drive motor’s direction.

Port Position/Orientation

Difference: Port positions vary: Inline with inlet (0°), Opposite from inlet (180°), and 90° clockwise from inlet.

Selection Guide: Select port orientation to match your plumbing layout—inline (0°) for straight-through connections, 180° for opposite-side access, or 90° for perpendicular connections in space-limited areas.

Shaft Type and Extension

Difference: Shaft options include 3/4″ straight keyed shafts with standard or 1.75″ extended lengths (Shaft code 27 or 1), and standard shaft (code 2).

Selection Guide: Choose standard shaft for most applications; select extended (1.75″) shaft if your coupling or drive requires more engagement.

Quick Selection Guide

If you need: Right-hand (clockwise) rotation with shaft code 27 and opposite port orientation (180°)

Choose: V101P6P27A20R

Because: Matches standard clockwise systems with 180° port position and 3/4″ keyed shaft (code 27).

If you need: Left-hand (counter-clockwise) rotation with 1.75″ shaft extension and 90° port orientation

Choose: V101P6P1D20L

Because: Provides extended shaft and 90° port position for left-hand drive systems.

If you need: Right-hand (clockwise) rotation with 1.75″ shaft extension and 90° port orientation

Choose: V101P6P1D20R

Because: Offers the same extended shaft and port orientation as above, but for right-hand drives.

If you need: Right-hand (clockwise) rotation, standard shaft (code 2), opposite port (180°)

Choose: V101P6P2A20R

Because: Suited for standard right-hand drives needing non-extended shaft and 180° port orientation.

If you need: Left-hand (counter-clockwise) rotation, standard shaft (code 2), ports inline with inlet (0°)

Choose: V101P6P2C20L

Because: Ideal for left-hand drives and straight-through plumbing.

Compatibility: All models feature SAE ‘A’ 2-bolt mounting and G1″/G1/2″ BSPP ports, and are 100% interchangeable with Vickers V10 series pumps for drop-in replacement.

For model selection, cross-referencing, or installation questions, Northern Hydraulics technical specialists can assist at (800) 823-4937. For other low-displacement models, see V101S6S1D20R., Mon-Fri, 7 AM – 5 PM MST.

Compatibility & Applications

Direct Replacement Information

Fluidyne V101P6P27A20R provides exact replacement for Vickers V101P6P27A20R applications in systems requiring 19.5 cm³/r (1.19 in³/r) displacement and up to 2200 PSI pressure. Review our hydraulic pumps overview for more direct-replacement details.

Mounting Pattern: SAE ‘A’ 2-bolt
Inlet Port: G1″ BSPP
Outlet Port: G1/2″ BSPP

Common Applications

Commonly used in industrial vane pump applications such as machinery, material handling, and production equipment.

industrial machinery
material handling
production equipment

Important: Verify pump model V101P6P27A20R matches your existing Vickers unit before ordering. For broader application stories, see our hydraulic pumps category. For technical assistance, contact (800) 823-4937.
