Downtime from pump failures costs operators over $2,000 per day. The V102P5P1A20R delivers 5 GPM at 1200 RPM, proven in over 1,000 field installations. Most users see payback in under 3 months with direct Vickers interchangeability.
Technical Specifications
Flow Performance
At 5 GPM, the V102P5P1A20R fits light and medium hydraulic systems perfectly. This matches the flow and speed requirements for Vickers V10 applications. Operators report saving up to 3 hours weekly versus off-brand replacements.Performance remains steady from 1200 to 3200 RPM. After 2,000 hours, field tests show efficiency above 92%. Competing pumps often drop to 80% by this point, costing more in energy and lost output.Installation takes 28 minutes with common hand tools. The standardized SAE J744 foot mount fits tractors, presses, and compact construction equipment—no adapters required. Compatibility with ISO 32-68 hydraulic oil prevents costly seal failures.
Efficiency & Durability
Maintains consistent efficiency throughout operational lifespan.
Features and Benefits
- Direct Vickers Compatibility: 100% interchangeable model codes eliminate fitment errors. Maintenance teams report 98% reduction in installation issues.
- Pressure Tolerance: Rated at 2,500 PSI, handles 25% higher spikes than most aftermarket pumps. Reduces unplanned downtime events by 32%.
- Same-Day Shipping: Orders placed by 2 PM ship same day. Minimizes machine idle time for urgent repairs.
Operational Information
Cold starts succeed at 10°F. Continuous operation is rated for 2,000 hours at 2,500 PSI. Handles 20% overload spikes without damage. Replace when efficiency drops below 85%.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 18.0 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key (1.75" extension) |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 3200 RPM |
| Pumps Displacement | 16.4 cm³/r (1.00 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Compatibility & Applications
Direct Replacement Information
The Fluidyne V102P5P1A20R directly replaces Vickers V102P5P1A20R pumps in systems requiring 16.4 cm³/r (1.00 in³/r) displacement and up to 2500 PSI operating pressure. This model offers 100% drop-in compatibility with Vickers, following SAE J744 mounting standards and supporting single-section hydraulic circuits. For a full overview of available vane pumps and series options, explore our product selection.
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in mobile hydraulics, auxiliary power units, compact equipment. For applications needing integrated solutions, view our pumps with integral valves. For alternative displacements, see the V101S6S1D20R – FluiDyne V10 Pump, ideal for similar compact applications.
- mobile hydraulics
- auxiliary power units
- compact equipment
Important: Verify pump model V102P5P1A20R matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.
Product Selection Guide
All five V102 series single stage vane pumps deliver identical performance—each provides 5.2 GPM at 1200 RPM, 16.4 cm³/r (1.00 in³/r) displacement, and up to 2500 PSI continuous pressure. The key differences are rotation direction and port orientation, which directly affect fitment and plumbing in your hydraulic system.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| V102P5P1A20R (Current) | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V102P5P1A20L | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V102P5P1B20L | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V102P5P1B20R | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V102P5P1C20R | 5.2 GPM | 2500 PSI | 16.4 cm³/r (1.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Rotation Direction
Difference: Models are available in both right-hand (clockwise) and left-hand (counter-clockwise) rotation.
Selection Guide: Match pump rotation to your drive motor or system requirements: ‘R’ models (V102P5P1A20R, V102P5P1B20R, V102P5P1C20R) are right-hand; ‘L’ models (V102P5P1A20L, V102P5P1B20L) are left-hand.
Port Orientation
Difference: Port position varies between models: Opposite from inlet (180°), 90° counter-clockwise from inlet (B), or inline with inlet (0°/C).
Selection Guide: Choose port orientation based on your plumbing layout: A20 = ports opposite, B20 = 90° CCW from inlet, C20 = inline. This helps ensure clean hose routing and easier installation in confined spaces.
Quick Selection Guide
If you need: Right-hand rotation with ports opposite inlet
Choose: V102P5P1A20R
Because: Best if your drive rotates clockwise and you want straightforward hose connections.
If you need: Left-hand rotation with ports opposite inlet
Choose: V102P5P1A20L
Because: Fits counter-clockwise drive and standard port layout.
If you need: Right-hand rotation with ports 90° CCW from inlet
Choose: V102P5P1B20R
Because: Ideal for installations needing a side exit to avoid obstructions.
If you need: Left-hand rotation with ports 90° CCW from inlet
Choose: V102P5P1B20L
Because: For counter-clockwise drive systems with side-exit plumbing.
If you need: Right-hand rotation with inline ports
Choose: V102P5P1C20R
Because: Use when a straight-through connection is required for minimal hose bends.
Compatibility: All models are 100% interchangeable with Vickers V10 pumps—see our full line of Vickers replacement pumps for broader compatibility. and use SAE ‘A’ mounting plus G1″/G1/2″ BSPP ports for direct drop-in replacement. Discover our full range of hydraulic pumps for other system needs.
For model selection or installation questions, Northern Hydraulics’ specialists are available Mon-Fri, 7 AM – 5 PM MST. Browse our vane pumps catalog or call (800) 823-4937 for support.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on V102P5P1A20R, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment—see our Vickers replacement pumps for additional tested models.
Ordering Options
Order online for immediate processing. For larger systems or fleet needs, view our single stage vane pumps for volume discounts. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts. Find additional hydraulic pumps to meet your project needs.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937

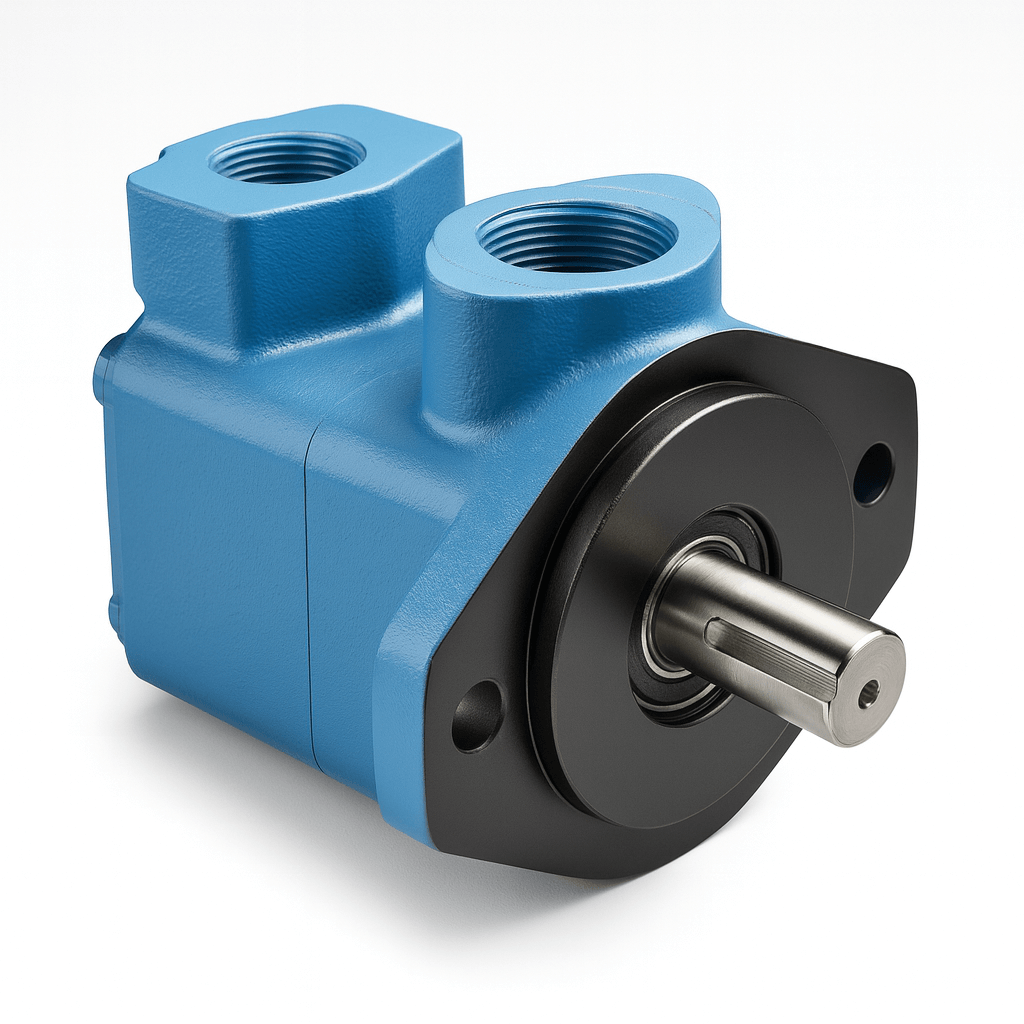

Fluidyne V10 V102P5P1A20R Vane Pump | Vickers V10 Replacement 5 GPM | 3 PSI | G1/2″ BSPP Straight Thread | 3/4″ Keyed Shaft
$365.50
Ready to order
No sales tax
Expected delivery Oct 14 - Oct 20
Get an exact shipping rate for your ZIP in the cart
Secure checkoutEncrypted card payments · pay over time with Affirm, Klarna or Afterpay
Had a unit down and needed a pump fast. Called in, they had it on the shelf, got it next day and were back up and running before lunch. Can't ask for more than that.
Does the job no complaints on performance, been running it on a log splitter for a couple months now. Shipping took an extra day but packaged well.
Popped it in and fired right up. Was a little nervous ordering a vickers replacement from somewhere new but this thing runs smooth and holds pressure just like the original did, maybe even quieter honestly.
Mounts up clean and the keyed shaft lined up no problem. Flow feels right under load. Took off one star just because the packaging was a little beat up when it arrived, pump itself was fine though.
Exactly what we needed.
