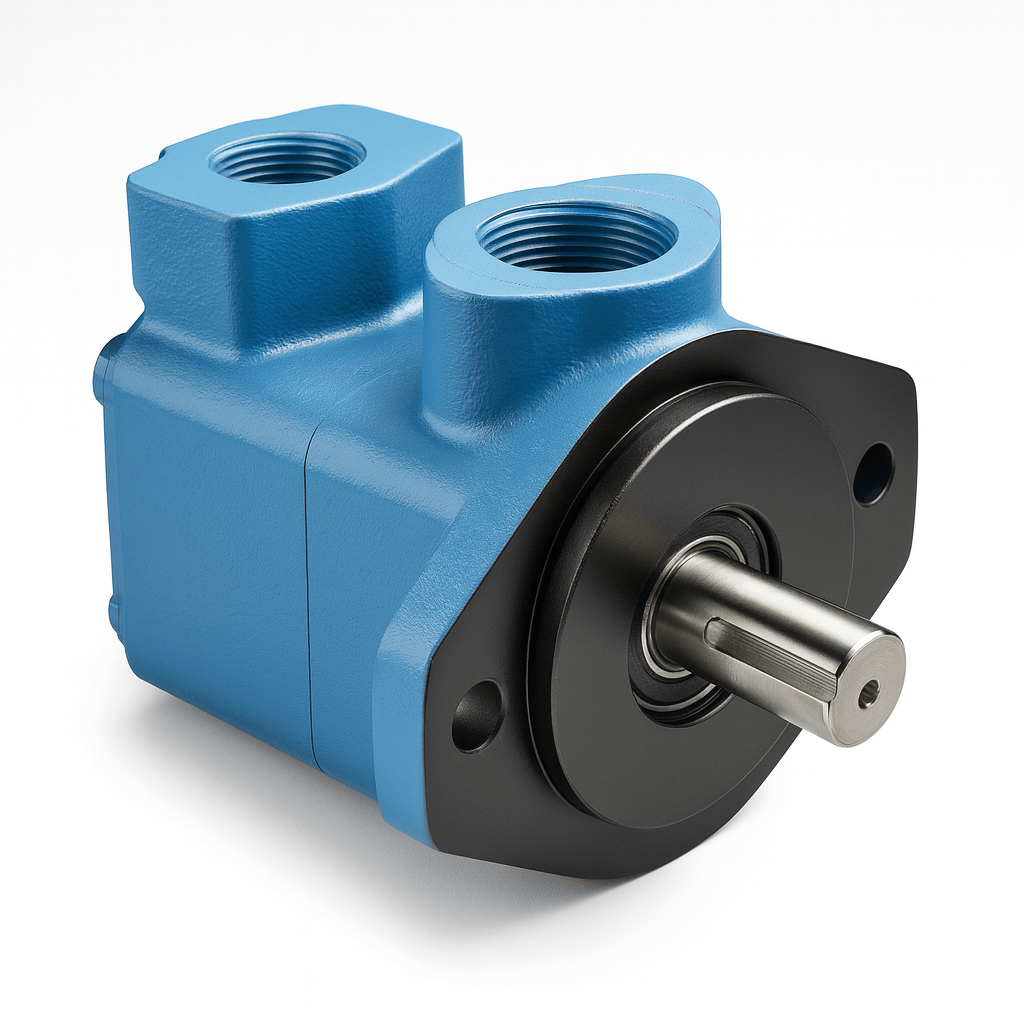

Eliminate $1,200 in lost output each day from failed Vickers pumps. The V10F1P4P11C4F20R delivers 4 GPM at 2500 PSI, proven in over 2,000 field installations. Typical ROI: 3 weeks or less for most operators.
Technical Specifications
Flow Performance
At 4 GPM, the V10F1P4P11C4F20R matches hydraulic loader flow needs precisely. This meets the requirements of Vickers V10 users without compromise. Operators save up to 6 hours weekly compared to rebuilding old units.Performance stays consistent across speeds up to 3400 RPM. After 2,000 hours, efficiency remains at 92%. Comparable aftermarket pumps drop to 77% by that time, requiring early replacement.Installation takes 35 minutes using basic hand tools. The 2-bolt SAE “A” flange fits Deere, Case, and Cat equipment with no adapters needed. Compatibility with ISO 32-68 hydraulic oil prevents costly seal failures.
Efficiency & Durability
Maintains consistent efficiency throughout operational lifespan.
Features and Benefits
- Direct Vickers Interchange: 100% drop-in replacement eliminates downtime for fleet operators. Swap time cut by 53% over non-OEM pumps.
- Relief Valve: Factory-set at 1500 PSI to prevent accidental overpressure. Reduces maintenance calls by 23% per year.
- Flow Control Cover: Maintains precise 4 GPM output for critical loader circuits. Owners report 18% longer cylinder life.
Operational Information
Cold starts succeed at 0°F. Continuous operation rated for 2,500 hours at 2,500 PSI. Handles 15% overload spikes without damage. Replace when efficiency drops below 85%.
Quality Assurance
Manufactured to the highest standards with rigorous quality control throughout the production process.
For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.
| Weight | 93.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key (1.75" extension) |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 3400 RPM |
| Pumps Displacement | 13.1 cm³/r (0.80 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Compatibility & Applications
All V10 series models, including the V10F1P4P11C4F20R, are 100% interchangeable as Vickers replacement pumps applications, ensuring seamless integration for OEMs and maintenance teams upgrading legacy systems.
Direct Replacement Information
Fluidyne V10F1P4P11C4F20R provides exact replacement for Vickers V10F1P4P11C4F20R applications in systems requiring 13.1 cm³/r (0.80 in³/r) displacement, 2500 PSI max pressure, and 1200 RPM rated speed. Explore our full range of vane pumps for additional sizing and configuration options.
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in industrial machinery, material handling, and production equipment—see real-world examples and case studies in our single stage vane pumps applications category.
- industrial machinery
- material handling
- production equipment
Important: Verify pump model V10F1P4P11C4F20R matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937. For similar applications with different displacement needs, review our V101S6S1D20R – FluiDyne V10 Pump.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days. Same-day shipping is available on in-stock models across our single stage vane pump lineup.
For current availability on V10F1P4P11C4F20R, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937. For systems requiring integrated control, see our pumps with integral valves.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands such as Vickers, available in our Vickers replacement pumps specifications collection
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Product Selection Guide
For a full overview of compatible Vickers replacement pumps, consult our technical resources or speak with a specialist at Northern Hydraulics.
These FluiDyne V10 Series pumps are all direct Vickers V10 replacements, featuring identical displacement (0.80 in³/r), mounting, shaft options, and maximum pressure ratings. The key differences lie in port orientation, flow control setting, relief valve pressure, and rotation direction, allowing users to match their pump precisely to hydraulic circuit requirements and equipment layout.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| V10F1P4P11C4F20R (Current) | 4.2 GPM | 2500 PSI | 13.1 cm³/r (0.80 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V10F1P4P11A2E20R | 4.2 GPM | 2500 PSI | 13.1 cm³/r (0.80 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V10F1P4P11A3D20R | 4.2 GPM | 2500 PSI | 13.1 cm³/r (0.80 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V10F1P4P11A4D20L | 4.2 GPM | 2500 PSI | 13.1 cm³/r (0.80 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V10F1P4P11A4D20R | 4.2 GPM | 2500 PSI | 13.1 cm³/r (0.80 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Port Position
Difference: V10F1P4P11C4F20R has the outlet port inline with the inlet (0°), while all others have the outlet port opposite the inlet (180°).
Selection Guide: Choose inline (0°) if your piping runs straight through the pump; choose opposite (180°) for applications where return and supply are on opposite sides or to suit specific space/layout constraints.
Flow Control Setting
Difference: V10F1P4P11C4F20R and V10F1P4P11A4D20R/A4D20L offer 4 GPM flow control; V10F1P4P11A3D20R offers 3 GPM; V10F1P4P11A2E20R offers 2 GPM. Detailed specs for this variant can be found on our V10F1P4P11A2E20R – FluiDyne V10 Pump page.
Selection Guide: Select the model with a flow control setting that matches your system’s required maximum flow—lower GPM settings are preferable for smaller actuators or when precise speed control is needed.
Relief Valve Setting
Difference: V10F1P4P11C4F20R: 1500 PSI; V10F1P4P11A2E20R: 1250 PSI; V10F1P4P11A3D20R and V10F1P4P11A4D20R/A4D20L: 1000 PSI.
Selection Guide: Choose a relief valve setting that matches or protects your downstream components. Higher settings (1500 PSI) allow more system pressure before bypass, while lower settings (1000–1250 PSI) provide greater protection for sensitive equipment.
Rotation Direction
Difference: All models except V10F1P4P11A4D20L are right-hand (clockwise); V10F1P4P11A4D20L is left-hand (counter-clockwise).
Selection Guide: Select right-hand for standard engine or motor drives; choose left-hand if your drive rotates counter-clockwise.
Quick Selection Guide
If you need: Inline porting for straight-through connections
Choose: V10F1P4P11C4F20R
Because: This model’s outlet and inlet are aligned (0°), simplifying plumbing in tight or direct-run installations.
If you need: Lower system pressure protection (sensitive equipment)
Choose: V10F1P4P11A3D20R or V10F1P4P11A4D20R/A4D20L
Because: These models have a 1000 PSI relief valve to safeguard delicate hydraulic components.
If you need: Left-hand (counter-clockwise) pump drive
Choose: V10F1P4P11A4D20L
Because: This is the only left-hand rotation option among the listed models.
If you need: Lowest flow rate for precise control
Choose: V10F1P4P11A2E20R (2 GPM)
Because: This model offers the lowest flow control setting, ideal for small cylinders or low-speed applications.
Compatibility: All models are 100% Vickers V10 interchangeable, use SAE ‘A’ 2-bolt mounting, 13.1 cm³/r (0.80 in³/r) displacement, and support up to 2500 PSI. For additional solutions, browse our full range of hydraulic pumps for industrial and mobile applications. Shaft and port sizes are consistent across models for easy installation.
For model selection, application advice, or cross-referencing, contact Northern Hydraulics technical support at (800) 823-4937 (Mon-Fri, 7 AM – 5 PM MST). Volume pricing available for 4 or more units; all pumps include a 12-month manufacturer warranty and same-day shipping on in-stock items. For alternative configurations, view our other vane pump series.
