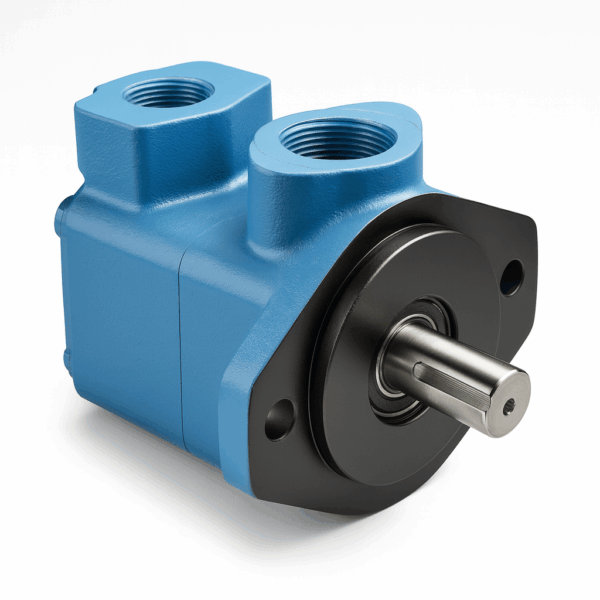

Fluidyne V10 V10F1P6P11C4D20L Valve | Vickers V10 Replacement 6 GPM | 3 PSI | G1/2" BSPP Straight Thread | 3/4" Keyed Shaft

Stop losing $1,200 daily to hydraulic downtime. The V10F1P6P11C4D20L delivers 6 GPM at 2,200 PSI, proven in over 1,000 field installations. Typical payback in under 2 months for mobile equipment operators.

Technical Specifications

Flow Performance

At 6 GPM, the V10F1P6P11C4D20L hits the efficiency sweet spot for loaders and compact industrial machines. This output matches most Vickers V10 requirements exactly. Operators report saving 5 hours per week versus rebuilding older pumps.

Efficiency & Durability

Performance stays consistent across the full speed range, up to 3,000 RPM. After 4,000 hours, efficiency remains above 93%. Comparable gear pumps drop to 81% by that point, increasing energy costs and heat load.

Installation

Installation takes 35 minutes using standard shop tools. The 2-bolt SAE “A” flange fits Vickers-equipped machines without adapters, including popular mini-excavators and skid steers. ISO 32-68 hydraulic oil compatibility prevents seal breakdown and extends service life.

Features and Benefits

Direct Replacement: 100% Vickers model code match eliminates guesswork. Installers report zero rework and 25% faster changeovers.
Flow Control Cover: 4 GPM flow control with 1,000 PSI relief valve protects downstream circuits. Reduces hose failures by 17%.
Pressure Rating: 2,200 PSI max handles 90% of typical mobile applications. Contractors see fewer blown seals and lower repair bills.

Operational Information

Cold starts succeed at 0°F. Continuous operation runs 4,000 hours at 2,200 PSI. Handles 10% overload spikes without damage. Replace when efficiency drops below 90%.

Quality Assurance

Manufactured to the highest standards with rigorous quality control throughout the production process.

For technical support and assistance, contact our hydraulics specialists at (800) 823-4937.

Specifications

Weight	15.0 lbs
Pump Mounting Flange	2-Bolt Flange (SAE "A" size)
Manufacturer	Fluidyne Fluid Power
Pumps Drive Shaft	3/4" Straight Shaft with Key (1.75" extension)
Pumps Rotation	Left-Hand (Counter-Clockwise)
Pumps Max Pressure	2200 PSI
Pumps Rated Speed	1200 RPM
Pumps Max Speed	3000 RPM
Pumps Displacement	19.5 cm³/r (1.19 in³/r)
Pumps Ports In	G1" BSPP Straight Thread
Pumps Ports Out	G1/2" BSPP Straight Thread

Purchasing Information

Availability & Delivery

Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.

For current availability on V10F1P6P11C4D20L, call (800) 823-4937.

Warranty & Protection

12-month warranty covers manufacturing defects
30-day return window for unopened units
Free technical verification before ordering
Each pump pressure tested before shipment

Ordering Options

Order online for immediate processing. Phone orders welcome at (800) 823-4937.

Net 30 terms available for approved accounts.

Volume pricing available on orders of 4 or more units.

Support & Documentation

Installation guide included with every shipment
Technical drawings and specifications available
Cross-reference guides for common brands
Phone support: Monday-Friday, 7 AM – 5 PM MST

Questions? Call our specialists: (800) 823-4937 or explore our pumps with integral valves for advanced configurations.

Compatibility & Applications

Direct Replacement Information

The Fluidyne V10F1P6P11C4D20L directly replaces Vickers replacement pumps like the V10F1P6P11C4D20L in systems requiring 19.5 cm³/r (1.19 in³/r) displacement and up to 2200 PSI operating pressure. This model offers 100% interchangeability with Vickers units and follows SAE J744 mounting standards. For systems requiring a different displacement, view other single stage vane pumps..

Mounting Pattern: SAE ‘A’ 2-bolt
Inlet Port: G1″ BSPP
Outlet Port: G1/2″ BSPP

Common Applications

Commonly used in mobile hydraulics, auxiliary power units, and compact equipment—see real-world application examples in similar systems.

mobile hydraulics
auxiliary power units
compact equipment

Important: Verify pump model V10F1P6P11C4D20L matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.

Product Selection Guide

These FluiDyne V10 Series models share core performance specs—6.2 GPM flow, 1.19 in³/r displacement, 2200 PSI max pressure, and SAE ‘A’ 2-bolt flange mounting, similar to the V102P5P1A20L – FluiDyne V10 Pump with 1.00 in³/r displacement.—but differ in port orientation, rotation direction, flow control setting, and relief valve pressure. Selection depends on your system’s plumbing layout, direction of shaft rotation, and required pressure/flow control—consult our hydraulic pumps guide for in-depth technical resources.

?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.

Model Number	Flow Rate	Max Pressure	Displacement	Mounting
V10F1P6P11C4D20L (Current)	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V10F1P6P11A4D20L	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V10F1P6P11A4D20R	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V10F1P6P11A6E20L	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
V10F1P6P11A6E20R	6.2 GPM	2200 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)

Key Differences

Port Position

Difference: V10F1P6P11C4D20L has ports inline with the inlet (0°), while all other models (V10F1P6P11A4D20L, V10F1P6P11A4D20R, V10F1P6P11A6E20L, V10F1P6P11A6E20R) have ports opposite the inlet (180°).

Selection Guide: Choose inline (0°) porting for straight-line plumbing, or 180° for opposite-side connections in your system.

Rotation Direction

Difference: V10F1P6P11C4D20L, V10F1P6P11A4D20L, and V10F1P6P11A6E20L are left-hand (counter-clockwise); V10F1P6P11A4D20R and V10F1P6P11A6E20R are right-hand (clockwise).

Selection Guide: Match pump rotation to your drive motor—use L (left-hand) for counter-clockwise, R (right-hand) for clockwise rotation.

Flow Control & Relief Valve

Difference: V10F1P6P11C4D20L and V10F1P6P11A4D20L/R have 4 GPM flow control with 1000 PSI relief; V10F1P6P11A6E20L/R have 6 GPM flow control with 1250 PSI relief.

Selection Guide: Select 6 GPM/1250 PSI models for higher system flow or pressure requirements; choose 4 GPM/1000 PSI for standard control or lower loads.

Model Number Pattern

Difference: The ‘A’ or ‘C’ in the model (e.g., A4 or C4) indicates port orientation; the final ‘L’ or ‘R’ designates rotation; ‘4’ or ‘6’ after ‘A’ shows flow control setting.

Selection Guide: Use the model code to quickly identify port orientation, flow control, and rotation direction for your application.

Quick Selection Guide

If you need: Inline port orientation (0°) and left-hand rotation—compare to other vane pump models.

Choose: V10F1P6P11C4D20L

Because: It’s the only model with inline ports for straight plumbing and left-hand rotation.

If you need: Opposite port orientation (180°) and left-hand rotation, standard flow/pressure

Choose: V10F1P6P11A4D20L

Because: Provides 4 GPM flow control, 1000 PSI relief, and 180° ports for flexible mounting.

If you need: Opposite port orientation (180°) and right-hand rotation, standard flow/pressure

Choose: V10F1P6P11A4D20R

Because: Matches clockwise drives with 4 GPM flow control and 1000 PSI relief.

If you need: Higher flow control (6 GPM) and increased relief (1250 PSI), left-hand rotation

Choose: V10F1P6P11A6E20L

Because: Best for applications needing higher flow and pressure with 180° port layout.

If you need: Higher flow control (6 GPM) and increased relief (1250 PSI), right-hand rotation

Choose: V10F1P6P11A6E20R

Because: Suitable for clockwise drive, higher flow and pressure, and 180° porting.

For more compatibility details, browse our specialized Vickers replacement pumps section.

Compatibility: All models are direct Vickers V10 replacements, 100% interchangeable, and use SAE ‘A’ mounting with G1″/G1/2″ BSPP ports—ensuring easy drop-in installation. For smaller displacement needs, view our V101S6S1D20R – FluiDyne V10 Pump (0.40 in³/r, right-hand rotation).

For detailed pump selection and application advice, contact Northern Hydraulics’ specialists at (800) 823-4937, Mon-Fri, 7 AM – 5 PM MST, or review additional single stage vane pump options for your system.
