Home » Hydraulics Shop » Hydraulic Pumps » Hydraulic Vane Pumps » Single Stage Vane Pumps » Fluidyne V20 WF8201208 Vane Pump | Replacement for Vickers/Eaton V201P13P62C11R 4.3 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft

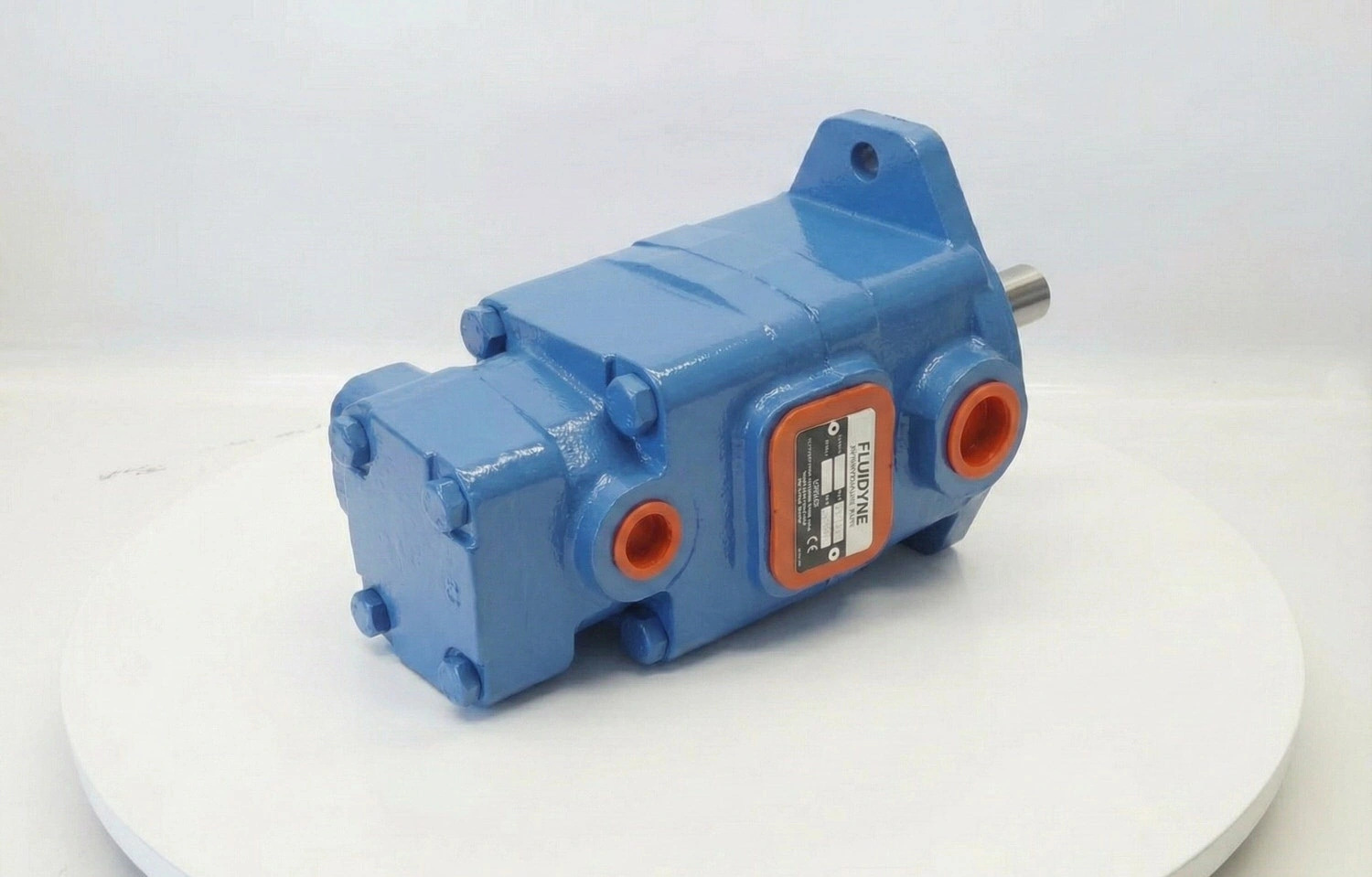

Fluidyne V20 WF8201208 Vane Pump | Replacement for Vickers/Eaton V201P13P62C11R 4.3 GPM | 2500 PSI | SAE 'A' 2-Bolt | 3/4" Keyed Shaft

Fluidyne V20 WF8201208 Vane Pump | Replacement for Vickers/Eaton V201P13P62C11R 4.3 GPM | 2500 PSI | SAE 'A' 2-Bolt | 3/4" Keyed Shaft - Image 2

Specifications

Weight	18 lbs
Pump Mounting Flange	2-Bolt Flange (SAE "A" size)
Manufacturer	Fluidyne Fluid Power
Pumps Drive Shaft	3/4" Straight Shaft with Key (1.75" extension)
Pumps Rotation	Right-Hand (Clockwise)
Pumps Max Pressure	2500 psi
Pumps Rated Speed	1200 RPM
Pumps Max Speed	2600 RPM
Pumps Displacement	42.6 cm³/r (2.60 in³/r)
Pumps Ports In	G1" BSPP Straight Thread
Pumps Ports Out	G1/2" BSPP Straight Thread

Compatibility & Applications

Direct Replacement Information

As a Vickers replacement pump, the WF8201208 Fluidyne model delivers reliable performance in hydraulic systems requiring 42.6 cm³/r (2.60 in³/r) displacement and up to 2500 PSI operating pressure. As part of our comprehensive vane pumps offering, this model is engineered for maximum reliability and efficiency. Designed for direct interchangeability, it meets SAE J744 standards, ensuring seamless installation..

Mounting Pattern: SAE ‘A’ 2-bolt
Inlet Port: G1″ BSPP
Outlet Port: G1/2″ BSPP

Common Applications

Commonly used in lifting equipment, conveyor systems, and various single stage vane pumps applications, including processing machinery.

lifting equipment
conveyor systems
processing machinery

Important: Verify pump model WF8201208 matches your existing Vickers unit before ordering. For technical assistance or volume pricing, contact Northern Hydraulics at (800) 823-4937. Same-day shipping is available on in-stock items, and all Fluidyne pumps include a 12-month manufacturer warranty.

Product Selection Guide

These FluiDyne V20 Series vane pumps are direct Vickers replacements, each tailored for a range of flow rates, displacements, shaft styles, port positions, and rotation directions. All feature SAE ‘A’ 2-bolt mounting and are 100% Vickers interchangeable, making selection dependent on your system’s specific hydraulic flow, connection, and drive requirements.

?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.

Model Number	Flow Rate	Max Pressure	Displacement	Mounting
WF8201208 (Current)	13.5 GPM	2500 PSI	42.6 cm³/r (2.60 in³/r)	2-Bolt Flange (SAE “A” size)
V201P13P3A11R – FluiDyne V20 Pump	13.5 GPM	2500 PSI	42.6 cm³/r (2.60 in³/r)	2-Bolt Flange (SAE “A” size)
WF8201299	5.7 GPM	2500 PSI	18.0 cm³/r (1.10 in³/r)	2-Bolt Flange (SAE “A” size)
WF8201210	6.2 GPM	2500 PSI	19.5 cm³/r (1.19 in³/r)	2-Bolt Flange (SAE “A” size)
WF820129	8.4 GPM	2500 PSI	26.6 cm³/r (1.62 in³/r)	2-Bolt Flange (SAE “A” size)

Key Differences

Flow Rate & Displacement

Difference: WF8201208 and WF8201212 deliver 13.5 GPM (2.60 in³/r), WF8201299 outputs 5.7 GPM (1.10 in³/r), WF8201210 outputs 6.2 GPM (1.19 in³/r), and WF820129 provides 8.4 GPM (1.62 in³/r) at 1200 RPM.

Selection Guide: Select WF8201208 or WF8201212 for higher flow needs (13.5 GPM), WF8201299 or WF8201210 for low-flow circuits, and WF820129 for mid-range flows.

Shaft Style

Difference: Options include 9-tooth or 11-tooth splined shafts, 3/4″ straight keyed shafts, and 7/8″ threaded shafts with Woodruff key.

Selection Guide: Use splined shafts (WF8201208, WF820129) for higher torque or splined coupling; straight keyed shafts (WF8201299, WF8201210) for standard couplings; threaded shaft (WF8201212) if your drive requires a threaded interface.

Rotation Direction

Difference: WF8201208, WF8201212, and WF820129 are right-hand (clockwise); WF8201299 and WF8201210 are left-hand (counter-clockwise).

Selection Guide: Match pump rotation to your motor’s direction—select right-hand for standard CW drives, left-hand for CCW applications.

Port Position

Difference: Ports are either inline with inlet (0°) or opposite from inlet (180°), impacting installation layout.

Selection Guide: Choose inline (WF8201208, WF8201299, WF820129) for straight-through plumbing; opposite (WF8201212, WF8201210) for installations where ports must face away from each other.

Rated Pressure & Speed

Difference: Max pressure is 2200-2500 PSI; max speed ranges from 2400 to 3400 RPM by model.

Selection Guide: For high-pressure or high-speed applications, verify the model’s limits against your system—WF8201210 supports the highest RPM (3400).

Quick Selection Guide

If you need: High flow output (13.5 GPM) with right-hand rotation and splined shaft

Choose: WF8201208

Because: Best for larger actuators or circuits needing high flow, with splined shaft for high torque.

If you need: High flow (13.5 GPM) but require a threaded shaft and opposite port orientation

Choose: WF8201212

Because: Ideal if your drive uses a threaded shaft and you need ports on opposite sides.

If you need: Low flow (5.7 GPM) and left-hand rotation with a straight keyed shaft

Choose: WF8201299

Because: Optimized for compact, low-flow circuits and CCW drive direction.

If you need: Intermediate flow (8.4 GPM) and right-hand rotation with splined shaft

Choose: WF820129

Because: Balances higher flow with splined shaft for mid-sized circuits.

If you need: Low-to-mid flow (6.2 GPM), left-hand rotation, and unique shaft configuration

Choose: WF8201210

Because: Fits special drive requirements and supports the highest max speed (3400 RPM).

Compatibility: All models use SAE ‘A’ 2-bolt flange mounting and G1″/G1/2″ BSPP straight thread ports, ensuring 100% drop-in compatibility with Vickers and easy system integration.

For detailed pump selection or cross-referencing, hydraulic specialists are available at (800) 823-4937, Mon-Fri, 7 AM – 5 PM MST. You can also browse our complete vane pump lineup for additional options. For a broader selection, explore our full range of hydraulic pumps for industrial systems. Volume pricing begins at 4 units and all pumps include a 12-month manufacturer warranty. Same-day shipping is available for in-stock models.

Purchasing Information

Availability & Delivery

Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.

For current availability on WF8201208, call (800) 823-4937.

Warranty & Protection

12-month warranty covers manufacturing defects
30-day return window for unopened units
Free technical verification before ordering
Each pump pressure tested before shipment

Ordering Options

Order online for immediate processing. Phone orders welcome at (800) 823-4937.

Net 30 terms available for approved accounts.

Volume pricing available on orders of 4 or more units.

Support & Documentation

Installation guide included with every shipment
Technical drawings and specifications available
Cross-reference guides for common brands
Phone support: Monday-Friday, 7 AM – 5 PM MST

Questions? Call our specialists: (800) 823-4937

SKU: WF8201208

Fluidyne V20 WF8201208 Vane Pump | Replacement for Vickers/Eaton V201P13P62C11R 4.3 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft

Name: Fluidyne V20 WF8201208 Vane Pump | Replacement for Vickers/Eaton V201P13P62C11R 4.3 GPM | 2500 PSI | SAE 'A' 2-Bolt | 3/4" Keyed Shaft
Brand: Northern Hydraulics Inc.
SKU: WF8201208
Price: 299.2 USD
Availability: InStock

$299.20

In stock

No sales tax

Expected delivery Feb 20 - Feb 24

1+ $ 299.20/piece

4+ $ 284.24/piece -5%

8+ $ 269.28/piece -10%
