| Weight | 18.0 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Left-Hand (Counter-Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 3200 RPM |
| Pumps Displacement | 26.6 cm³/r (1.62 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Compatibility & Applications
Direct Replacement Information
As a Vickers WF8201424 replacement, this Fluidyne pump delivers reliable performance in systems requiring 26.6 cm³/r (1.62 in³/r) displacement and up to 2500 PSI pressure. Designed for direct interchangeability, it meets SAE J744 standards and ensures seamless installation for V20-series applications. For even higher displacement, consider our V201P13P39C11R (2.60 in³/r) model..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in lifting equipment, conveyor systems, processing machinery. For more real-world applications, see our case studies and similar applications with the V20 series.
- lifting equipment
- conveyor systems
- processing machinery
Important: Verify pump model WF8201424 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.
Product Selection Guide
These FluiDyne V20 Series hydraulic vane pump models are all direct Vickers replacements, designed for SAE ‘A’ 2-bolt mounting, and rated up to 2500 PSI. The key differentiators are flow rate, displacement, shaft type, port position, and rotation direction. These features impact pump integration, system flow requirements, and how easily a pump fits into existing hydraulic circuits.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF8201424 (Current) | 8.4 GPM | 2500 PSI | 26.6 cm³/r (1.62 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8201410 | 6.2 GPM | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF820149 | 6.2 GPM | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8201412 | 8.4 GPM | 2500 PSI | 26.6 cm³/r (1.62 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8201425 | 8.4 GPM | 2500 PSI | 26.6 cm³/r (1.62 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Flow Rate and Displacement
Difference: WF8201410 delivers 6.2 GPM (1.19 in³/r), WF820149 offers 7 GPM (1.39 in³/r), while WF8201424, WF8201412, and WF8201425 all provide 8.4 GPM (1.62 in³/r) at 1200 RPM.
Selection Guide: Select a lower flow ( or ) for smaller actuators or circuits needing precise, lower flow. Opt for 8.4 GPM models (WF8201424, , ) for larger cylinders or higher flow applications.
Shaft Type and Extension
Difference: WF8201424 and use an 11-tooth splined shaft (1.25″ extension). and use a 3/4″ straight keyed shaft (2.66″ extension), while uses a special shaft configuration (Code 23).
Selection Guide: Use splined shafts (WF8201424, ) for higher torque or if your coupling requires a splined interface. Choose keyed shafts (, ) for standard couplings. Special shaft () is for unique mounting needs.
Rotation Direction
Difference: , , and are right-hand (clockwise). WF8201424 and are left-hand (counter-clockwise).
Selection Guide: Match pump rotation to your drive’s rotation. Use right-hand models when your prime mover turns clockwise; left-hand for counter-clockwise.
Port Position
Difference: and have ports inline with the inlet (0°). WF8201424 has ports opposite the inlet (180°). and have ports 90° counter-clockwise from the inlet.
Selection Guide: Select port orientation to simplify hose routing: 0° for straight-through, 90° for side ports in tight spaces, 180° for opposite connections.
Maximum Speed
Difference: supports up to 3400 RPM, up to 3000 RPM, others up to 2800 RPM.
Selection Guide: Choose if your system runs at higher RPMs.
Quick Selection Guide
If you need: Lower flow (6 GPM) for small actuators or fine control
Choose:
Because: It delivers 6.2 GPM at 1200 RPM and allows up to 3400 RPM for higher speed requirements.
If you need: Medium flow (7 GPM), right-hand rotation, and inline porting
Choose:
Because: It provides 7 GPM with right-hand rotation and inline ports for straight hose runs.
If you need: Maximum flow (8.4 GPM) with special shaft or right-hand rotation
Choose:
Because: It offers 8.4 GPM, right-hand rotation, and a special shaft for unique mounting.
If you need: Maximum flow (8.4 GPM) with left-hand rotation and 180° ports
Choose: WF8201424
Because: It provides 8.4 GPM, left-hand rotation, and 180° porting for opposite-side hose connections.
If you need: Maximum flow (8.4 GPM) with left-hand rotation and 90° ports
Choose:
Because: It provides 8.4 GPM, left-hand rotation, and 90° porting for side hose access in tighter spaces.
Compatibility: All models are direct Vickers replacements, fully compatible with SAE J744 2-bolt ‘A’ mountings, and use G1″/G1/2″ BSPP ports for simple interchangeability.
For detailed model selection or application guidance, browse our hydraulic pumps overview or call Northern Hydraulics at (800) 823-4937.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF8201424, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: View more vane pump resources or call our specialists: (800) 823-4937

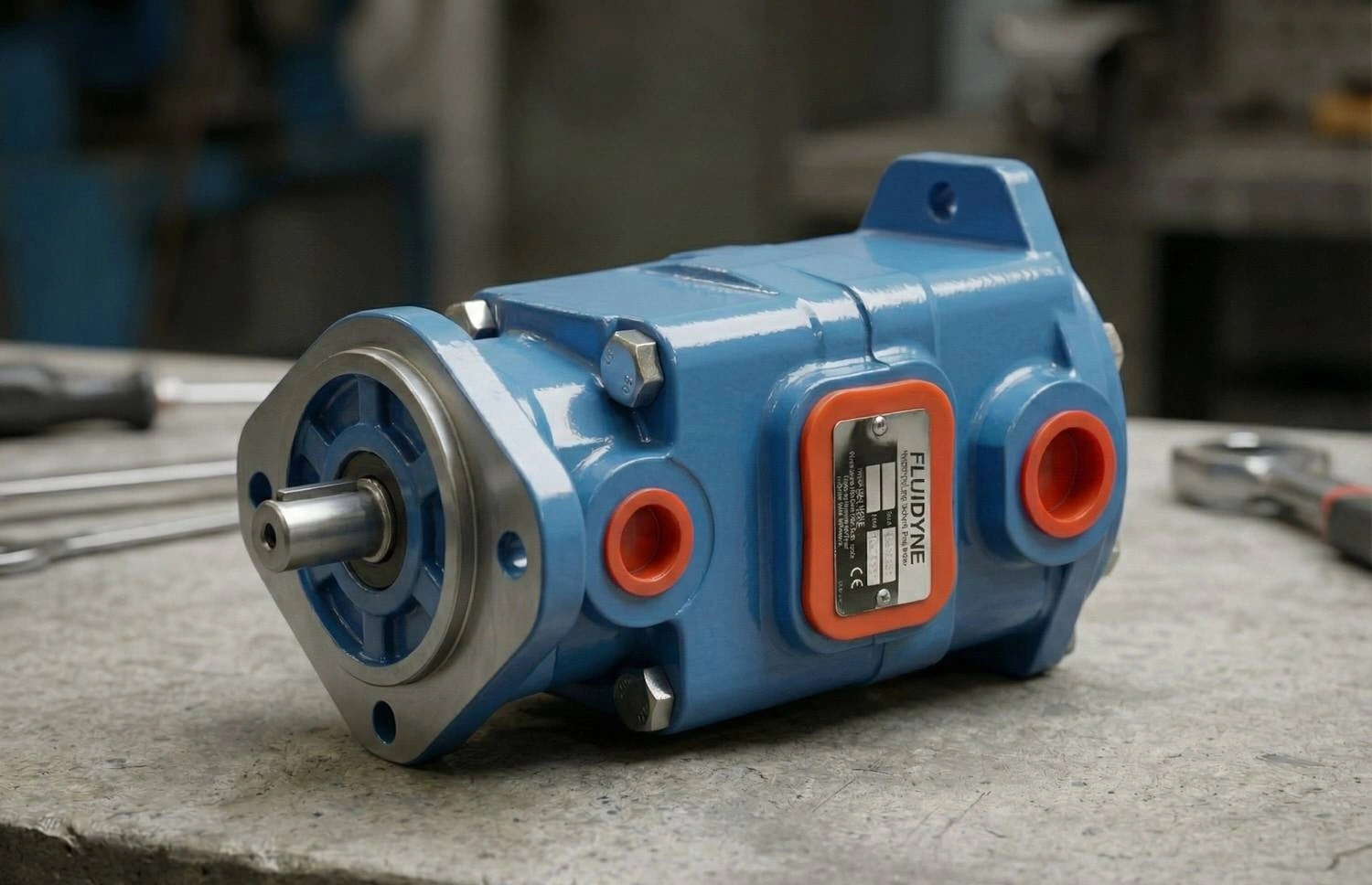

Fluidyne V20 WF8201424 Vane Pump | Replacement for Vickers/Eaton V201P8P38A11L 2.7 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
