| Weight | 18.0 lbs |
|---|---|
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 3000 RPM |
| Pumps Displacement | 29.7 cm³/r (1.81 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Purchasing Information
Availability & Delivery
Most single stage vane pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF8203060, view our hydraulic pumps catalog or call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Compatibility & Applications
Direct Replacement Information
The WF8203060 from Fluidyne replaces Vickers WF8203060 units in systems requiring 29.7 cm³/r (1.81 in³/r) displacement and up to 2500 PSI max pressure. This direct replacement offers 100% interchangeability, following SAE J744 mounting standards and supporting the same hydraulic performance. For more options, see our full line of Vickers replacement pumps..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in agricultural equipment, construction machinery, utility vehicles. For a higher displacement example in similar applications, see the V201P13P39C11R – FluiDyne V20 Pump case study.
- agricultural equipment
- construction machinery
- utility vehicles
Important: Verify pump model WF8203060 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.
Product Selection Guide
These Fluidyne V20 Series hydraulic vane pumps are all direct Vickers replacements and share SAE ‘A’ 2-bolt flange mounting, 2500 PSI max pressure, and similar porting. The main differences between the models lie in flow rate, displacement, port orientation, shaft style, rotation direction, and maximum speed. For specialized configurations, explore our pumps with integral valves. Understanding these differences helps ensure the best fit for system requirements, including flow demands, piping layout, and drive compatibility.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF8203060 (Current) | 9.4 GPM | 2500 PSI | 29.7 cm³/r (1.81 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203004 | 9.4 GPM | 2500 PSI | 29.7 cm³/r (1.81 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203031 | 5.7 GPM | 2500 PSI | 18.0 cm³/r (1.10 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203009 | 6.2 GPM | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203013 | 10.4 GPM | 2500 PSI | 32.8 cm³/r (2.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Flow Rate & Displacement
Difference: WF8203013 delivers the highest flow at 10.4 GPM (2.00 in³/rev), WF8203060 and WF8203004 are mid-range at 9.4 GPM (1.81 in³/rev), WF8203009 provides 6.2 GPM (1.19 in³/rev), and WF8203031 offers the lowest at 5.7 GPM (1.10 in³/rev). If you need a similar pump with 26.6 cm³/r displacement, see the V201P8P10D11R – FluiDyne V20 Pump.
Selection Guide: Select higher displacement models (WF8203013) for systems needing more rapid cylinder movement or higher throughput. Lower displacement (WF8203031, WF8203009) is better for smaller actuators or precise control.
Rotation Direction
Difference: WF8203060, WF8203004, and WF8203009 are right-hand (clockwise); WF8203013 and WF8203031 are left-hand (counter-clockwise).
Selection Guide: Match pump rotation to your drive/motor orientation. Incorrect rotation can result in pump failure.
Port Position
Difference: WF8203060 has ports 180° apart; WF8203004 ports are at 90° counter-clockwise; WF8203013, WF8203009, and WF8203031 have inline (0°) ports.
Selection Guide: Choose 180° or inline ports for straightforward plumbing; 90° ports if your installation requires an offset connection due to space constraints.
Shaft Style & Extension
Difference: WF8203060 features an 11-tooth splined shaft (1.25″ extension); others use a 3/4″ straight keyed shaft (1.75″ or 2.66″ extension).
Selection Guide: Use splined shafts (WF8203060) for high-torque or shock-load environments. Straight keyed shafts suit most standard couplings.
Maximum Speed
Difference: WF8203009 has the highest maximum speed (3400 RPM), WF8203060 and WF8203004 up to 2800 RPM, WF8203031 up to 3000 RPM, and WF8203013 up to 2500 RPM.
Selection Guide: For high RPM drives, select WF8203009 or WF8203060. Pumps in this series are part of our broader vane pump offering. If running at lower speeds, all models are suitable.
Port Size & Thread Type
Difference: Inlet/outlet threading varies: NPT threads on WF8203060, WF8203009, and WF8203031; straight thread (SAE/BSPP) on WF8203004 and WF8203013.
Selection Guide: Match thread type to your system’s plumbing for leak-free installation. NPT for tapered fittings, straight thread for O-ring/boss connections.
Quick Selection Guide
If you need: Highest flow and displacement (10.4 GPM / 2.00 in³/rev)
Choose: WF8203013
Because: Best for large actuators or rapid cycle applications with left-hand rotation.
If you need: Mid-range flow (9.4 GPM) with right-hand rotation and splined shaft
Choose: WF8203060
Because: Offers robust, high-torque shaft for demanding drives.
If you need: Mid-range flow (9.4 GPM) with right-hand rotation and straight keyed shaft
Choose: WF8203004
Because: Standard keyed shaft fits most couplings; 90° port orientation helps in tight spaces.
If you need: Moderate flow (6.2 GPM) at highest speed (3400 RPM)
Choose: WF8203009
Because: Ideal for high-speed, lower flow circuits with right-hand rotation.
If you need: Lowest flow (5.7 GPM) and left-hand rotation
Choose: WF8203031
Because: Suited for precise, low-volume circuits or small actuators.
Compatibility: All models use SAE ‘A’ 2-bolt flange mounting and are 100% interchangeable with Vickers V20, ensuring easy direct replacement in most hydraulic systems. For similar applications requiring higher displacement, review the V201P13P3A11R – FluiDyne V20 Pump. BSPP porting is consistent across models for simple hose and fitting swaps.
For model selection, installation, or cross-reference assistance, Northern Hydraulics hydraulic specialists are available Mon-Fri, 7 AM – 5 PM MST at (800) 823-4937. For additional product lines, visit our hydraulic pumps page.

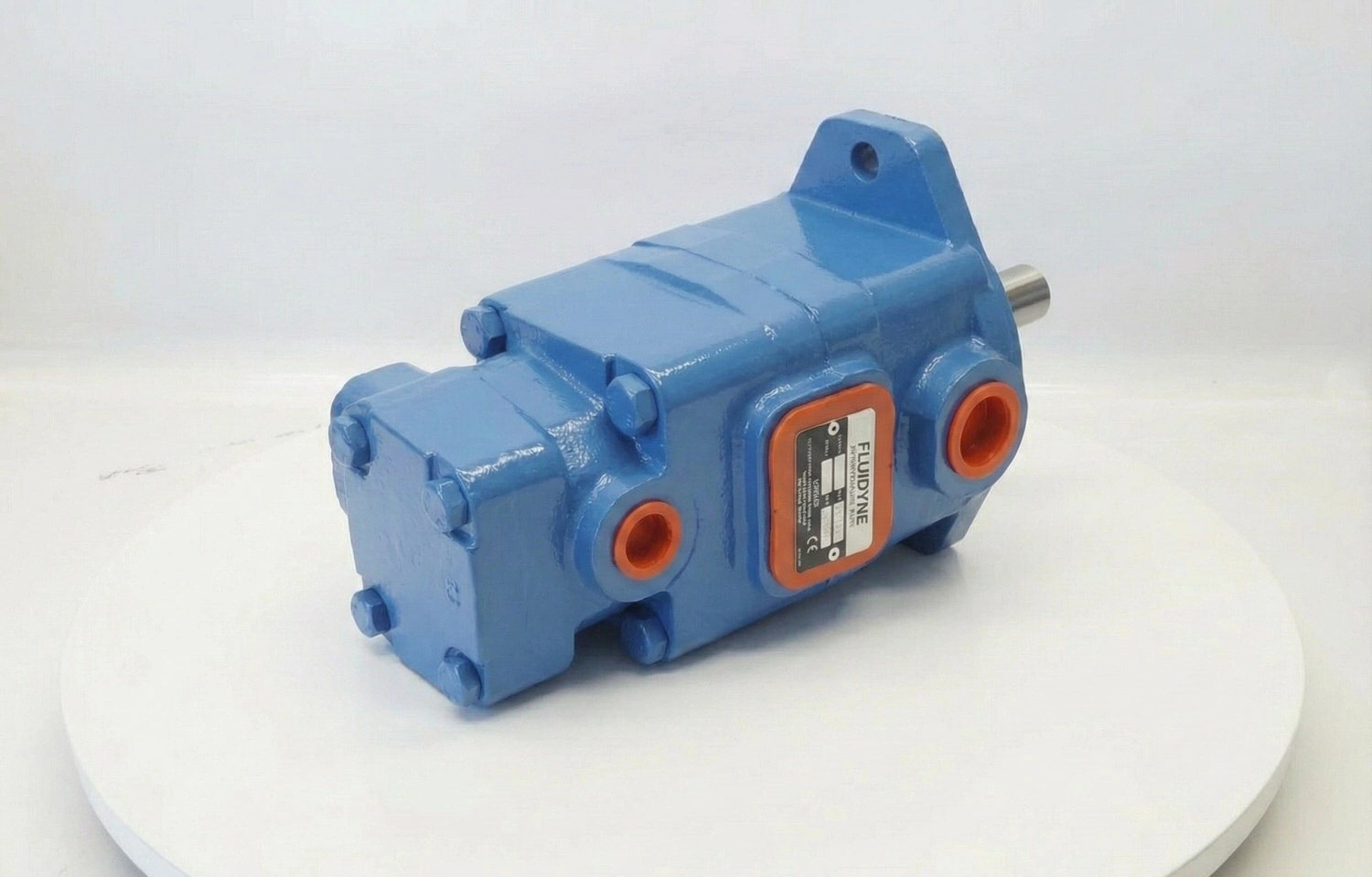

Fluidyne V20 WF8203060 Vane Pump | Replacement for Vickers/Eaton V201P9P38A11R 3.0 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
$289.00
In stock
No sales tax
Expected delivery Sep 17 - Sep 21
