| Weight | 18.0 lbs |
|---|---|
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key (1.75" extension) |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 3400 RPM |
| Pumps Displacement | 19.5 cm³/r (1.19 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Product Selection Guide
These five FluiDyne V20 Series single stage vane pumps are direct Vickers replacements, all offering SAE ‘A’ 2-bolt flange mounting and up to 2500 PSI pressure. The primary differences are flow rate, displacement, port orientation/size, shaft type, rotation direction, and maximum speed, letting you match pump performance to your system’s needs.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF8203009 (Current) | 6.2 GPM | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203060 | 9.4 GPM | 2500 PSI | 29.7 cm³/r (1.81 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203004 | 9.4 GPM | 2500 PSI | 29.7 cm³/r (1.81 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203031 | 5.7 GPM | 2500 PSI | 18.0 cm³/r (1.10 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8203013 | 10.4 GPM | 2500 PSI | 32.8 cm³/r (2.00 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Flow Rate
Difference: Models span from 5.7 GPM (WF8203031) up to 10.4 GPM (WF8203013) at 1200 RPM
Selection Guide: Select higher GPM models (WF8203013 for 10.4 GPM, WF8203060/3004 for 9.4 GPM) to supply larger cylinders or multiple actuators. Lower GPM (WF8203031 at 5.7 GPM) is best for smaller circuits or precise control.
Displacement
Difference: Displacement varies: 1.10 in³/r (WF8203031), 1.19 in³/r (WF8203009), 1.81 in³/r (WF8203060/3004), 2.00 in³/r (WF8203013)
Selection Guide: Larger displacement means more oil per revolution, suitable for systems needing higher volume per cycle.
Rotation Direction
Difference: WF8203009, WF8203060, WF8203004 are Right-Hand (clockwise); WF8203031, WF8203013 are Left-Hand (counter-clockwise)
Selection Guide: Match rotation to your drive motor direction: select right-hand for standard clockwise drives, left-hand for counter-clockwise systems.
Shaft Type & Length
Difference: WF8203060 uses an 11-tooth splined shaft (1.25″), others use 3/4″ straight keyed shafts (1.75″ or 2.66″ extension)
Selection Guide: Choose splined shaft (WF8203060) for high-torque or spline-coupled drives; use straight key for standard couplings.
Port Size & Orientation
Difference: Port sizes and positions vary: NPT and BSPP threads, inlet/outlet positions at 0°, 90°, or 180° relative to inlet
Selection Guide: Choose port orientation that best fits your hose routing: 0° (inline) for straight runs, 90° or 180° for tight installations. Ensure port sizes match your plumbing.
Maximum Speed
Difference: Max speed ranges from 2500 RPM (WF8203013) to 3400 RPM (WF8203009)
Selection Guide: For high-speed applications, select models like WF8203009 (up to 3400 RPM). For typical speeds (1200 RPM), any model is suitable.
Quick Selection Guide
If you need: A standard right-hand pump with moderate flow (6.2 GPM), compact size, and high speed (up to 3400 RPM)
Choose: WF8203009
Because: It provides reliable 6.2 GPM at 2500 PSI, fits SAE ‘A’ mounting, and supports higher RPM for versatile use.
If you need: Higher flow (9.4 GPM) with right-hand rotation and a splined shaft for high-torque couplings
Choose: WF8203060
Because: Offers 9.4 GPM, 2500 PSI, and an 11-tooth splined shaft suited for demanding drive applications.
If you need: Higher flow (9.4 GPM) with right-hand rotation and standard straight keyed shaft for conventional drives
Choose: WF8203004
Because: Matches the flow of WF8203060 but uses a straight keyed shaft, simplifying integration with standard couplers.
If you need: Lower flow (5.7 GPM) and left-hand rotation for counter-clockwise systems
Choose: WF8203031
Because: Ideal for compact, low-flow, or reverse-rotation hydraulic circuits.
If you need: Highest flow (10.4 GPM) and left-hand rotation
Choose: WF8203013 applications
Because: Best for applications requiring maximum volume and counter-clockwise drive.
Compatibility: All models are 100% Vickers replacement pumps interchangeable, use SAE J744 ‘A’ 2-bolt flange mounts, and offer G1″/G1/2″ BSPP straight-thread ports for seamless installation.
For pump selection, cross-referencing, or application troubleshooting, review our hydraulic pumps resources or speak with a hydraulic specialist at (800) 823-4937 (Mon-Fri, 7 AM – 5 PM MST). Volume pricing starts at 4 units and all pumps include a 12-month manufacturer warranty. Same-day shipping available on in-stock items.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF8203009, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment — for similar applications, see V201P13P40C11R – FluiDyne V20 Pump.
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available (see more vane pump technical resources)
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Compatibility & Applications
Direct Replacement Information
The Fluidyne WF8203009 is a direct replacement for Vickers WF8203009 hydraulic vane pumps, offering full interchangeability while maintaining identical performance and fitment. Review more Vickers-compatible vane pumps for cross-reference..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in mobile hydraulics, auxiliary power units, compact equipment. For other compact, high-flow models, see V201P13P39C11R – FluiDyne V20 Pump applications.
- mobile hydraulics
- auxiliary power units
- compact equipment
Important: Verify pump model WF8203009 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.

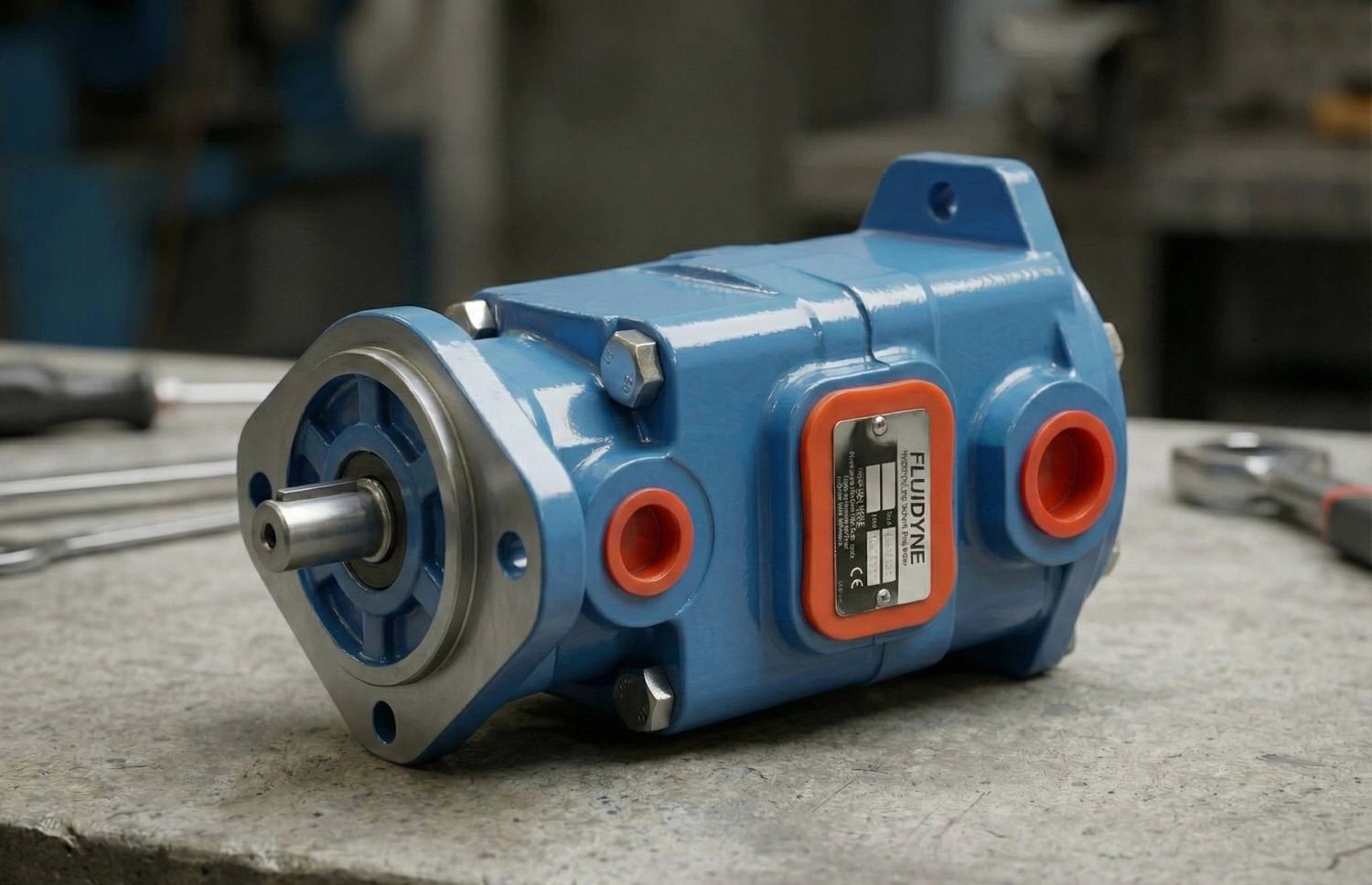

Fluidyne V20 WF8203009 Vane Pump | Replacement for Vickers/Eaton V201R6P1C11R 2.0 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
$299.20
In stock
No sales tax
Expected delivery Sep 18 - Sep 22
