| Manufacturer | Fluidyne Fluid Power |
|---|---|
| Pumps Max Pressure | 2,500 PSI |
| Pumps Rated Speed | 1,200 RPM |
| Pumps Max Speed | 4,000 RPM |
| Pumps Displacement | 19.5 cm³/r (1.19 in³/r) |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Right-Hand (Clockwise) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Shipping weight | 37 lb |
| Package size | 10 × 10 × 10 in |
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF825501, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Product Selection Guide
These vane pumps from FluiDyne’s V2020 series are all direct Vickers replacements (Vickers replacement pumps), but differ in total flow, port orientation, rotation direction, shaft type, and certain control features. The key to choosing the right model lies in matching your required flow rate, system rotation direction, port layout, and whether you need standard or pumps with integral valves for flow control options.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF825501 (Current) | 13 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825506 | 12 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825975 | 10 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825063 | 10 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825884 | 10 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Total Flow Rate
Difference: WF825501 delivers the highest total flow at 22.0 GPM (13 GPM front + 9 GPM rear), followed by WF825506 at 21.0 GPM (12 GPM front + 9 GPM rear). WF825975, WF825063, and WF825884 each deliver 10.0 GPM (front pump only, rear pump inactive), such as the V20201F10S10S11AA30L – FluiDyne V2020 applications.
Selection Guide: For applications needing higher combined flow or dual-circuit operation, select WF825501 or WF825506. For lower-flow, single-circuit needs, choose WF825975, WF825063, or WF825884.
Pump Configuration / Control
Difference: WF825506 includes flow control with internal drain, allowing for pressure settings and specialized circuit requirements. The other models are standard double pumps.
Selection Guide: If your system requires integrated flow control or dedicated internal drainage, WF825506 is the best choice. For other single stage vane pumps, see available models.
Rotation Direction
Difference: WF825501 and WF825506 are right-hand (clockwise). WF825063 is also right-hand (clockwise), while WF825975 and WF825884 are left-hand (counter-clockwise).
Selection Guide: Match the pump rotation to your system’s drive direction—choose right-hand models for clockwise-driven applications and left-hand for counter-clockwise.
Port Orientation
Difference: WF825501 and WF825506 have both outlets 90° CCW from inlet. WF825975 and WF825063 have outlets opposite inlet (180°). WF825884 has outlets inline with inlet (0°).
Selection Guide: Select the model with port orientation that best fits your piping layout. 90° outlets are ideal for side connections; 180° or 0° for straight or opposite porting.
Shaft Type
Difference: WF825501 and WF825506 feature straight keyed shafts. WF825975, WF825063, and WF825884 list 13-tooth splined shafts in their descriptions but also reference straight keyed shaft in the summary specs.
Selection Guide: For high-torque or splined coupling systems, choose models with splined shafts. Users seeking similar performance may also consider the V201P5P18C11R – FluiDyne V20 Pump. For standard couplings, straight keyed shafts are suitable.
Maximum Speed
Difference: WF825501 and WF825506 operate up to 2400 RPM (limited by front pump). WF825975, WF825063, and WF825884 are limited to 1800 RPM (by rear pump).
Selection Guide: If your drive runs above 1800 RPM, select WF825501 or WF825506.
Quick Selection Guide
If you need: Highest combined flow (22.0 GPM) for dual-circuit systems
Choose: WF825501
Because: It delivers the greatest total flow with a balanced front/rear output and 2400 RPM max speed.
If you need: Integrated flow control with internal drain and adjustable pressure
Choose: WF825506
Because: It offers a built-in control valve for precise flow/pressure management.
If you need: 10 GPM output with counter-clockwise (left-hand) rotation
Choose: WF825975 or WF825884
Because: These models match left-hand drives, with port orientation options for your layout.
If you need: 10 GPM output with clockwise (right-hand) rotation
Choose: WF825063
Because: This model matches right-hand rotation for standard drive systems.
If you need: Specific porting orientation (0°, 90°, 180°) to match piping
Choose: WF825501/WF825506 for 90°, WF825975/WF825063 for 180°, WF825884 for 0°
Because: Choose based on your required piping direction for easiest installation.
Compatibility: All models comply with SAE ‘A’ 2-bolt flange mounting and G1″/G1/2″ BSPP straight thread ports. They are 100% interchangeable with Vickers V2020 double vane pumps, ensuring direct replacement in existing hydraulic systems. For similar applications, see V201P13P3C11R – FluiDyne V20 Pump.
For detailed pump selection, cross-reference, or installation guidance—including the full range of vane pumps—technical support is available Mon-Fri, 7 AM – 5 PM MST at (800) 823-4937.
Compatibility & Applications
Direct Replacement Information
The Fluidyne WF825501 is a direct replacement for Vickers WF825501, offering 100% interchangeability for systems that require a displacement of 19.5 cm³/r (1.19 in³/r) and up to 2500 PSI operation..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in industrial machinery applications, material handling, and production equipment.
- industrial machinery
- material handling
- production equipment
Important: Verify pump model WF825501 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937 or explore more Vickers replacement pumps.

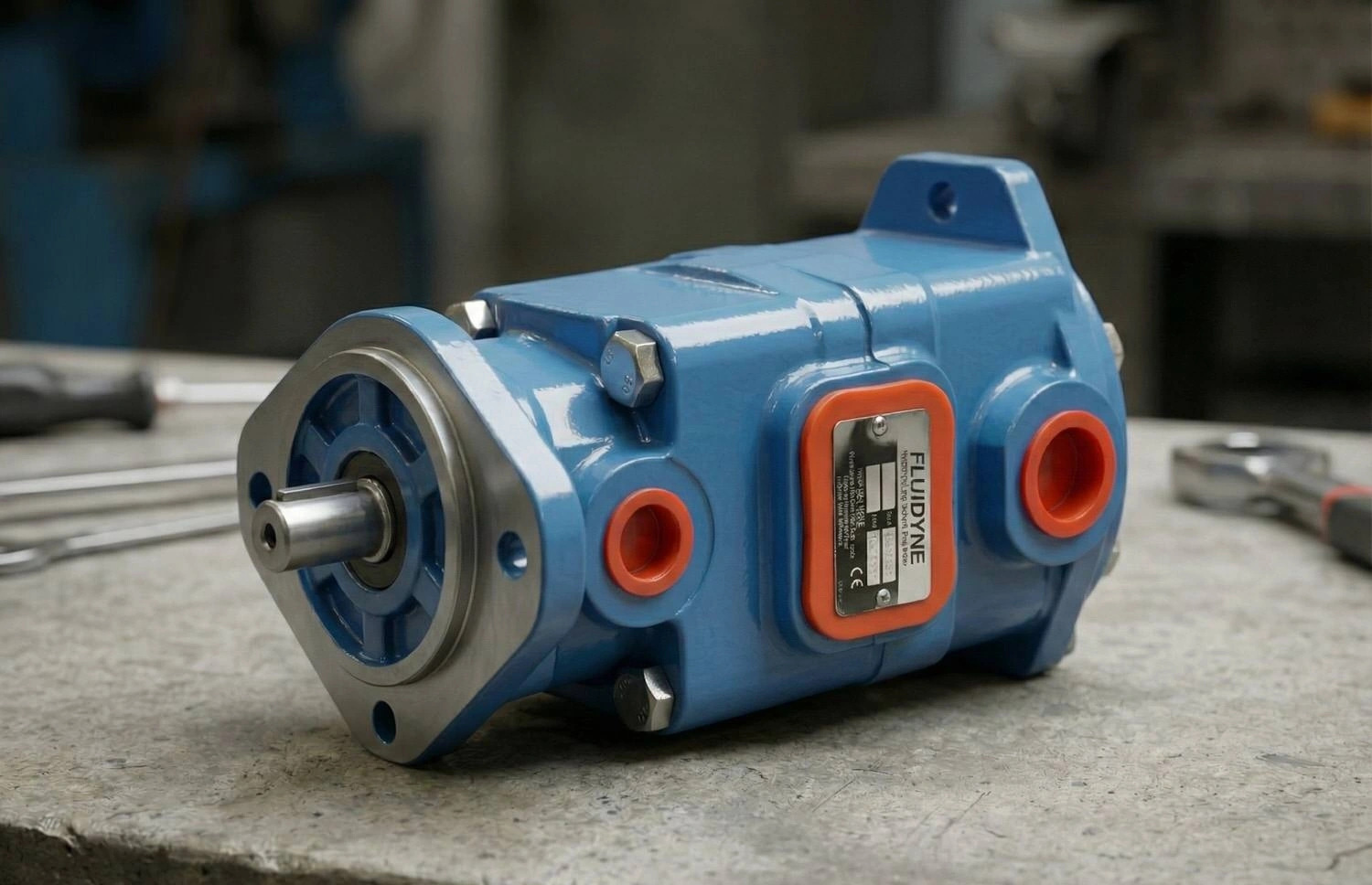

Fluidyne V2020 WF825501 Vane Pump | Replacement for Vickers/Eaton V2020-V20201F13S9S1BB30R 22.0 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
