| Weight | 37.0 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Left-Hand (Counter-Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4000 RPM |
| Pumps Displacement | 19.5 cm³/r (1.19 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Compatibility & Applications
Direct Replacement Information
This Fluidyne unit serves as a direct replacement for Vickers WF825562 in systems requiring a 19.5 cm³/r (1.19 in³/r) displacement pump, 2500 PSI maximum pressure, and V2020 series compatibility..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in marine applications, stationary power units, test stands.
- marine applications
- stationary power units
- test stands
Important: Verify pump model WF825562 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.
Product Selection Guide
The provided FluiDyne V2020 double vane pump models are all direct Vickers replacements with the same maximum pressure rating (2500 PSI), but differ primarily in flow rates, total displacement, port orientation, shaft type, rotation, and max speed. Model numbers reflect these technical distinctions, which affect suitability for specific hydraulic system requirements.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF825562 (Current) | 13 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825569 | 6 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825975 | 10 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825063 | 10 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825884 | 10 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Total Flow Rate
Difference: WF825562 offers the highest combined flow at 22.0 GPM (front: 13 GPM, rear: 9 GPM), while WF825569 delivers 13.0 GPM (front: 6 GPM, rear: 7 GPM), and the remaining three models provide 10.0 GPM total (front: 10 GPM, rear: 0 GPM).
Selection Guide: Select WF825562 for systems requiring the highest total flow. Choose WF825569 for moderate, balanced dual flows. Use WF825975, WF825063, or WF825884 when a single section flow suffices or for applications needing two circuits but only one active at a time.
Pump Section Configuration
Difference: WF825562 and WF825569 have both pump sections active (front & rear flows), while , WF825063, and WF825884 have only the front pump section with the rear section at 0 GPM.
Selection Guide: Choose dual-active models (WF825562, WF825569) for simultaneous dual flow circuits—ideal for Hi-Lo systems. Opt for single-active models when you only need one functional flow or want a simplified setup.
Maximum Speed (RPM)
Difference: WF825569 runs up to 3000 RPM, WF825562 up to 2400 RPM, and , WF825063, WF825884 up to 1800 RPM (limited by rear pump section).
Selection Guide: For high-speed drives, use WF825569. For standard industrial speeds, WF825562 is suitable. For lower speed systems, select any of , WF825063, WF825884.
Shaft Type
Difference: WF825562 uses a straight keyed shaft; WF825569, , WF825063, and WF825884 use 13-tooth splined shafts.
Selection Guide: Use a straight keyed shaft (WF825562) for standard couplings; choose splined shafts (others) for high-torque or vibration-sensitive connections.
Rotation
Difference: WF825562 and , WF825884 are left-hand (counter-clockwise); WF825569 and WF825063 are right-hand (clockwise).
Selection Guide: Match the pump rotation to your system drive direction—ensure left-hand for CCW, right-hand for CW shaft input.
Port Orientation
Difference: WF825562: both outlets 90° CW from inlet; WF825569: outlets inline with inlet (0°); & WF825063: outlets opposite inlet (180°); WF825884: outlets inline (0°).
Selection Guide: Select the port orientation that best matches your piping layout—inline for straight-through connections, 90° or 180° for space-constrained or specific routing.
Design Series
Difference: All models are design series 30.
Selection Guide: No selection impact; ensures consistent parts and maintenance.
Quick Selection Guide
If you need: Maximum total flow (22.0 GPM) and two active circuits
Choose: WF825562
Because: Provides the highest combined flow, suitable for demanding dual-circuit systems.
If you need: Moderate, balanced dual flows with high RPM capability
Choose: WF825569
Because: Offers 6 GPM + 7 GPM (13.0 GPM total) and supports up to 3000 RPM.
If you need: Single active flow section with 10.0 GPM total and specific port or rotation needs
Choose: , WF825063, or WF825884
Because: Ideal for simple circuits or applications where only one pump section is needed (see also our single stage vane pumps for simpler systems). Choose based on required rotation (left or right-hand) and port orientation (inline or opposite).
Compatibility: All models feature SAE ‘B’ 4-bolt flange mounting and 1-1/16″-12 thread ports, ensuring 100% interchangeability with Vickers V2020 pumps. and 1-1/16″-12 thread ports, ensuring 100% interchangeability with Vickers V2020 pumps. All are designed to meet SAE J744 standards.
For tailored model selection and hydraulic system advice, consult Northern Hydraulics technical specialists at (800) 823-4937, Mon-Fri, 7 AM – 5 PM MST.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF825562, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing or browse our full selection of hydraulic pumps for more options. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937

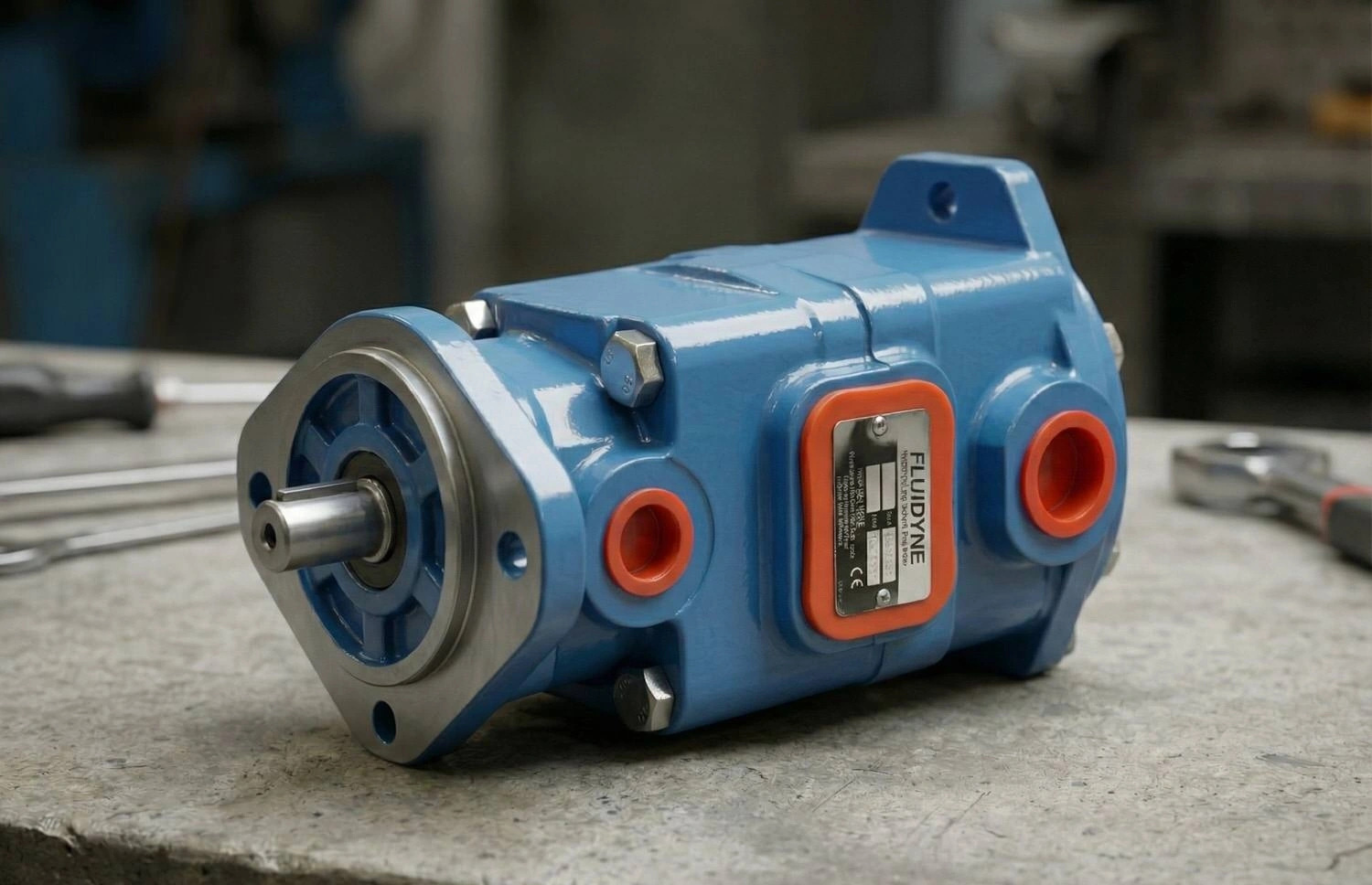

Fluidyne V2020 WF825562 Vane Pump | Replacement for Vickers/Eaton V2020-V20201F13S9S1DD30L 2.0 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
