| Weight | 40.0 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Left-Hand (Counter-Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4000 RPM |
| Pumps Displacement | 19.5 cm³/r (1.19 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Product Selection Guide
These Fluidyne V2020 double vane pump models are differentiated primarily by their flow rates, pressure settings, port orientations, shaft types, and mounting configurations. While all are direct Vickers replacements and share core dimensions and interchangeability, the specific flow capabilities and mechanical features make each model better suited to different hydraulic applications.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF825617 (Current) | 9 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825615 | 13 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825611 | 6 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825553 | 11 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825535 | 11 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Total Flow Rate
Difference: WF825617 delivers the highest total flow at 18.0 GPM (9 GPM + 9 GPM), WF825615 and WF825611 provide 14.0 GPM, and WF825553/WF825535 each deliver 12.0 GPM.
Selection Guide: Select WF825617 for applications needing the highest combined flow (such as systems with larger actuators or simultaneous operation of two circuits). Choose WF825615 or WF825611 for medium flow requirements, and WF825553 or WF825535 for lower demand systems.
Pressure Setting
Difference: WF825617, WF825615, and WF825611 are rated for 2500 PSI. WF825553 is set at 1000 PSI and WF825535 at 1500 PSI.
Selection Guide: Choose WF825617, WF825615, or WF825611 for high-pressure needs (up to 2500 PSI). Use WF825553 or WF825535 if system pressure is limited or if lower pressure is required for specific components.
Port Orientation
Difference: WF825617 and WF825611: both outlets inline with inlet (0°); WF825615: both outlets opposite inlet (180°); WF825553: 90° CW from inlet; WF825535: front outlet 90° CCW, rear outlet inline.
Selection Guide: Select port orientation based on your piping layout. Inline ports (WF825617, WF825611) simplify straight-through plumbing; 90° or 180° options (WF825615, WF825553, WF825535) are ideal for tight spaces or specific manifold arrangements.
Shaft Type
Difference: WF825617, WF825615, WF825553: 13-Tooth splined shaft; WF825611, WF825535: straight keyed shaft.
Selection Guide: Splined shafts (WF825617, WF825615, WF825553) are best for high-torque or shock-load environments. Straight keyed shafts (WF825611, WF825535) are suitable for standard coupling applications.
Maximum Speed
Difference: WF825617 and WF825611 allow up to 2800 RPM; WF825615, WF825553, and WF825535 are limited to 1800 RPM.
Selection Guide: Opt for WF825617 or WF825611 if your system requires higher pump speeds for faster cycle rates.
Mounting Flange
Difference: WF825617, WF825553, WF825535 use SAE ‘B’ 4-bolt flange; WF825615, WF825611 use SAE ‘A’ 2-bolt flange.
Selection Guide: Match flange type to your existing motor or adapter: use ‘B’ for heavier-duty or larger frame motors, ‘A’ for standard installations.
Pump Rotation
Difference: WF825611 is right-hand (clockwise); all others are left-hand (counter-clockwise).
Selection Guide: Ensure you select the correct rotation to match your drive system—incorrect rotation can cause pump failure.
Quick Selection Guide
If you need: Highest total flow (18.0 GPM) at up to 2500 PSI and up to 2800 RPM
Choose: WF825617
Because: It provides the most flow for demanding dual-circuit or Hi-Lo applications and supports high-speed operation.
If you need: Medium flow (14.0 GPM) with specific port orientation (180°) and splined shaft
Choose: WF825615
Because: It suits installations requiring both outlets opposite the inlet and higher torque shaft connection.
If you need: Medium flow (14.0 GPM) with inline (0°) ports and right-hand rotation
Choose: WF825611
Because: This is the only right-hand (clockwise) model and offers higher speed capability.
If you need: Lower flow (12.0 GPM) with 90° or mixed port orientation and a lower pressure setting (1000 or 1500 PSI)
Choose: WF825553 or WF825535
Because: These are ideal for lower pressure systems with space constraints needing 90° outlet options.
Compatibility: All models are direct Vickers replacements applications and 100% interchangeable, follow SAE J744 mounting standards, and use G1″/G1/2″ BSPP ports for easy integration.
For detailed application support, hydraulic specialists are available at (800) 823-4937, Mon-Fri, 7 AM – 5 PM MST. All pumps ship same-day if in stock and include a 12-month manufacturer warranty. Volume pricing available starting at 4 units.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF825617, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Compatibility & Applications
Direct Replacement Information
Designed as a direct replacement for Vickers WF825617, this Fluidyne V2020F series pump provides 19.5 cm³/r (1.19 in³/r) displacement and supports continuous operation up to 2500 PSI. Benefit from seamless interchangeability and same-day shipping on in-stock units from Northern Hydraulics..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in lifting equipment, conveyor systems, processing machinery.
- lifting equipment
- conveyor systems
- processing machinery
Important: Verify pump model WF825617 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.

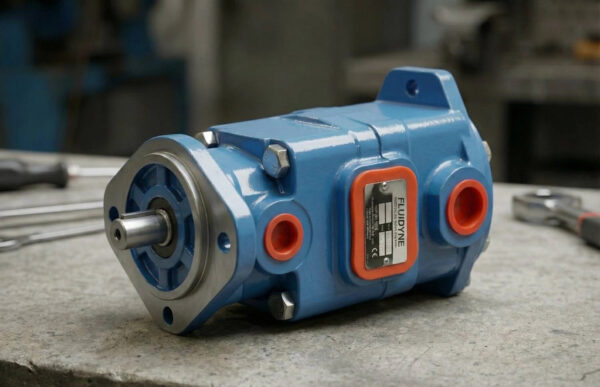

Fluidyne V2020 WF825617 Vane Pump | Replacement for Vickers/Eaton V2020F-V2020F1F9S9S11CC3H30L 2.0 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
$868.70
Ready to order
No sales tax
Expected delivery Oct 13 - Oct 19
Get an exact shipping rate for your ZIP in the cart
Secure checkoutEncrypted card payments · pay over time with Affirm, Klarna or Afterpay
