| Weight | 40.0 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Manufacturer | Fluidyne Fluid Power |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key (1.75" extension) |
| Pumps Rotation | Left-Hand (Counter-Clockwise) |
| Pumps Max Pressure | 2500 psi |
| Pumps Rated Speed | 1200 RPM |
| Pumps Max Speed | 4000 RPM |
| Pumps Displacement | 19.5 cm³/r (1.19 in³/r) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
Product Selection Guide
The FluiDyne V2020 series double vane pumps compared here all offer direct Vickers interchangeability, robust 2500 PSI ratings, and similar SAE ‘A’ 2-bolt mounting with G1″/G1/2″ BSPP ports. For a broader overview, see our vane pumps selection. The primary differences are in flow rates, pump section outputs, rotation, shaft types, port orientation, and speed limits—each impacting suitability for specific hydraulic system requirements. If you’re seeking single stage vane pumps for simpler systems, explore our dedicated category.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF825690 (Current) | 9 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| V2020P1F11S6T1DD4F30R – FluiDyne V2020P (19.5 cm³/r (1.19 in³/r)) | 11 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825692 | 12 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825693 | 6 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF825697 | 8 | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Front/Rear Pump Flow Rates
Difference: Front pump flow ranges from 6 to 12 GPM (models WF825693–WF825692), rear pump from 1 to 9 GPM (WF825690–WF825697). Total flow spans 10 to 20 GPM.
Selection Guide: Pick higher total flow (WF825692: 20 GPM) for systems needing more aggregate output; lower flow (WF825690: 10 GPM) for smaller actuators or circuits.
Maximum Speed
Difference: Models are limited by either the front or rear pump: WF825690 and WF825693 max at 1800 RPM (rear section), others at 2400–2800 RPM (front section).
Selection Guide: Select higher RPM models (WF825692, WF825697) for applications with faster drive speeds.
Rotation Direction
Difference: WF825690 is left-hand (counter-clockwise), others are right-hand (clockwise).
Selection Guide: Choose rotation to match your hydraulic drive—most systems use right-hand (WF825692, WF825693, WF825697, WF825699); left-hand (WF825690) for specialized setups.
Shaft Type
Difference: WF825690 uses a 13-tooth splined shaft; other models use 3/4″ straight keyed shafts.
Selection Guide: Use splined shaft (WF825690) for higher torque or where splined couplings are required; keyed shafts for standard couplings.
Port Orientation
Difference: WF825690: front outlets inline (0°), rear opposite (180°); WF825692/ WF825693: both outlets opposite inlet (180°); WF825697: both outlets 90° CCW; WF825699: both outlets 90° CW.
Selection Guide: Select porting based on installation layout—inline for straight piping, 90° variants for space constraints.
Displacement
Difference: Front pump displacement ranges: 1.19–2.41 in³/rev, rear: 1.19–1.81 in³/rev.
Selection Guide: Higher displacement (WF825692) for greater oil delivery per revolution; lower for finer flow control.
Quick Selection Guide
If you need: Highest total flow (20 GPM) and displacement
Choose: WF825692
Because: Best for large-volume circuits or dual-function applications requiring substantial flow.
If you need: Compact system with a small secondary circuit (1 GPM rear section)
Choose: WF825690
Because: Ideal for priority flow situations or powering an auxiliary function with minimal secondary flow.
If you need: Balanced dual outputs (8 GPM front, 9 GPM rear) with higher RPM capability
Choose: WF825697
Because: Suited for systems needing similar flows to two circuits at up to 2800 RPM.
If you need: Lowest total flow for precise, low-volume circuits
Choose: WF825693
Because: Best for applications with limited oil demand and where fine control is needed.
If you need: Right-hand rotation and higher front section flow (11 GPM)
Choose: WF825699
Because: Fits standard drive direction with a larger primary circuit.
Compatibility: All models are 100% interchangeable with Vickers double vane pumps, use SAE ‘A’ 2-bolt mounting, and common BSPP threads for quick retrofit and replacement.
For help with model selection, cross-referencing, or troubleshooting, hydraulic specialists are available Mon-Fri, 7 AM – 5 PM MST at (800) 823-4937. View all hydraulic pumps to compare additional options.
Compatibility & Applications
Direct Replacement Information
The Fluidyne WF825690 is a direct replacement for the Vickers WF825690 hydraulic vane pump, offering 100% interchangeability in systems requiring a displacement of 19.5 cm³/r (1.19 in³/r), 2500 PSI max pressure, and 1200 RPM rated speed. This model is ideal for installations built to Vickers standards, ensuring seamless fit and reliable performance..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in mobile hydraulics applications, auxiliary power units, compact equipment.
- mobile hydraulics
- auxiliary power units
- compact equipment
Important: Verify pump model WF825690 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF825690, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937

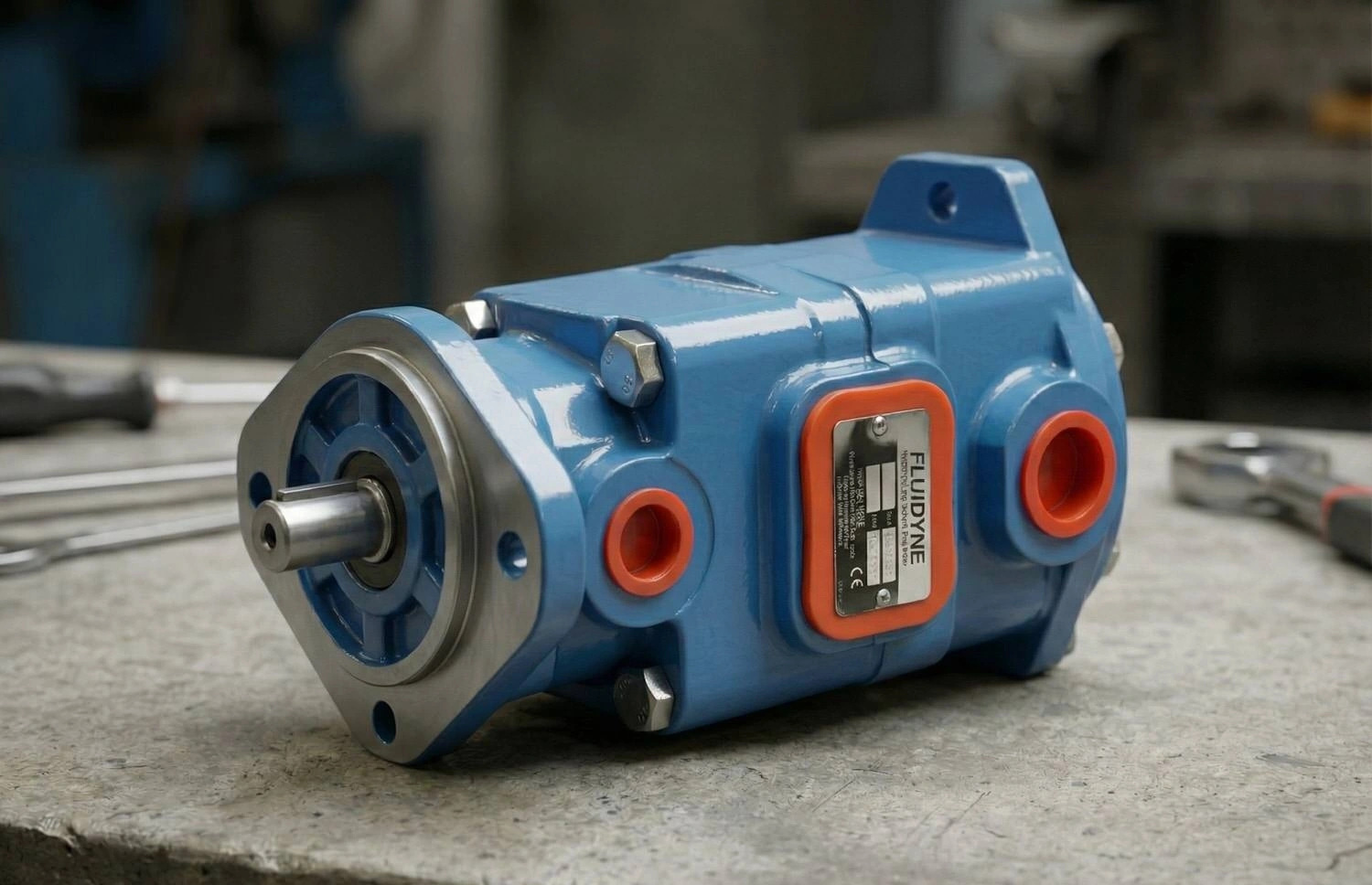

Fluidyne V2020 WF825690 Vane Pump | Replacement for Vickers/Eaton V2020P-V2020P1F9S11T11CA7D30L 2.0 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
