| Manufacturer | Fluidyne Fluid Power |
|---|---|
| Pumps Max Pressure | 2,500 PSI |
| Pumps Rated Speed | 1,200 RPM |
| Pumps Max Speed | 3,200 RPM |
| Pumps Displacement | 26.6 cm³/r (1.62 in³/r) |
| Pumps Drive Shaft | 3/4" Straight Shaft with Key |
| Pumps Rotation | Left-Hand (Counter-Clockwise) |
| Pumps Ports In | G1" BSPP Straight Thread |
| Pumps Ports Out | G1/2" BSPP Straight Thread |
| Pump Mounting Flange | 2-Bolt Flange (SAE "A" size) |
| Shipping weight | 23 lb |
| Package size | 10 × 10 × 10 in |
Purchasing Information
Availability & Delivery
Most hydraulic pumps ship within 1-2 business days. Made-to-order items typically require 5-7 business days.
For current availability on WF8202205 or similar vane pumps, call (800) 823-4937.
Warranty & Protection
- 12-month warranty covers manufacturing defects
- 30-day return window for unopened units
- Free technical verification before ordering
- Each pump pressure tested before shipment
Ordering Options
Order online for immediate processing. Phone orders welcome at (800) 823-4937.
Net 30 terms available for approved accounts.
Volume pricing available on orders of 4 or more units. For OEM needs, view our Vickers replacement pumps for broader compatibility.
Support & Documentation
- Installation guide included with every shipment
- Technical drawings and specifications available; see detailed specs for V201P13P39C11R – FluiDyne V20 Pump for comparison.
- Cross-reference guides for common brands
- Phone support: Monday-Friday, 7 AM – 5 PM MST
Questions? Call our specialists: (800) 823-4937
Product Selection Guide
The Fluidyne V20 Series hydraulic vane pumps listed here differ primarily by flow rate, displacement, rotation direction, shaft configuration, port orientation, and inlet/outlet thread type. For applications requiring integrated features, explore our pumps with integral valves. All models are direct replacements for Vickers pumps, fully SAE J744 compliant, and offer up to 2500 PSI max pressure. These specific differences allow for precise matching to system requirements, including flow needs, space constraints, piping layouts, and drive type.
?? Important: The specifications shown are for reference and comparison purposes. Always verify specifications with the official manufacturer documentation or contact our technical team at (800) 823-4937 before ordering to ensure compatibility with your application. We cannot accept returns due to specification mismatches.
| Model Number | Flow Rate | Max Pressure | Displacement | Mounting |
|---|---|---|---|---|
| WF8202205 (Current) | 8.4 GPM | 2500 PSI | 26.6 cm³/r (1.62 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8202297 | 13.5 GPM | 2500 PSI | 42.6 cm³/r (2.60 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF820229 | 13.5 GPM | 2500 PSI | 42.6 cm³/r (2.60 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF8202267 | 6.2 GPM | 2500 PSI | 19.5 cm³/r (1.19 in³/r) | 2-Bolt Flange (SAE “A” size) |
| WF820228 | 8.4 GPM | 2500 PSI | 26.6 cm³/r (1.62 in³/r) | 2-Bolt Flange (SAE “A” size) |
Key Differences
Flow Rate & Displacement
Difference: Flow rates range from 6.2 GPM (WF8202267) to 13.5 GPM (WF820229, WF8202297), with corresponding displacements from 1.19 in³/r to 2.60 in³/r. For models with comparable specs, review V201P8P10D11R – FluiDyne V20 Pump.
Selection Guide: Choose higher displacement/flow models (WF820229, WF8202297) for circuits needing more volume; select lower displacement/flow models (WF8202267) for smaller actuators or tighter flow control. For similar applications, consider V201P13P62C11L – FluiDyne V20 Pump.
Rotation Direction
Difference: WF8202205 is Left-Hand (Counter-Clockwise); all others are Right-Hand (Clockwise).
Selection Guide: Choose based on your drive rotation—match the pump’s rotation to your system’s input shaft.
Port Orientation
Difference: WF8202205 and WF8202297 have ports inline with the inlet (0°); WF820229, WF8202267, WF820228 have ports opposite the inlet (180°).
Selection Guide: Inline ports (0°) simplify straight-line plumbing; 180° orientation helps in space-limited or specific manifold layouts.
Inlet/Outlet Thread Type & Size
Difference: WF8202205 uses 1-5/8″-12 and 1-1/16″-12 straight threads; others use 1-1/4″ NPT or G1″ BSPP for inlet and 3/4″ NPT or G1/2″ BSPP for outlet.
Selection Guide: Match port threads to your existing hose/fitting standard (NPT for US piping; BSPP for international or metric systems).
Shaft Configuration
Difference: Various shaft extensions and codes (standard 3/4″ straight key, special configurations, different extension lengths).
Selection Guide: Longer shaft extensions or special codes may be needed for certain couplings or mounting depths—verify compatibility with your drive.
Maximum Speed
Difference: WF8202267 supports up to 3000 RPM; others max at 2400-2800 RPM.
Selection Guide: Choose WF8202267 for systems running at higher speeds.
Quick Selection Guide
If you need: 8 GPM at 1200 RPM with left-hand rotation and inline ports
Choose: WF8202205
Because: It is the only model with left-hand rotation and inline ports; matches Vickers V20 with these specs.
If you need: 13.5 GPM at 1200 RPM, right-hand rotation, and inline ports
Choose: WF8202297
Because: It offers the highest flow rate with right-hand rotation and inline ports.
If you need: 13.5 GPM at 1200 RPM, right-hand rotation, ports opposite inlet
Choose: WF820229
Because: Same flow as WF8202297 but with 180° port orientation for different plumbing arrangements.
If you need: 7 GPM, high speed (up to 3000 RPM), right-hand rotation, and compact displacement
Choose: WF8202267
Because: Ideal for systems with high-speed drives and moderate flow requirements.
If you need: 8 GPM at 1200 RPM, right-hand rotation, ports opposite inlet
Choose: WF820228
Because: Matches WF8202205’s flow but with right-hand rotation and 180° port orientation.
Compatibility: All models utilize SAE ‘A’ 2-bolt flange mounting and are 100% Vickers V20-compatible, ensuring straightforward interchangeability. For the full product range, visit our Vickers replacement pumps page. G1″/G1/2″ BSPP ports are standard across most models for global integration.
For model selection, cross-referencing, or application troubleshooting, hydraulic specialists are available at (800) 823-4937 applications, Monday-Friday, 7 AM – 5 PM MST. For a complete overview of hydraulic pumps and technical guides, browse our resource center.
Compatibility & Applications
Direct Replacement Information
The WF8202205 from Fluidyne is a direct replacement for Vickers WF8202205, offering 26.6 cm³/r (1.62 in³/r) displacement and supporting up to 2500 PSI. See more vane pumps in our lineup. This model delivers reliable performance for systems built around V20 series vane pump specifications..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
Common Applications
Commonly used in agricultural equipment, construction machinery, utility vehicles. For field-proven performance, check our single stage vane pumps applications case studies.
- agricultural equipment
- construction machinery
- utility vehicles
Important: Verify pump model WF8202205 matches your existing Vickers unit before ordering. For technical assistance, contact (800) 823-4937.

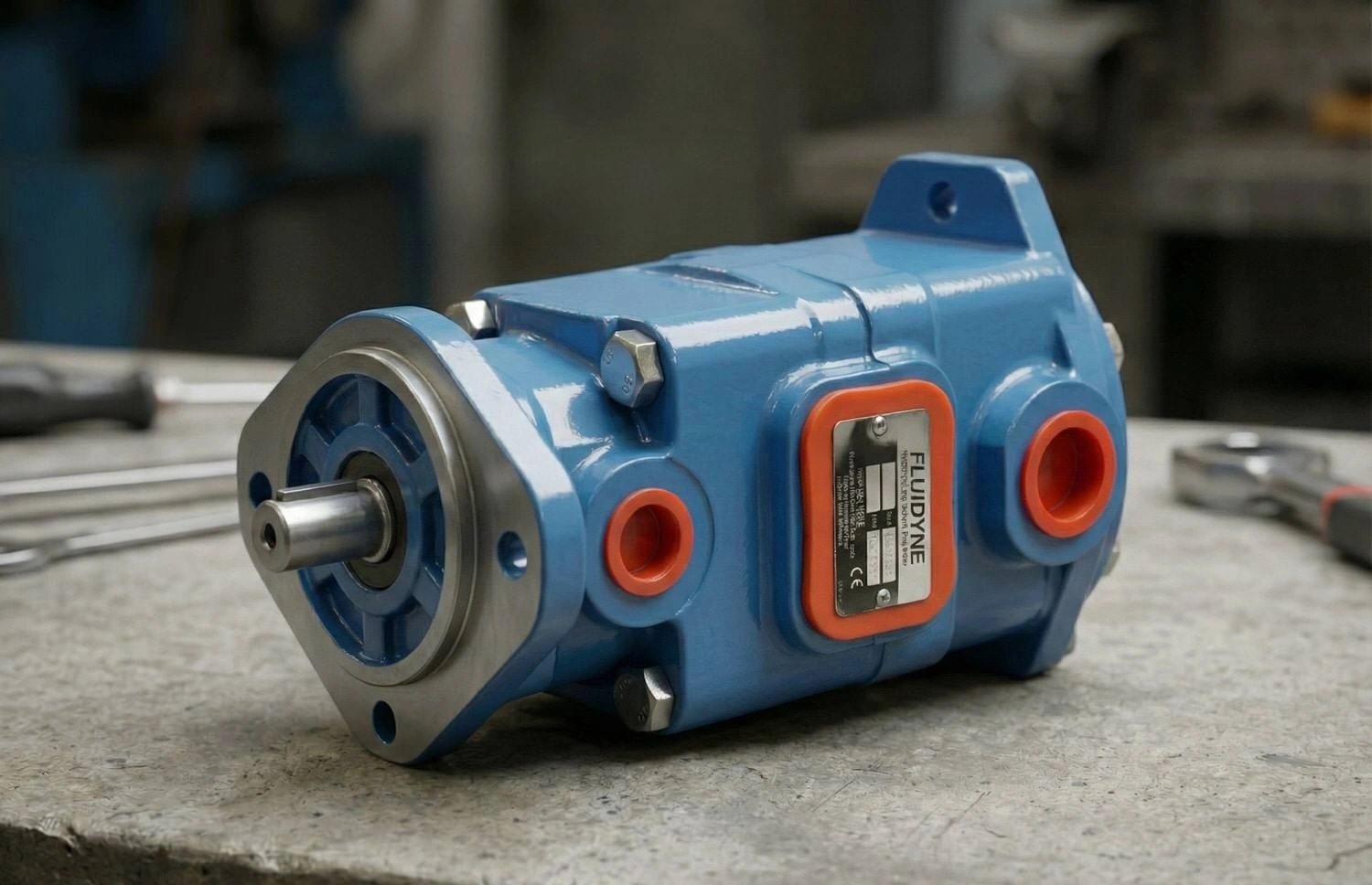

Fluidyne V20 WF8202205 Vane Pump | Replacement for Vickers/Eaton V206S8S15C11L 2.7 GPM | 2500 PSI | SAE ‘A’ 2-Bolt | 3/4″ Keyed Shaft
