High Pressure 10,000 PSI Cylinder and Pump Sets

Looking for help or a discount?

Call (800) 823-4937

Enerpac 10,000 psi cylinder and pump sets ship as matched high-tonnage cylinder + pump combos, so the cylinder, pump, hose, and coupler are rated to the same 10,000 PSI (700 bar) working pressure with no mismatched components to spec out separately. Browse the series below by job type, or send your specs for a cross-reference on a discontinued set.

Shop by High Pressure 10,000 PSI Cylinder and Pump Sets Category:

Enerpac SCL-Series, Cylinder Pump Sets

Enerpac SCR-Series, Cylinder Pump Sets

Enerpac SRS-Series, Portable Hydraulic Toolbox

Serving hydraulics since 1963
15,000+ parts ready to order from Black Eagle, MT
Call (800) 823-4937

How to Choose a 10,000 PSI Cylinder and Pump Set

A set is sized by the cylinder it carries, then matched to a pump that can fill that cylinder's oil volume at full stroke. Confirm these specs before you order:

Working PSI — Enerpac high-pressure sets run at 10,000 PSI (700 bar); confirm every component in the set carries that rating.
Bore / tonnage — the cylinder bore sets the effective area and the rated push force; match it to the load you need to move, typically expressed in tons.
Stroke (retracted / extended) — measure the gap you must close and the clearance you have collapsed; the stroke must cover the travel without bottoming out.
Action (single / double) — single-acting cylinders extend on oil and retract by spring or load return; double-acting cylinders use oil to both extend and retract for controlled pull.
Rod / plunger diameter — drives side-load tolerance and stability under off-center loads.
Pin / mount size — confirm base, clevis, or plunger mounting matches your fixture or attachment.
Port (SAE / NPT) — the cylinder port and pump outlet must share a thread standard, or you need an adapter.

Which Cylinder and Pump Set Is Right for the Job?

Pick by how the set is used in the field. The Enerpac SCR-Series cylinder pump sets pair a return-spring (single-acting) cylinder with a hand pump for general lifting, bending, and pressing where the load helps the plunger retract. The Enerpac SCL-Series cylinder pump sets use a low-height (pancake) cylinder for jobs with tight overhead clearance, such as machine leveling and confined-space pressing. For a crew that moves between tasks, the Enerpac SRS-Series portable hydraulic toolbox bundles the cylinder, pump, hose, and gauge in a carry case for field and maintenance work.

Complete the System

A set covers the core cylinder and pump, but most jobs add a few parts. Add Enerpac hydraulic couplers to connect cylinder to pump and to swap tools without bleeding the line, and stock pneumatic quick couplers when an air-driven pump feeds the circuit. If you need to step up capacity, an Enerpac ZE-Series electric hydraulic pump drives larger or multiple cylinders, and Enerpac RC-Series cylinders add spare or higher-tonnage rams. Browse the full ranges of hydraulic cylinders and hydraulic motors to build out the rest of the circuit.

Cross-Referencing an Obsolete Cylinder and Pump Set

If your Enerpac set has been discontinued or you have a loose cylinder and pump that no longer match, you usually do not need the exact retired SKU — you need a current set with the same tonnage, stroke, action, and 10,000 PSI rating. Northern Hydraulics has cross-referenced obsolete high-pressure hydraulics since 1963; send the cylinder bore, stroke, mount, and pump type and we will identify an equivalent set. Request a cross-reference.

10,000 PSI Cylinder and Pump Sets – Frequently Asked Questions

How do I measure for the right cylinder and pump set?

Measure the load you must move (in tons) to size the cylinder bore, then measure the travel distance to set the required stroke, and confirm the retracted height fits your working clearance. Match the pump to the cylinder's oil volume so it can reach full stroke at the set's working pressure.

What pressure do Enerpac 10,000 PSI sets run at?

Enerpac high-pressure sets operate at 10,000 PSI (700 bar), the industry-standard high-pressure rating. Every part in a matched set — cylinder, pump, hose, and coupler — typically carries the same rating, so you do not have to verify components individually.

What's the difference between the SCR-Series and SCL-Series sets?

The SCR-Series uses a standard return-spring cylinder for general lifting, bending, and pressing. The SCL-Series uses a low-height (pancake) cylinder for jobs with limited overhead clearance, such as machine leveling and confined-space pressing.

Which set do I need if I work in the field?

For crews moving between job sites, the SRS-Series portable hydraulic toolbox packs the cylinder, pump, hose, and gauge into a carry case. Shop-based pressing and leveling usually run better on a bench-style SCR or SCL set.

What is the difference between single-acting and double-acting in these sets?

Single-acting cylinders extend on hydraulic oil and retract by spring or by the load itself; they need one hose and suit lifting and pressing. Double-acting cylinders use oil to both extend and retract, giving controlled pull and faster cycling, and require two hoses.

What else do I need to run a cylinder and pump set?

Most sets include the core cylinder, pump, and hose. Add Enerpac hydraulic couplers for quick tool changes, and step up to an Enerpac ZE-Series electric pump or add RC-Series cylinders when you need more capacity.

Can I mix a cylinder and pump from different sets?

You can, as long as both share the 10,000 PSI rating, the pump's oil capacity covers the cylinder's full-stroke volume, and the port threads and coupler match. Mismatched capacity or fittings is the most common cause of a cylinder that will not reach full stroke.

My Enerpac set is discontinued — can you cross-reference it?

Yes. You rarely need the exact retired SKU; you need a current set with the same tonnage, stroke, action, and 10,000 PSI rating. Send us the cylinder bore, stroke, mount, and pump type and we will identify an equivalent. Request a quote.

High Pressure 10,000 PSI Cylinder and Pump Sets

Shop by High Pressure 10,000 PSI Cylinder and Pump Sets Category:

Enerpac SCL-Series, Cylinder Pump Sets

Enerpac SCR-Series, Cylinder Pump Sets

Enerpac SRS-Series, Portable Hydraulic Toolbox

Products

Enerpac SCL-201TB 20 Ton 1.75 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

Enerpac SCL-101H 10 Ton 1.5 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

Enerpac SCL-502H 50 Ton 2.38 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

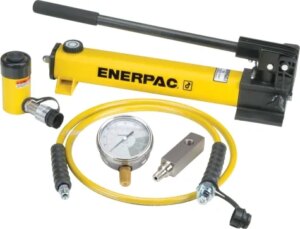

Enerpac SCR-102H 10 Ton 2.13 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-102XA 10 Ton 2.13 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCL-1002H 100 Ton 2.25 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

Enerpac SRS-500TB Hydraulic Toolbox 50 Ton .63 in Stroke Low Height Hydraulic Cylinder and Pump Set

Enerpac SCL-101TB 10 Ton 1.5 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

Enerpac SCL-101FP 10 Ton 1.5 in Stroke Low Height Hydraulic Cylinder and Foot Pump Set

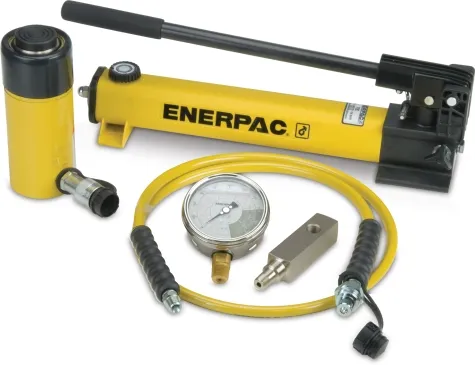

Enerpac SCR-256H 25 Ton 6.25 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-55TB 5 Ton 5 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCL-502FP 50 Ton 2.38 in Stroke Low Height Hydraulic Cylinder and Foot Pump Set

Enerpac SCR-102FP 10 Ton 2.13 in Stroke Hydraulic Cylinder and Foot Pump Set

Enerpac SCR-506H 50 Ton 6.25 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-254XA 25 Ton 4 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCL-302H 30 Ton 2.44 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

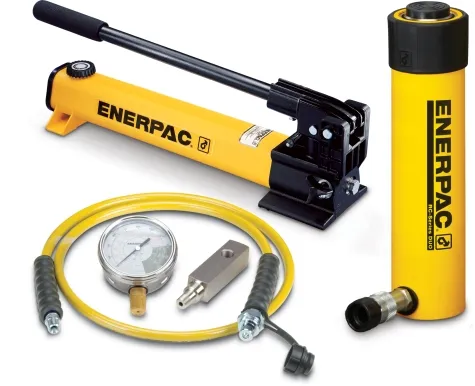

Enerpac SCR-252H 25 Ton 2 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-55H 5 Ton 5 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-106H 10 Ton 6.13 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-1010H 10 Ton 10.13 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-154H 15 Ton 4 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCL-201H 20 Ton 1.75 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

Enerpac SRS-100TB Hydraulic Toolbox 10 Ton .44 in Stroke Low Height Hydraulic Cylinder and Pump Set

Enerpac SCR-106TB 10 Ton 6.13 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-254H 25 Ton 4 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-154TB 15 Ton 4 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCL-201FP 20 Ton 1.75 in Stroke Low Height Hydraulic Cylinder and Foot Pump Set

Enerpac SCR-156H 15 Ton 6 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-1010FP 10 Ton 10.13 in Stroke Hydraulic Cylinder and Foot Pump Set

Enerpac SCR-252FP 25 Ton 2 in Stroke Hydraulic Cylinder and Foot Pump Set

Enerpac SCR-156FP 15 Ton 6 in Stroke Hydraulic Cylinder and Foot Pump Set

Enerpac SCR-106XA 10 Ton 6.13 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCR-254FP 25 Ton 4 in Stroke Hydraulic Cylinder and Foot Pump Set

Enerpac SCL-302FP 30 Ton 2.44 in Stroke Low Height Hydraulic Cylinder and Foot Pump Set

Enerpac SCL-502TB 50 Ton 2.38 in Stroke Low Height Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-1010XA 10 Ton 10.13 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCR-154XA 15 Ton 4 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCR-252XA 25 Ton 2 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCL-201XA 20 Ton 1.75 in Stroke Low Height Hydraulic Cylinder and Air Pump Set

Enerpac SCR-156XA 15 Ton 6 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCL-302XA 30 Ton 2.44 in Stroke Low Height Hydraulic Cylinder and Air Pump Set

Enerpac SCR-256XA 25 Ton 6.25 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCR-2514H 25 Ton 14.25 in Stroke Hydraulic Cylinder and Hand Pump Set

Enerpac SCR-506XA 50 Ton 6.25 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCR-2514XA 25 Ton 14.25 in Stroke Hydraulic Cylinder and Air Pump Set

Enerpac SCR-102XCB 10 Ton 2.13 in Stroke Hydraulic Cylinder and Cordless (115V) Pump Set

Enerpac SCL-1002XCB 100 Ton 2.25 in Stroke Low Height Hydraulic Cylinder and Cordless (115V) Pump Set

Enerpac SCL-1002XCE 100 Ton 2.25 in Stroke Low Height Hydraulic Cylinder and Cordless (230V) Pump Set
