Relief Valves

Looking for help or a discount?

Call (800) 823-4937

Protect your hydraulic system from dangerous overpressure. Relief valves automatically open when pressure gets too high, preventing blown hoses, damaged pumps, and cylinder failure.

Hydraulic Relief Valves for System Protection

Relief valves are the safety guards of your hydraulic system. Set them to your maximum safe pressure, and they stay closed during normal operation. But if pressure spikes – maybe you hit a knot while splitting wood or overload your cylinder – the valve instantly opens to dump excess pressure. Once pressure drops back to normal, it closes again automatically. This simple action saves thousands in damaged pumps, burst hoses, and ruined equipment.

Our relief valves protect systems from 500 to 5000 PSI. Adjustable models let you set the exact pressure for your application. Fixed-pressure valves come preset for common ratings like 2250, 2750, or 3000 PSI. Direct-acting valves respond instantly to pressure spikes. Pilot-operated versions handle higher flows with less pressure drop. We stock Cross Manufacturing and other trusted brands that equipment builders rely on.

Choose from single relief valves for basic protection, double relief valves that protect two circuits, or differential models for specialized applications. Standard 3/4″ and 1/2″ ports fit most control valves and manifolds. Every valve includes mounting hardware and clear adjustment instructions.

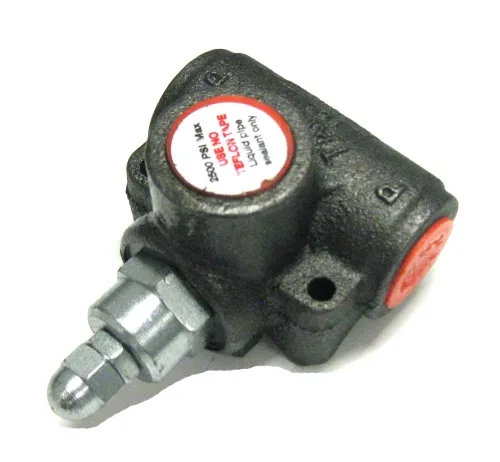

RD11D Relief Valve, Cross Manufacturing #125030

Item SKU: 125030

Why Every Hydraulic System Needs Relief Valve Protection

Running hydraulics without a relief valve is like driving without brakes – eventually, something bad happens. Pressure spikes occur suddenly when cylinders bottom out, valves close too fast, or loads shift unexpectedly. These spikes can hit three times normal pressure in milliseconds. A pump rated for 3000 PSI might see 9000 PSI spikes that destroy it instantly. Relief valves catch these spikes and bleed them off harmlessly, keeping your system safe no matter what happens.

Different relief valve types handle different protection needs. Direct-acting relief valves use a simple spring and poppet design – reliable and fast but can chatter at high flows. Pilot-operated relief valves use a small pilot valve to control a larger main valve – smoother operation with less pressure drop but slightly slower response. Differential relief valves maintain a set pressure difference between two circuits, perfect for motor drives. Cross-over relief valves protect both sides of a cylinder or motor circuit. For log splitters and presses, adjustable relief valves let you tune pressure for different materials.

Setting relief valves correctly makes the difference between protection and problems. Set too low and the valve constantly opens, wasting power and heating fluid. Set too high and it won’t protect your system. The sweet spot is usually 200-300 PSI above normal working pressure. Use a pressure gauge to set adjustable valves accurately. Start low and increase gradually while operating the system. When the relief starts opening during normal operation, back off slightly. For fixed-pressure valves, choose one rated about 10% above your pump’s maximum pressure.

We stock relief valves for every application and budget. Basic cartridge-style valves drop into manifold cavities for compact installation. In-line valves install anywhere in your circuit. Subplate-mounted versions bolt under directional valves for integrated protection. Cross Manufacturing valves offer proven reliability at good prices. For extreme conditions, we carry high-flow and high-pressure models. Tell us your system pressure and flow rate – we’ll recommend the right relief valve to keep your equipment safe. Most models ship same day with test certificates available.

Frequently Asked Questions

1. What is a relief valve and how does it work?

A relief valve is a safety device that prevents overpressure in hydraulic systems. A spring holds the valve closed until pressure exceeds the set point. Then pressure forces it open, dumping fluid back to the tank until pressure drops. It’s automatic protection that works every time.

2. What are relief valves used for?

Relief valves protect hydraulic components from damage caused by pressure spikes. They prevent burst hoses, blown pump seals, and cracked cylinders. Every hydraulic system needs at least one relief valve. Common on log splitters, presses, lifts, and any equipment where overloads can occur.

3. How do I know which relief valve to choose?

Pick a relief valve rated for your system’s maximum flow (GPM) and set 200-300 PSI above normal working pressure. Choose direct-acting for simple systems under 10 GPM. Use pilot-operated for high flow or when smooth operation matters. Match port size to your plumbing.

4. What’s the difference between adjustable and preset relief valves?

Adjustable relief valves let you set the exact pressure with a screw adjustment – great when you need flexibility or don’t know exact requirements. Preset valves come factory-set to specific pressures like 2250 or 3000 PSI – simpler, tamper-proof, and perfect when you know your needs.

5. Why does my relief valve constantly leak or blow off?

Constant relief valve operation means either pressure is set too low or your system has problems. Check the adjustment first – it should be 200+ PSI above normal working pressure. If that’s correct, look for stuck valves, undersized pumps, or blocked returns causing excessive backpressure. A chattering relief often means contamination in the valve seat.

Relief Valves

Hydraulic Relief Valves for System Protection

Quick Buy

Explore This Page

RD11D Relief Valve, Cross Manufacturing #125030

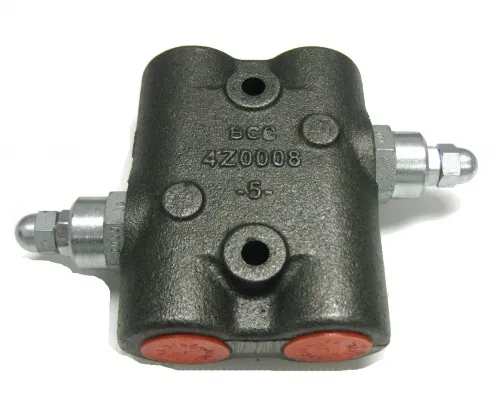

Double Relief Valve RC12DD, Cross #127120

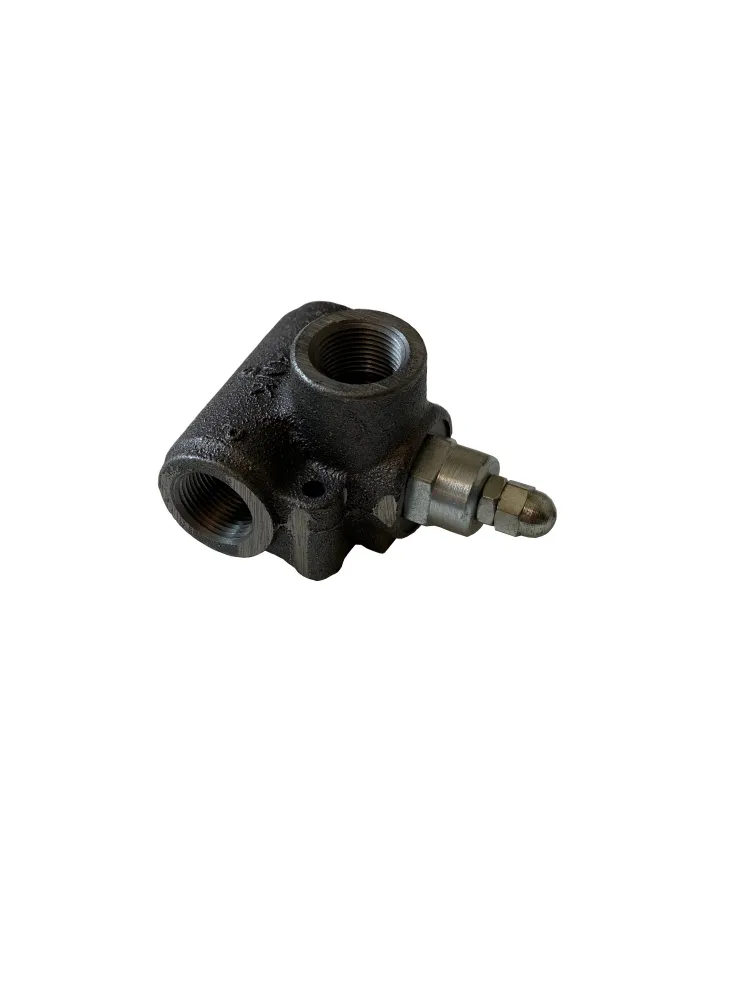

RD12D RELIEF VALVE, Cross Manufacturing
