7 gallon capacity: 12″ long X 12″ wide X 12″ high. Weighs 40 lbs.
| Weight | 40.0 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
| Hydraulic Reservoirs | Heavy Duty Side-Mount |
| Hyd Reservoir Capacity (GAL) | 7 GAL |
| Manufacturer | American Mobile Power |
Steel Side-mount Hydraulic Reservoir Tanks Manufactured by American Mobile Power Company
7 Gallon Steel Side-mount Hydraulic Reservoir Tank
Model: A-3107
The 7 gallon steel reservoir tank manufactured by American Mobile Power is fully baffled with 2″ X 2″ X 6″ mounting angles. Tank is constructed with two 1-1/4″ NPT suction ports, two 1″ return line ports, a magnetic drain plug, one 1-1/4″ port plug and one 1″ port plug. Filler/breather assembly is included, along with a 40 micron filter/breather cap (chain mounted) with nylon strainer basket and bayonet closure. Reservoir tank is powder coated black and has oil level and temperature indicator. All tanks are factory tested. Item will ship via UPS.

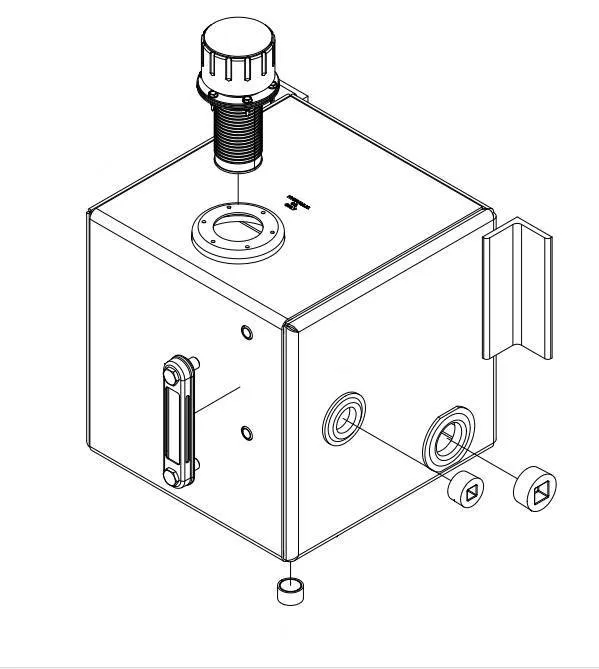

View: 7 Gallon Reservoir Design Print
Product Specifications:
- Two 1-1/4″ NPT suction ports
- Two 1″ return line ports
- Magnetic drain plug
- One 1-1/4″ port plug
- One 1″ port plug
- Dimensions: 12″ X 12″ X 12″
- Shipping weight: 40 Lbs.
- Manufacturer’s limited warranty included.
07 Gallon Steel Sidemount Hydraulic Reservoir Tank, A-3107
$315.00
In stock
No sales tax
Expected delivery Aug 13 - Aug 17
Tank is functional and the size is what I needed but the welds on mine were a little rough in a couple spots. Nothing that caused a leak but for a steel tank that weighs 40 lbs I expected cleaner work. It's holding up fine so far but I'm keeping an eye on it.
exactly as described
fit perfect
Quality is solid and it mounted up fine on our log splitter build. Only thing is the filler cap felt a little stiff right out of the box, loosened up after a couple uses though. Would still buy again.
no complaints
