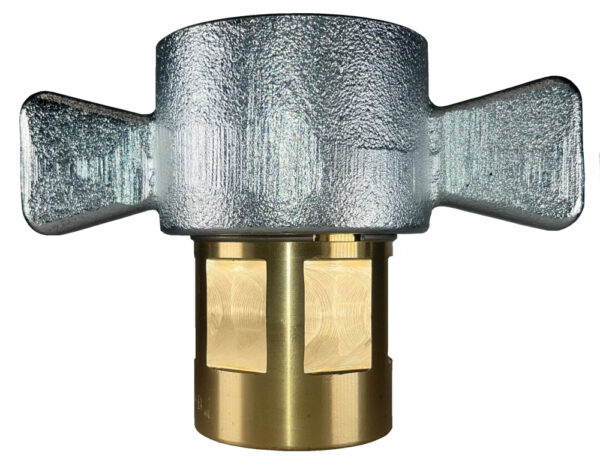

Designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.

Construction

• Machined components are manufactured using solid steel and brass bar stock.
• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
• Steel componentry is plated using ROHS Compliant Trivalent Chrome.
• Nitrile (Nitrile Rubber) seals are standard, providing a temperature range of -40°F to +250°F (-40°C to +121°C).
• Couplings have a TPC-ET backup ring on the valve sleeve to extend service life.
• Nipple valve seal is crimped to improve seal integrity and prolong service life.
• External O-ring on plug indicates full connection and acts as a contamination shield in connected mode.
• Redundant O-Ring on the coupler body will engage nipple for secondary sealing support.

Specifications

• Maximum Operating Pressure: 2500 PSI
• Material: Brass
• Body Size: 1 1/2″
• Temperature Range: -40°F to 250°F
• Burst Pressure: 10,000 PSI
• Thread Size: 1 1/2″
