Single Spool Cross Valve features: 3-position, 4-way, 15 GPM, 3000 PSI, open center
Specifications
| Weight | 12 lbs |
|---|---|
| Dimensions | 15 × 15 × 5 in |
| Hydraulic Valve Style | Direction Control Valve (Monoblock) |
| Valve GPM | 15 |
| Valve Inlet Port Size | ORB – 10 |
| Valve Outlet Port Size | ORB – 10 |
| Valve Working Port Size | ORB – 8 |
| Valve System | Open Center |
| Valve PSI | 3000 |
| Manufacturers | Cross Manufacturing Inc |
Overview

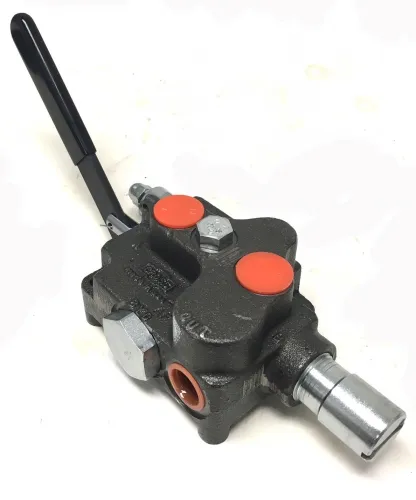

SA2 Single Spool Cross Valve, AD11AG3000
The Cross SA series hydraulic spool valve offers differential style relief, load checks, and excellent metering in a compact, economical model with parallel flow paths. Single spool, 3-position, 4-way. For operating double acting cylinders or a reversable hydraulic motor.
Product Specifications:
- 3000 PSI operating pressure
- 15 GPM flow rating
- 7/8-14 (SAE-10) inlet & outlet ports
- 3/4-16 (SAE 8) work ports
- Adjustable built-in relief, set @ 2000 PSI
- Open center, spring centered
- Load holding cylinder port check valves
Field conversion kits available:
- 1V2566 Power beyond sleeve
- 1V2572 Closed center plug
- 1R0035 No relief plug for closed center
- 1V2682 Detent kit (2-position, spring centering)
Cross Stock Number: 160040
Cross Hydraulic Valve Product Description: AD11AG3000
CROSS SA2 SINGLE SPOOL VALVE, AD11AG3000
SKU: 160040
$270.79 -11% $241.00
1+
$ 241.00/piece
4+
$ 228.95/piece
-5%
8+
$ 216.90/piece
-10%
33 viewed in the last 24 hours
In stock Expected delivery between Oct 06 - Oct 13
No sales tax
Free shipping
Shop with Confidence
256-bit encrypted shopping with nmi.com
