Single Spool, 3-position, 4-way. For operating double acting cylinders or a reversible hydraulic motor.
| Weight | 15.0 lbs |
|---|---|
| Dimensions | 10 × 6 × 5 in |
| Hydraulic Valve Style | Direction Control Valve (Monoblock) |
| Valve GPM | 30 |
| Valve Inlet Port Size | NPT – 3/4" |
| Valve Outlet Port Size | NPT – 3/4" |
| Valve Working Port Size | NPT – 1/2" |
| Valve System | Open Center |
| Valve PSI | 2500 |
| Manufacturer | Cross Manufacturing Inc |

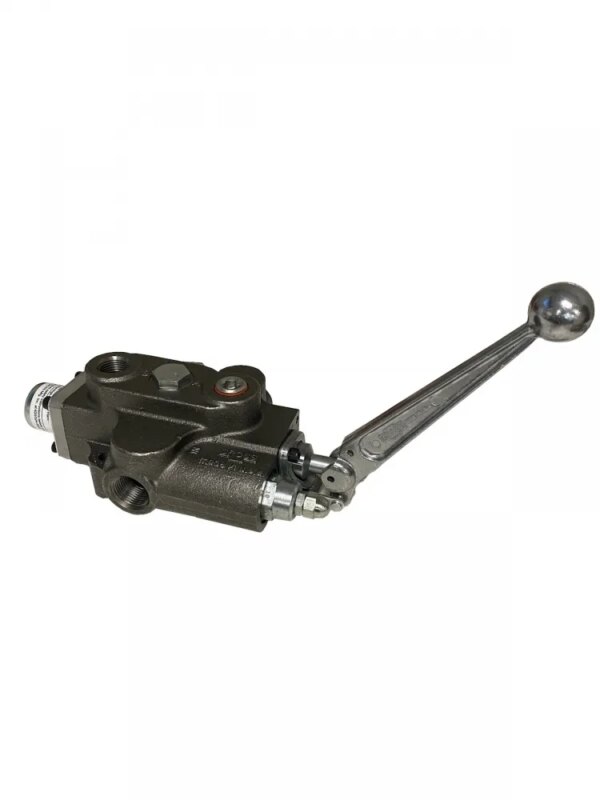

Cross SBA1 Single Spool Valve
Product Specifications:
- 2500 PSI operating pressure for SBA (3000 psi for SBS)
- 30 GPM flow rating
- 3/4″ NPT inlet & outlet ports (1-1/16″-12 SAE, SBS)
- 1/2″ NPT work ports (3/4″-16 SAE, SBS)
- Adjustable built-in relief, set @ 2000 PSI
- Open center, spring centered
- Load holding cylinder port check valve
- Float is available
Field conversion kits:
- 1V0208 Power beyond sleeve
- 1V2015 Closed center kit (contains 1V0206 & 1R0035)
- 1V1485-02 Single handle actuator for SBAF2 & SBA22
Cross Manf. BA13AG3EA0
Cross Manf. 133259
CROSS SBA1 SINGLE SPOOL VALVE
$474.84
In stock
No sales tax
Expected delivery Sep 09 - Sep 13
