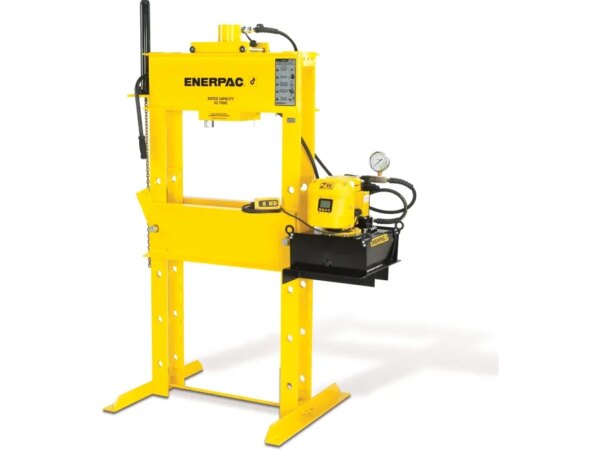

Enerpac IP-Series 100 ton h-frame press.
| Weight | 1775.0 lbs |
|---|---|
| Dimensions | 92 × 70 × 46 in |
| Hydraulic Presses | A-Series, C-Clamp, Arbor & Bench Frame |
| Manufacturer | Enerpac |
Â
IPE-10010 100-Ton Press Specifications:
Maximum Operating Pressure (psi):Â 10,000
Capacity (imperial tons):Â 100
Maximum Vertical Daylight (in):Â 42.5
Maximum Bed Width (in):Â 35
Power Source Type:Â Electric
Power Source Valve: Electric
Pump Model Number: ZE4320SBN
Cylinder Model Number:Â RC10010
Cylinder Type:Â Single-Acting, Spring Return
Cylinder Stroke (in):Â 10
Rapid Advance Speed Sec (in):Â 1.9
Pressing Speed Sec (in):Â 20.6
Weight (lbs):Â 1722
Enerpac IP-Series Press Brochure
IPE-10010 Measurements:
- Dimension (A Max)- 42.5 in.
- Dimension (A Min)-Â 7 in.
- Dimension (B)- 20 in.
- Dimension (C)- 51 in.
- Dimension (D)- 11.69 in.
- Dimension (E)- 35 in.
- Dimension (F)- 51 in.
- Dimension (G)- 6.75 in.
- Dimension (H)- 8.75 in.
- Dimension (J)- 36 in.
- Dimension (K)- 8.75 in.
- Dimension (L)- 17.25 in.
- Dimension (M)- 33.13 in.
- Dimension (N)- 76 in.
|
|
Enerpac IPE-10010 100 Ton H-Frame Press
$39,857.27
In stock
No sales tax
Expected delivery Jul 19 - Jul 23
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
