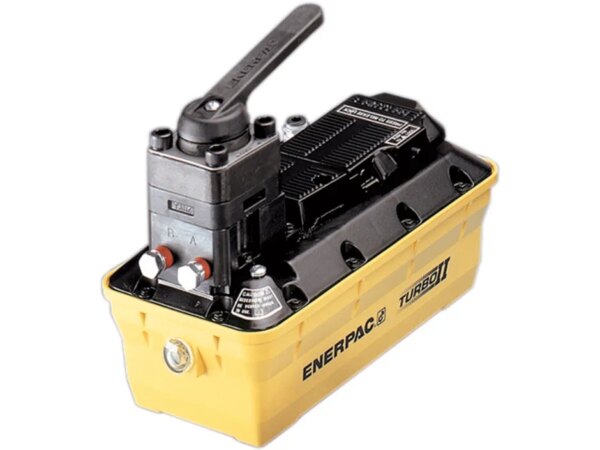

Enerpac PAMG-3402NB Turbo II Air Hydraulic Pump 4 way Manual Valve 180 in3 Oil Flow at 100 psi
| Weight | 22.39999962 lbs |
|---|---|
| Dimensions | 15 × 9 × 9 in |
| Hydraulic Pump Style | 10,000 PSI Hand Pump |
| Pump Manufacturers | Enerpac |
| Manufacturer | Enerpac |
Â
Enerpac PAMG-3402NB Specifications:
Maximum Operating Pressure (psi):Â 5,000
Reservoir Capacity (in3):Â 116
Usable Oil Capacity (gal):Â 0.53
Usable Oil Capacity Horizontal Mount (in3):Â 122
Usable Oil Capacity Vertical Mount (in3):Â 70
Maximum Flow at Rated Pressure:Â 10 in3/min
Output Flow Rate (in3/min) at 0 psi:Â 180
Valve Operation: Manual
Valve Type:Â 4 way, 3 position, Tandem Center
Valve Model:Â VM4
Power Source:Â Air
Hydrualic to Air Ratio:Â 45:01:00
Air Pressure Range (psi):Â 50-125
Air Consumption (scfm):Â 12
Weight (lbs):Â 25
Enerpac PAMG-3402NB Turbo II Air Hydraulic Pump 4 way Manual Valve 180 in3 Oil Flow at 100 psi
$2,028.73
In stock
No sales tax
Expected delivery Jul 24 - Jul 28
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
Replaced an older unit with this one and it's been running without a hiccup. Fast delivery too.
Fast, well built, fits right into our workflow.
Works fine for what I need it for but the air consumption is higher than I expected running it all day in the shop. Not a dealbreaker, just something to be aware of if your compressor is on the smaller side. Does what it says it does though.
no complaints
Recieved the pump and it leaked around the valve body right out of the box. Had to wait for a replacement which set my job back almost two weeks. Not what you expect at this price point honestly.
