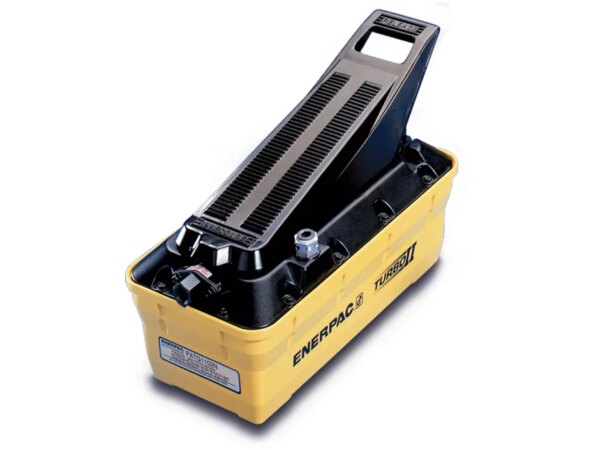

Enerpac PATG-1102N Turbo II Air Hydraulic Pump Hand/Foot Operated 3/3 Treadle Valve 127 in3 Usable Oil for single acting cylinders.

Specifications
Weight 17 lbs
Dimensions 15 × 9 × 9 in
Hydraulic Pump Style

10,000 PSI Hand Pump

Manufacturers

Enerpac

Pump Manufacturers

Enerpac

Overview

Contact Us For Current Availability

PATG-1102N Specifications:

Maximum Operating Pressure (psi): 10,000

Cylinder Compatability: Single-acting

Reservoir Capacity (in3): 127

Usable Oil Capacity (in3): 127

Maximum Flow at Rated Pressure: 10 in3/min

Valve Function: Advance / Hold / Retract
Valve Operation: Manual

Valve Type: 3 way, 3 position

Power Source: Air
Pump Control: Hand/Foot

Weight (lbs): 18


Enerpac PATG-Series Pump Brochure

PATG-1102N Measurements:

  • Dimension (A)- 12.33 in. / 313 mm
  • Dimension (B)- 6.49 in. / 165 mm
  • Dimension (C)- 8.29 in. / 211 mm
  • Dimension (D)- 9.04 in. / 230 mm
  • Dimension (E)- 4 in. / 102 mm
  • Dimension (H)- 5.15 in. / 129 mm
  • Dimension (J)- 5.75 in. / 146 mm
  • Dimension (L)- 1.65 in. / 113 mm
  • Dimension (M)- 13.62 in. / 347 mm

Enerpac PATG-1102N Turbo II Air Hydraulic Pump Hand/Foot Operated 3/3 Treadle Valve 127 in3 Usable Oil Scheme Dimensions

Enerpac PATG-1102N Turbo II Air Hydraulic Pump Hand/Foot Operated 3/3 Treadle Valve 127 in3 Usable Oil

0.0 (0)
SKU: PATG1102N
0.0 out of 5 Read reviews
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

$1,293.33 -10% $1,164.00

enerpac
7 sold in the last 24 hours
In stock Expected delivery between May 31 - Jun 07
No sales tax
Free shipping
