Enerpac 10,000 PSI 230 volt Economy Pump for double acting cylinders.
| Weight | 40.59999847 lbs |
|---|---|
| Dimensions | 15 × 13 × 15 in |
| 10000 PSI Hydraulic Tools | Power Units |
| Manufacturer | Enerpac |
PUJ-1401E Specifications:
Maximum Operating Pressure (psi): 10,000
Pressure Rating (psi) 1st Stage: 200
Pressure Rating (psi) 2nd Stage: 10,000
Cylinder Compatability: Double-acting
Reservoir Capacity (in3): 231
Usable Oil Capacity (gal): 1
Maximum Flow at Rated Pressure: 20 in3/min
Output Flow Rate (in3/min) 1st Stage: 200
Output Flow Rate (in3/min) 2nd Stage: 20
Motor Size (hp): 0.5
Motor Voltage: 208-240 V
Valve Function: Advance / Hold / Retract
Valve Operation: Manual
Valve Type: 4-way, 3-position
Power Source: Electric
Pump Control: Pendant
Motor Electrical Specification: 230 V, 50/60 Hz
Current Draw (amps): 9.5
Sound Level (dBa): 85
Weight (lbs): 36
Enerpac PU-Series Pump Brochure
PUJ-1401E Measurements:
- Dimension (A)- 14.5 in. / 368 mm
- Dimension (B)- 12.18 in. / 309 mm
- Dimension (C)- 14.72 in. / 373 mm
- Dimension (D)- 4.15 in. / 105 mm
- Dimension (E)- 5.12 in. / 130 mm
- Dimension (F)- 12.74 in. / 323 mm
- Dimension (H)- 0.4 in. / 10 mm
- Dimension (J)- 5.62 in. / 142 mm
|
|

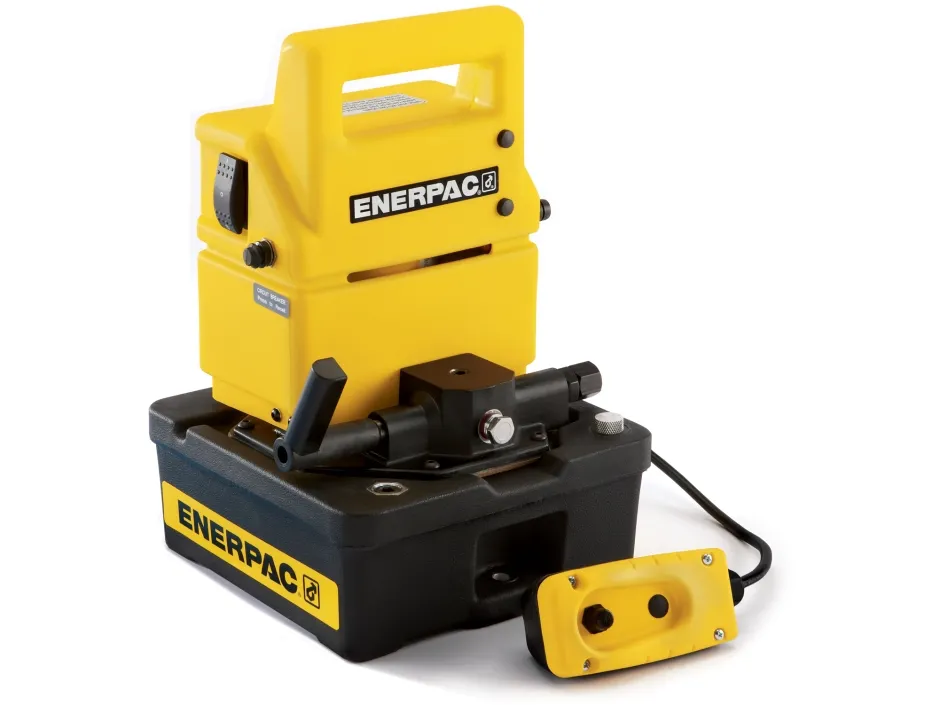

Enerpac PUJ-1401E Economy Electric Pump, 230 VAC
$5,655.12
In stock
No sales tax
Expected delivery Jul 18 - Jul 22
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
