Specifications

Weight	37.200001 lbs
Dimensions	18 × 8 × 8 in
Cylinder Stroke Ranges	9.84
Cylinder Extended Length	25.05
Enerpac Cylinder Series	RAC- Single-Acting Aluminum
Cylinder Tonnage	50
Cylinder Enerpac Return Type	Single-Acting (Spring Return)
Cylinder Retracted Length	15.21
Manufacturer	Enerpac

Overview

Enerpac RAC-5010 Single Acting, 50 Ton Aluminum Hydraulic Cylinder

Single Acting
Aluminum Composition for Lightweight, Maximum Portability
Coupler and Dust Cap (CR-400) Included
RAC cylinders are built with bolt-on removable saddles of hardened steel
High Strength Return Spring for Rapid Cylinder Retraction
One Year Manufacturer’s Warranty

View: Enerpac RAC Cylinders Brochure

Enerpac 50 Ton Cylinder Specifications:

Stroke: 9.84″
Cylinder Effective Area: 10.99″
Oil Capacity: 108.14“
Collapsed Height: 15.21″
Extended Height: 25.05″
Outside Diameter: 5.12″
Cylinder Bore Diameter: 3.74″
Plunger Diameter: 3.15″
Saddle Diameter: 1.97″
Saddle Protrusion From Plunger: 0.12″
Weight: 30.2 lbs.

Alternate Lookup: RAC5010

Enerpac RAC-5010 Cylinder Replacement Parts Available

View: RAC Cylinder Repair Parts Sheet

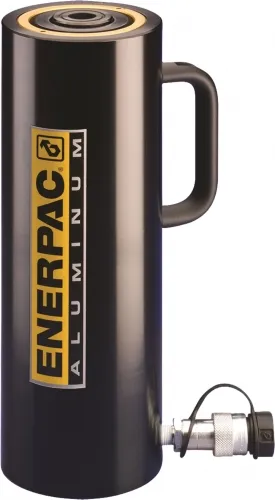

*Photo representation pictured is RAC508

SKU: RAC5010

Enerpac RAC-5010 Single Acting 50 Ton Cylinder, Aluminum, 9.84″ Stroke

Name: Enerpac RAC-5010 Single Acting 50 Ton Cylinder, Aluminum, 9.84" Stroke
Brand: Northern Hydraulics Inc.
SKU: RAC5010
Price: 3967.41 USD
Availability: InStock
