Enerpac double acting 30 ton cylinder.
| Weight | 62.59999847 lbs |
|---|---|
| Dimensions | 65 × 16 × 16 in |
| Cylinder Stroke Ranges | 14.5 |
| Cylinder Extended Length | 36.13 |
| Enerpac Cylinder Series | 9-769 |
| Cylinder Tonnage | 30 |
| Cylinder Enerpac Return Type | Double-Acting |
| Cylinder Retracted Length | 21.63 |
| Manufacturer | Enerpac |
Enerpac RR-3014 Specifications:
- 30 ton capacity
- 14.50 inch stroke
- 64 lbs
- 10,000 psi maximum operating pressure
- Double acting, Hydraulic return
- Solid plunger
RR-3014 Measurements:
- Collapsed Height (A)- 21.63 in. / 549 mm
- Extended Height (B)- 36.13 in. / 917 mm
- Outside Diameter (D)- 4 in. / 101 mm
- Cylinder Bore Diameter (E)- 2.88 in. / 73.2 mm
- Plunger Diameter (F)- 2.13 in. / 54.1 mm
- Base to Advance Port (H)- 1.54 in. / 39 mm
- Top to Retract Port (I)- 3.19 in. / 81 mm
- Saddle Diameter (J)- 2 in. / 50 mm
- Saddle Protrusion from Plunger (K)- 0.41 in. / 10 mm
- Plunger Internal Thread (O)- 1 1/2″ – 16
- Plunger Thread Length (P)- 1 in. / 25 mm
- Collar Thread (W)- 3 5/16″ – 12
- Collar Thread Length (X)- 1.94 in. / 49 mm
- Bolt Cirlce (U)- –
- Thread (V)- –
- Thread Depth (Z)- –
 |

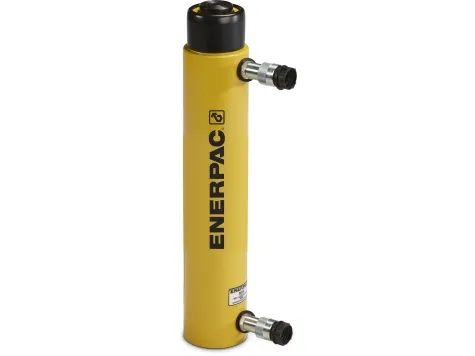

Enerpac RR-3014 Double Acting Cylinder
$3,933.25
In stock
No sales tax
Expected delivery Aug 13 - Aug 17
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
Fit right into our press setup without any fussing around. Build quality is excellent and it's held up through some serious work already.
Heavy duty and well made, exactly as described on the site. Had it pushing some serious tonnage within an hour of arrival and handled it without breaking a sweat.
No complaints.
Been using this on our loader frame repairs and it hasn't let us down once. Thing's a tank.
Bought this to handle some heavy frame straightening work and it's been perfect. Seals are holding, no bypass, smooth retract every time — hard to ask for more than that out of a cylinder at this price point.
