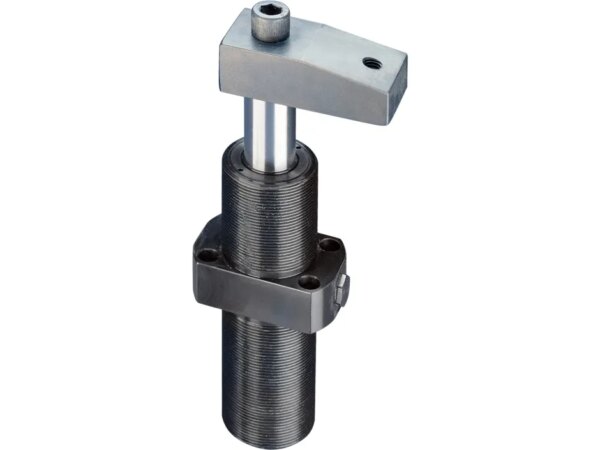

Enerpac SC-3 Swing Clamp 500 lbs Force 0.78 in Stroke
| Weight | 1.20000005 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
| Work Holding/Clamps | Swing Clamp |
| Manufacturer | Enerpac |
SC-3 Specifications:
Clamping Force (lbs): 500
Stroke (in): 0.78
Stroke Clamping (in): 0.25
Cylinder Effective Area Pull (in2): 0.245
cylinder Effective Area Push (in2): 0.442
Oil Capacity Pull (in3): 0.184
Oil Capacity Push (in3): 0.331
Weight (lbs): 2
Enerpac SC-Series Swing Clamp Brochure
SC-3 Measurements:
- Dimension (A)- 5.27 in. / 134 mm
- Dimension (B)- 4.26 in. / 108 mm
- Dimension (C)- 3.71 in. / 94 mm
- Dimension (C1)- 3.48 in. / 88 mm
- Dimension (D)- 1.00 – 12 unf
- Dimension (D1)- 2 in. / 51 mm
- Dimension (D2)- 1.13 in. / 29 mm
- Dimension (F)- 0.5 in. / 13 mm
- Dimension (G)- .125 – 27
- Dimension (G1)- .125 – 27
- Dimension (H)- 2.15 in. / 54.6 mm
- Dimension (H1)- 0.63 in. / 16 mm
- Dimension (P)- 1 in. / 25 mm
- Dimension (Q)- .250 – 20
- Dimension (U)- 0.75 in. / 19.1 mm
- Dimension (U1)- 1.5 in. / 38.1 mm
- Dimension (W)- 2.03 in. / 52 mm
 |
Enerpac SC-3 Swing Clamp 500 lbs Force 0.78 in Stroke
$823.29
In stock
No sales tax
Expected delivery Jul 21 - Jul 25
Authorized Enerpac Distributor
Get Your Personalised Enerpac Quote
The price shown is Enerpac's list price. Request a personalised quote or call for pricing and lead time on this exact model — most quotes answered the same business day.
exactly as described
Was a little hesitant on the price but after getting it in hand the quality speaks for itself — thing's built like a tank. Installed it on our welding fixture and it hasn't given us a single problem.
Quality is definitly there, build feels solid and the stroke is just right for our application. Only reason I'm not giving top marks is shipping took a few days longer than I expected, but the part itself is excellent.
no complaints
Been using this on a fixture plate in the shop for about three months now, works every single time without fuss — the swing action is smooth and it locks down hard with no creep under load.
