10.6 GPM, 1.25″ GEAR, 2.46 C.I., 3000 PSI, 7/8-13 SPINE SHAFT, 2X4 B FLANGE MOUNT, 1″ ORB
| Weight | 40.0 lbs |
|---|---|
| Dimensions | 18 × 12 × 12 in |
| Hydraulic Pump Style | Gear Pump |
| Pump Manufacturers | Heavy Motions |
| Pump Displacement | 2.46 |
| Pump Outlet Port Style/Size | 13 Tooth 16/32 DP 0.75", ORB – 16 |
| Pump Mounting Flange | 2/4 Bolt / SAE B / 4.00" Pilot |
| Pump Inlet Port Style/Size | ORB – 16 |
| Pump Rotation | Dual |
| Manufacturer | Heavy Motions |
Heavy Motions Pumps

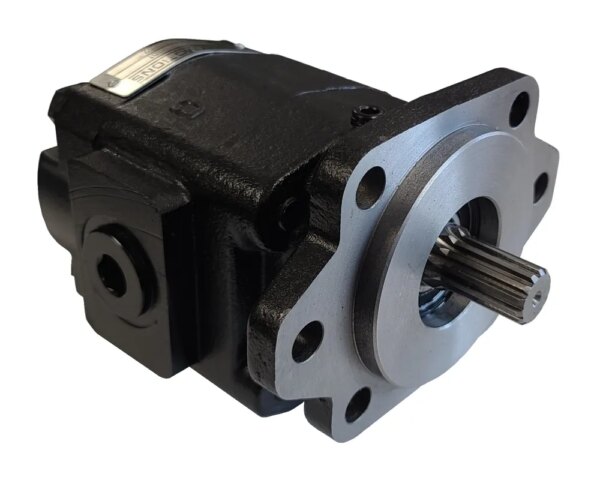

H2B6B14SD21DI
Heavy Motions High Pressure Gear Pumps with Orb Ports are designed for a wide range of applications including low boys, utility line trucks, refuse equipment and snow and ice control.
- H21 Series
- 2.46 Cubic in. Displacement
- 10.6 GPM @ 1000 RPM
- 3000 PSI max
- 2400 RPM max
- Bi-Rotational
- 2/4 Bolt “B” Flange Mount
- 7/8-13 Spline Shaft
- 1″ ORB Ports
Commercial- P21A646JEAF12-25
Permco- P2100A290IDZE12-14
Muncie- PK11-2BSBB
H2B6B14SD21DI Heavy Motions Gear Pump 10.6 GPM, ORB Ports
$454.05
In stock
No sales tax
Expected delivery Sep 08 - Sep 12
Pump flows well and the build quality looks good. Took a little extra shimming to get the shaft aligned on our application but that's probably on us not the pump. Would buy again.
Been running this on a loader for about three months now, no leaks, no noise, just does its job. Couldn't ask for more at this price point.
Recieved it fast and had it running the same afternoon. Quality feels solid, housing is clean, no casting defects I could find. Real happy with this one.
Installed on a hydraulic log splitter build, took maybe 45 minutes start to finish. Ports lined up, shaft dropped right in. Only reason I'm not leaving the top rating is one of the port plugs was missing when it arrived, had to dig one out of the bin.
Gets the job done and flow seems right but it runs warmer than I'd like at extended use. Could be my setup honestly, hard to say. Not a bad pump just not totally sold on it yet either.
