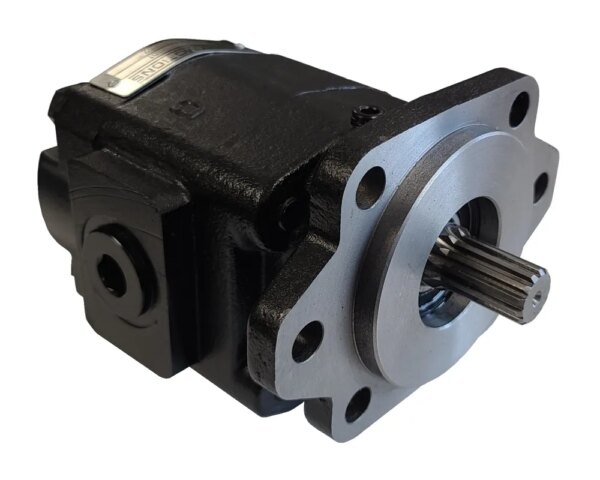

Home » Hydraulics Shop » Hydraulic Pumps » Gear Pumps » H2B6B14SF21DI Heavy Motions Gear Pump 14.9 GPM, ORB Ports

H2B6B14SF21DI Heavy Motions Gear Pump 14.9 GPM, ORB Ports - Image 2

14.9 GPM, 1.75″ GEAR, 3.44 C.I., 2500 PSI, 7/8-13 SPINE SHAFT, 2X4 B FLANGE MOUNT, 1″ ORB Rear Ports, 1.25″ ORB Side Ports

Weight	40.0 lbs
Dimensions	18 × 12 × 12 in
Hydraulic Pump Style	Gear Pump
Pump Manufacturers	Heavy Motions
Pump Displacement	3.44
Pump Outlet Port Style/Size	13 Tooth 16/32 DP 0.75", ORB – 16
Pump Mounting Flange	2/4 Bolt / SAE B / 4.00" Pilot
Pump Inlet Port Style/Size	ORB – 16
Pump Rotation	Dual
Manufacturer	Heavy Motions

Heavy Motions Pumps

H2B6B14SF21DI

Heavy Motions Pumps are designed for a wide range of applications including low boys, utility line trucks, refuse equipment and snow and ice control.

H21 Series
3.44 Cubic in. Displacement
14.9 GPM @ 1000 RPM
2500 PSI max
2400 RPM max
Bi-Rotational
2/4 Bolt “B” Flange Mount
7/8-13 Spline Shaft
1″ ORB Rear Ports
1.25″ ORB Side Ports

Commercial- P21A646JEAL17-25

Permco- P2100A290IDZK17-14

Muncie- PK15-2BSBB

SKU: H2B6B14SF21DI

H2B6B14SF21DI Heavy Motions Gear Pump 14.9 GPM, ORB Ports

Name: H2B6B14SF21DI Heavy Motions Gear Pump 14.9 GPM, ORB Ports
Brand: Heavy Motions
SKU: H2B6B14SF21DI
Price: 454.05 USD
Availability: InStock
