2″ GEAR, 5.10 C.I., 2500PSI, 7/8-13 SPINE SHAFT, RH ROTATION, 1.25″ NPT INLET, 3/4″ NPT PRESSURE & RETURN PORTS, MANUAL SHIFT, 4 BOLT MOUNT
| Weight | 52.0 lbs |
|---|---|
| Dimensions | 24 × 12 × 12 in |
| Hydraulic Pump Style | Dump Pump |
| Pump Manufacturers | Heavy Motions |
| Pump Displacement | 5.1 |
| Pump Outlet Port Style/Size | 13 Tooth 16/32 DP 0.75", NPT – 1-1/4" |
| Pump Mounting Flange | 2/4 Bolt / SAE B / 4.00" Pilot |
| Pump Inlet Port Style/Size | NPT – 1-1/4" |
| Pump Rotation | Dual |
| Manufacturer | Heavy Motions |
Heavy Motions Pumps

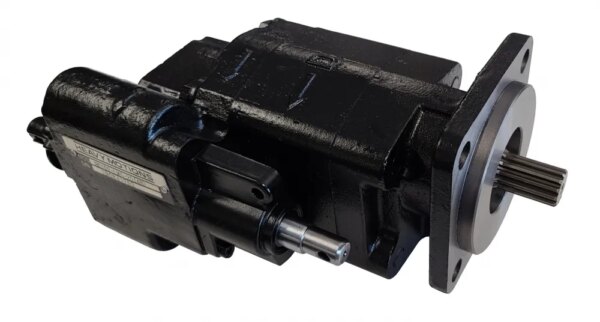

HG102-RMS-20 (4B)
Heavy Motions Dump Pumps are designed for the dump trucking industy. Common applications are small dump trucks.
- G Series
- Manual Shift
- 5.10 Cubic in. Displacement
- 29 @ 1800 RPM
- 2500 PSI max
- 2400 RPM max
-
RH Rotation
- 7/8-13 Spline Shaft
- 1.25″ NPT Inlet Ports
- 3/4″ NPT Pressure & Return Ports
Replacement for Parker/Commercial G102 Series
HG102-RMS-20 Heavy Motions Dump Pump 5.10 CI, NPT Ports, 4 Bolt Mount
$584.58
In stock
No sales tax
Expected delivery Jul 24 - Jul 28
Works great on my small dump truck, really reliable.
Fast shipping and easy to install, good pump.
Perfect fit for my needs, holds up well under pressure.
Efficient pump, didn't have any issues throughout the job.
Just what I needed for my dumper, simple to operate.
