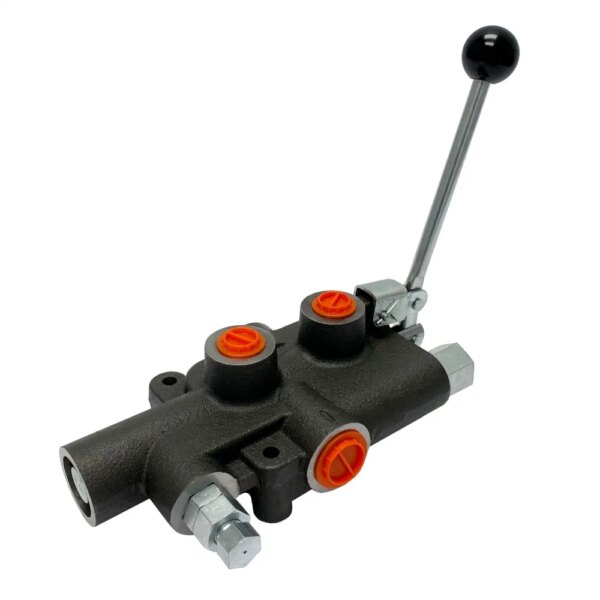

Home » Hydraulics Shop » Magister 1 spool x 21 GPM Hydraulic Log Splitter High Speed Control Valve

Free Shipping

Magister 1 spool x 21 GPM Hydraulic Log Splitter High Speed Control Valve - Image 2

Magister 1 spool x 21 GPM Hydraulic Log Splitter High Speed Control Valve - Image 3

Magister 1 spool x 21 GPM Hydraulic Log Splitter High Speed Control Valve - Image 4

Log Splitter Valve: 4-way 3-pos Tandem Center w/Spring to Neutral and Press Release Detent. Automatically kicks back to neutral when cylinder completes stroke.

Specifications

Weight	12.0 lbs
Dimensions	18 × 10 × 10 in
Hydraulic Valve Style	Direction Control Valve (Monoblock)
Valve GPM	21
Valve Inlet Port Size	ORB – 12
Valve Outlet Port Size	ORB – 12
Valve Working Port Size	ORB – 10
Valve System	Open Center
Valve PSI	4300
Manufacturer	Magister Hydraulics, MagisterHyd

Overview

Magister LOG SPLITTER VALVE (HCV-LSH 1X21)

Name: Magister 1 spool x 21 GPM Hydraulic Log Splitter High Speed Control Valve
Brand: Magister Hydraulics
SKU: HCV-LSH 1X21
Price: 170 USD
Availability: InStock

Hydraulic log splitter control valve with extremely “”fast extend”” high speed mode, max pressure of 4300 PSI.

To operate: Push your lever fully forward to advance the cylinder up to the log at a high speed, then pull lever back one position to “low speed/high force” mode to split through the log. This valve is designed to be used with a single stage pump.

Product Specifications:

- Single Spool Directional Control Valve
- 3-Position, 4-Way
- 0-21 GPM
- 4300 PSI Max
- Handle Style Actuator
- Spring Centered
- Automatically kicks back to neutral when cylinder completes stroke.
- SAE #10 Work Ports
- SAE #12 Inlet and Outlet Ports

Please call 1-800-823-4937 for multiple quantity discounts.

Trusted Manufacturing Partnership

This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.

SKU: HCV-LSH 1X21
