Medium displacement roller bearing pumps.
| Weight | 0.0 lbs |
|---|---|
| Dimensions | 10 × 7 × 10 in |
| Hydraulic Pump Style | Gear Pump |
| Pump Displacement | 5.15 |
| Pump Outlet Port Style/Size | 14 Tooth 12/24 DP 1.250", NPT – 1-1/4" |
| Pump Mounting Flange | 2/4 Bolt / SAE B / 4.00" Pilot |
| Pump Inlet Port Style/Size | NPT – 1-1/4" |
| Pump Rotation | Dual |
| Manufacturer | Permco |
| Pump Manufacturers | Permco |

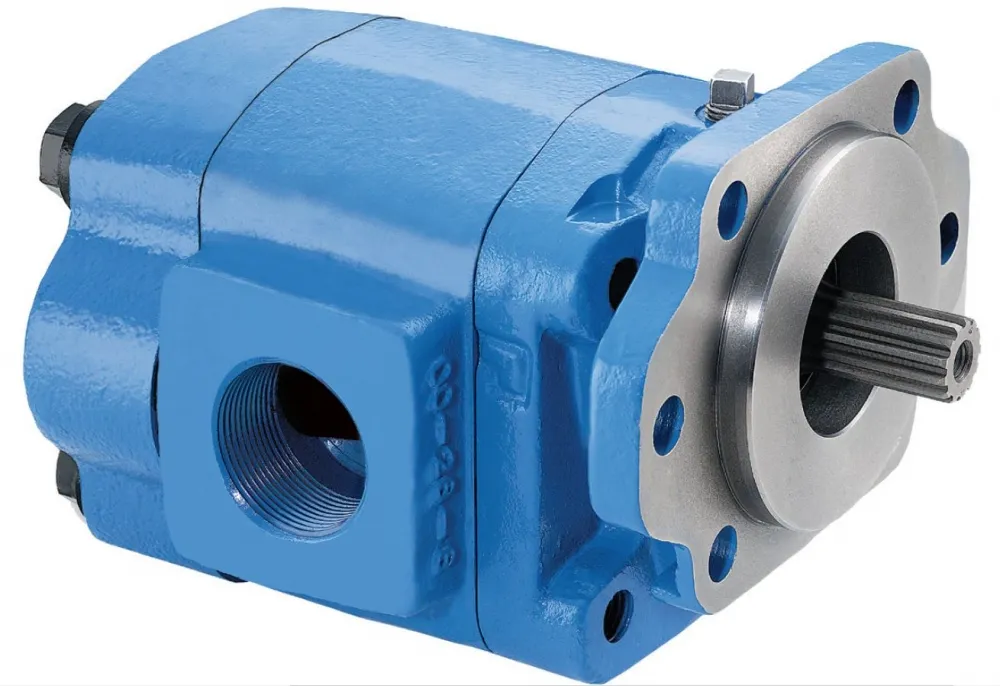

Permco P5151 Series Gear Pump: 23.0 GPM
Permco 5151 Tech Specifications
Permco Model No. P5151A224AAXK20-42
Common Applications:
- Roll-off
- Snow and Ice Control
- Low Boy/Transfer Trailers
Product Specifications:
- 5.15 ci displacement
- 2.00″ gear width
- 2400 max RPM
- 2500 max PSI
- SAE “B” 2 & 4 Bolt Mounting Flange
- 1 1/2″ Rear NPT Ports
- 1 1/4″ Side NPT Ports
- Bi-Rotation
- SAE ‘C’ 1-1/4″ DIA.-14 TOOTH SPLINE
Dimensions:
- (A) – 6.88″
- (B) – 2.75″
- (C) – 4.75″
Comparable to Muncie model PL23-5BPBB
Permco P5151A224AAXK20-42, 23 GPM Gear Pump
$1,024.00
Ready to order
No sales tax
Expected delivery Oct 14 - Oct 20
Get an exact shipping rate for your ZIP in the cart
Secure checkoutEncrypted card payments · pay over time with Affirm, Klarna or Afterpay
There are no reviews yet.
