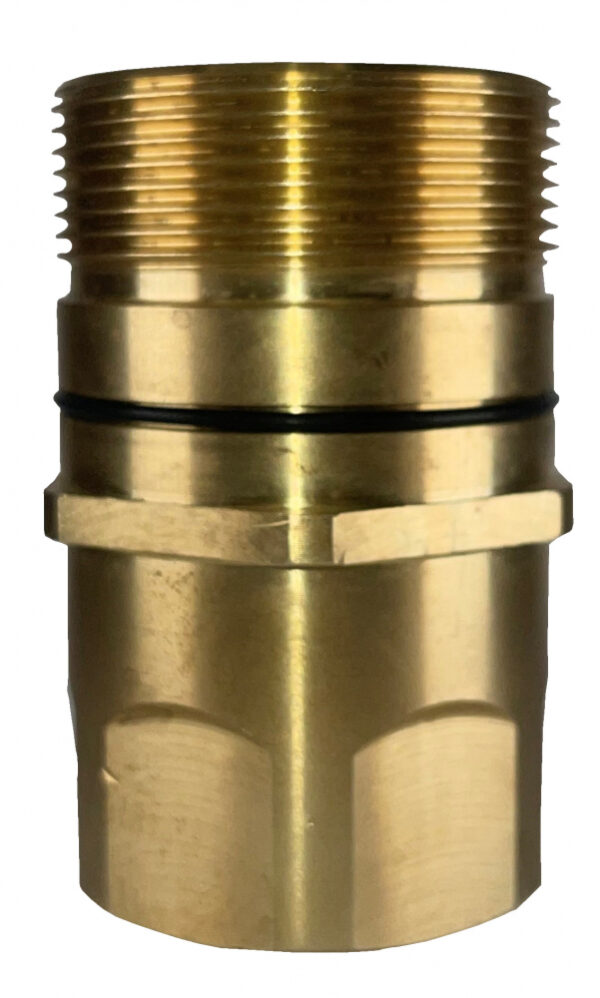

1 1/4″ Wingstyle plug with 1 1/4″ Female pipe threads
Weight | 1.4 lbs |
---|---|
Dimensions | 6 × 4 × 4 in |
Hydraulic Couplers | Wing Style |
Manufacturers | Dixon Valve |
Applications
Designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.
Specifications
Maximum Operating Pressure: 3000 PSI
Material: Brass
Body Size: 1 1/4″
Temperature Range: -40°F to 250°F
Burst Pressure: 12,000 PSI
Thread Size: 1 1/4″
$92.37 -6% $86.83
