Three Point Hay Bale Unroller for Tractors

Hydraulic Round Bale Unroller w/ Three Point Attachment

by Pierce Arrow Inc.

Please call store at 1-800-823-4937 to order this product.

Hay bale unroller will ship from factory via Truck freight.

Click Here to View: Bale Unroller Brochure

3-Point Bale Unroller Specifications:

• Hitch Type: Compatible with Category 1 or 2 Tractors
• Bale Handling: 5′ or 6′ Large Round Bales
• Capacity: 2,500 lbs
• Cylinder: 2″ X 12″ Tie Rod (3000 PSI)
• Warranty: 1 Year Manufacturer’s Warranty
• Shipping Weight: 385 lbs
• Dimensions: 64″ X 62″ X 30.5″

Common Questions and Answers About the Pierce Round Hay Bale Unroller:

Does the round bale unroller come with cylinder and hoses? Yes. It comes with a 2″ x 12″ tie rod cylinder, hydraulic connections including 1/2″ female breakaway coupler and PIONEER quick connects.

Does the round bale unroller have PIONEER quick connects? Yes

Does the unit have greased bolts and or grease fitting at all moving points? Yes. Grease zerks are found at all moving points.

Does the unit easily hookup to the quick tractor connect that are popular? We are currently testing this.

Will we have replacement parts available? Yes

Will the unit hook up to both Cat 1 / Cat 2? Yes

Will the hay unroller pick up 5’ and 6’ bales? Yes

Will the unit roll the whole bale out without waste? The solid “core” will be left (most farmers/ranchers will find a way to feed this as well).

What is the weight capacity of the hay unroller? 2,500 lbs.

What kind of grease do I use? We recommend multipurpose grease (RED)

How often should you grease the 3 point bale unroller? Every 3 months

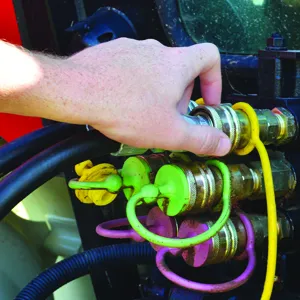

How do I hook up the hydraulic connections? Plug the male into the ½” female breakaway coupler

What are the sizes of the hydraulic connections? ½” breakaway coupler (3,000 PSI)

Will we drop ship direct to the dealer? Yes

What is the warranty? 1 year
